Shenzhen Eelink Communication Technology Co., Ltd.
Shenzhen Eelink Communication Technology Co., Ltd. >> 6-36V DC Motorcycle GPS Tracker Real-Time Tracking Cut Oil Positioning Tk121

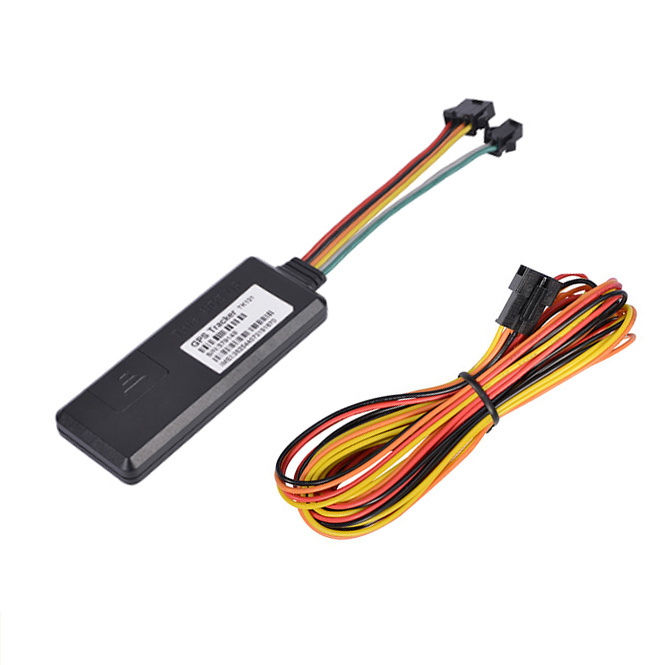

6-36V DC Motorcycle GPS Tracker Real-Time Tracking Cut Oil Positioning Tk121

6-36V DC Motorcycle GPS Tracker Real-Time Tracking Cut Oil Positioning Tk121
Price: US $ 21-26/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: TK121
Voltage: 12/ 24/ 36 VDC
GPS Accuracy: 5-15m
Battery Capacity: 70mAh
GPS Frequency: 1575MHz
Work Temperature: -20ºC~70ºC
Weight: 33 G
GSM Frequency: 850/900/1800/1900MHz

Product Description

PRODUCT FEATURES:

 Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
 Wide Input Voltage:6-36V DC.
 Double Module,GPS precise positioning with A-GPS, LBS positioning for assist.
 Uploaded by GPRS regularly, Real-time tracking and history route playback.
 Supports ACC status checking and vehicle status notifying.
 Built-in battery, Power disconnect alarm & Low battery alarm.
 Built-in Motion sensor ,Vibration, collision and falling alarm.
 GEO-fence alarm, speed & shift alarm.
 Remotely cut oil / electric by Relay.
 Extend GPIO port to add extension function(Need Customization).
 Multiple protocol support, can be integrated to platform of customers
 OTA upgrade firmware.



PLATFORM/APP:
 Real-time Tracking
 Route Play Back
 Cut Oil (Need Relay)
 Vibration Alarm
 Collision / Falling Alarm
 Speed Alarm
 Geo-fence Alarm
 Power Disconnect Alarm
 Low Battery Alarm


Voltage

12/ 24/ 36 VDC

Work Current

<30mA@12V

Standby Current

<10mA@12V

GPS Accuracy

5-15m

LBS  Accuracy

About 200 m
(Depending on density of base stations)

GPS Frequency

1575MHz

GSM Frequency

850/900/1800/1900MHz

Hot/warm/cold Start

<3s,<15s,<60s

Battery Capacity

70mAh

Dimensions (mm)

85.8(L)X30.6(W)X10.8(H)

Work Temperature

-20ºC~70ºC

Work Humidity

20%~80%RH

Weight

33 g



Scenarios:
TK121 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V, cutting oil , can be trackered on the platfrom through computer & smart phone.

Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers.

GPS Tracker Operating Principle:
There installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e.g. every 30s).It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.

Delivery:
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.



Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.

Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.

We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
