6.4V 3.2ah 20.48wh Lithium Battery

Name: 6.4V 3.2ah 20.48wh Lithium Battery
Brand: all-electronics-online.com
SKU: 728375812
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 7.8-9.5/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LiFePO4 Battery Packs
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Series Connection

Product Description

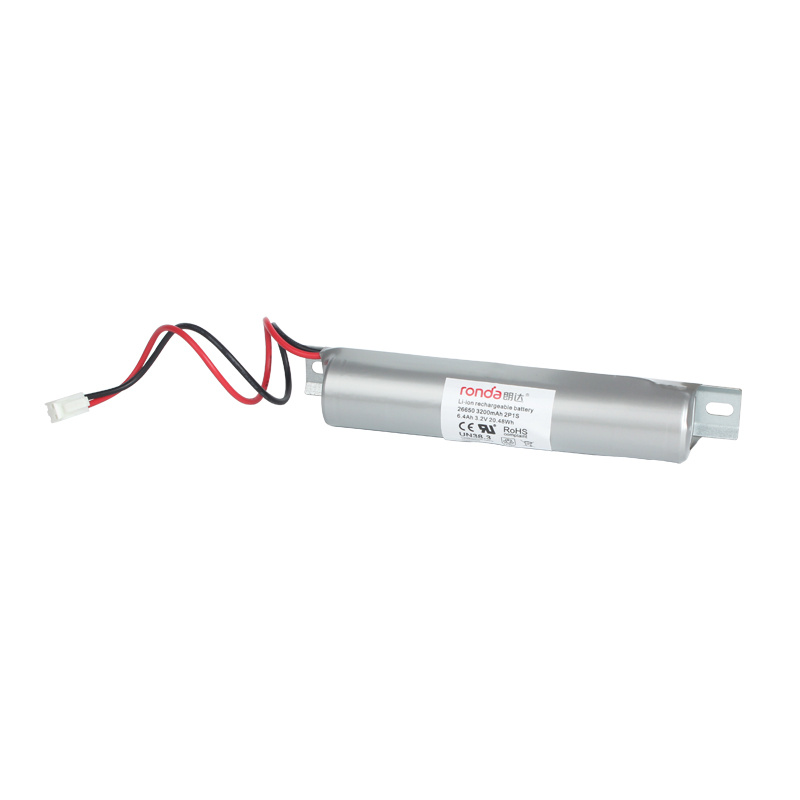

6.4V 3.2Ah 20.48Wh LED emergency lighting battery LiFePO4 battery pack HT lithium rechargeable battery emergency solutions replacement High temp. Ni-Cd Ni-MH battery

Key Specifications/Special Features:

Product discription:	LiFePO4 battery 6.4V 3.2Ah 20.48Wh
Application solution:	emergency lighting/energy storage/solar storage
Cell model:	3.2V 10.24Wh 3200mAh 26650
Electrical Configuration:	1S2P
Mechanical configuration	L2*1
Nominal voltage:	6.4V
Nominal capacity:	[email protected] discharging
Internal resistance:	≤ 35mΩ
Charge Voltage:	7.3±0.03V
Charge Current:
Constant Discharge Current:
Peak Discharge Current:	3.0 ItA
Discharge Cut-off Voltage:	5V
Dimension:	High:(135±0.25)mm Diameter:(26.2±0.3)mm
Weight:	about(270.0±2)g
Certifications:	UL,BIS, IEC, UN38.3,RoHS,REACH
Cycle Life:	>1500 cycles by IEC standard
Operation temp.
Standard Charge:	0ºC~60ºC
Standard Discharge:	-20ºC~70ºC
Quick Charge:	10ºC~60ºC
Quick Discharge:	-10ºC~70ºC
Cell body temperature is not over 80ºC
wire & connector:	UL1015 20# 100mm;JST-VHR-2P
Case:	/

Storage performance	Items	1 month	3 months	6 months
	Capacity retention rate	≥95%	≥90%	≥85%
	Capacity recovery rate	≥97%	≥93%	≥90%
	Stored cell with 50% SOC at an ambient temperature 25ºC.
	Capacity recovery	≥98.5%	≥95%	≥93%
Proposed to charge/discharge cell one time per 6 months, if it needs to store for long time.

Founded in 2000, Ronda is an ISO9001 certified battery design, development and manufacturing company in south China, specializing in Lithium-ion phosphate (LiFePO4), Li-ion, Ni-CD and Ni-MH rechargeable batteries. Now, Ronda employs over 1000 workers. It owns 80, 000 factory and advanced facilities, which can produce 700, 000PCS cells per day.

Ronda batteries deliver high temperature, high rate discharge, low internal resistance, low self discharge, good consistency performance and provide long cycle life. They conform to the IEC standard and got CB/UL/KC/BIS approval. Ronda offers a variety of power solutions to a wide range of applications such as emergency lighting, portable lamps, personal care products, power tools, electric toys, medical devices, solar power systems and UPS etc. Whatever your development budget and timescales, Ronda can deliver a power solution to give your device a competitive advantage.

Ronda always focuses on innovation and technology. It has its own UN38.3 safety testing lab and IEC62133 testing lab. Since its foundation, Ronda has established long term cooperation with Harbin Institute of Technology and set up the associated Lab, which provide solid foundation on research and development to provide reliable and safe batteries to our customers.

Welcome to visit our website for more information.

http://www.ronda-battery.com/
