| Prod Model: |
PT-ID011 |
| Pressure: |
-100kpa^^0~1kpa^^60MPa^^100MPa |
| Zero Output: |
3mv |
| Full Scale Output: |
4~20madc |
| Overload Capacity: |
150% |
Product Description
Introduction

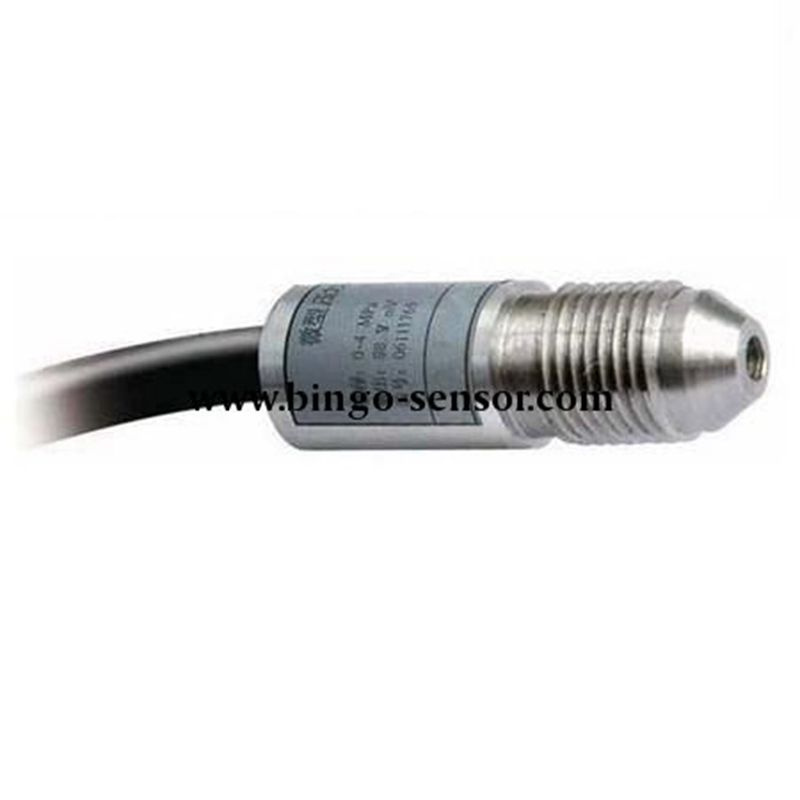

PT-ID011 features matching good compatibility and high reliability, high precision. Its measured life expectancy has reached 107 pressure cycles, the average time between failures for more than 105 hours, and can also be used to measure low-100kPa negative pressure, accuracy, and positive pressure test the same, HQ100 Series range extended to 50Pa, with better sensitivity and more high resolution. Excellent dynamic performance and value for money, is the best choice for high, medium and low voltage measurements.
Technical Parameter
| Pressure range | -100KPa^^0~1KPa^^60MPa^^100MPa |
| Zero output | V0≤±3mV |
| Full scale output | VFS=100mV±25%\VFS=50mV±30% \VFS=10mV±30% |
| Output | 4~20mADC(two wire),
0~5VDC(three wire or four wire),
0~10mADC(three wire or four wire) |
| Overload capacity | 150% |
| Power supply | Constant current:1~4mA;
constant voltage:6~9VDC |
| linearity | <±0.1%FS |
| Repetition | <±0.05%FS |
| Delay | <±0.05%FS |
| Input impedance | 0.6~6KΩ |
| Compensation temperature | -10ºC ~+70ºC |
| Working temperature | -40ºC ~+85ºC |
| Insulation resistance | >100MΩ/50V |
| Insulating strength | >500MΩ/50V |
| Pressure connection | M20×1.5,M12×1,G1/4,G1/2,special connector customized |
| Electrical connection | cable or connector |
| Medium | Liquid compatible with 316LSS |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExiallCT5 |
Our service:
1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.
If you need more information about the product, click here: www.bingo-sensor.com
