| Prod Model: |
YET406+YET112-6 |
| Product Name: |
6 Multi Channel Universal Receiver Switch |
| Decode: |
Universal, Fixed Code, Learning Code, Rolling Code |
| Memory Capacity: |
200, 400, 1000 Codes |
| Frequency: |
315,433,868 MHz |
| Channel: |
6 |
| Use For: |
Liftmaster, Nice Flo, Hormann,Faac, Sommer, Clemsa |
| Application: |
Gate Barrier Security Alarm Home |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Voltage: |
12V 24V |
| Battery Type: |
12V 24V Power |
Product Description

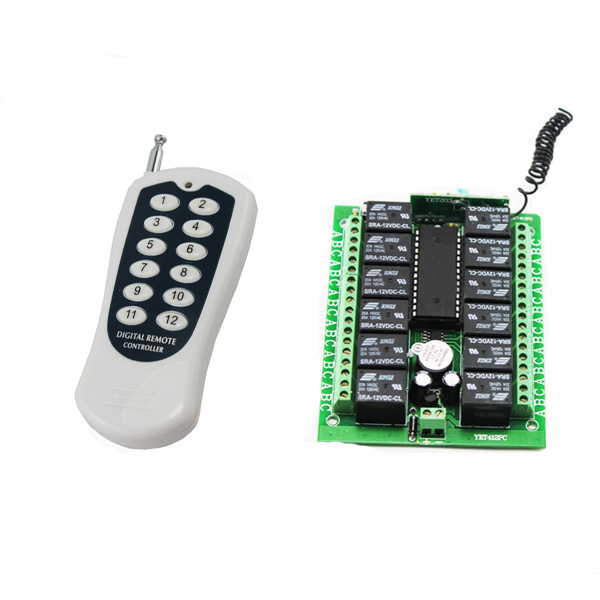

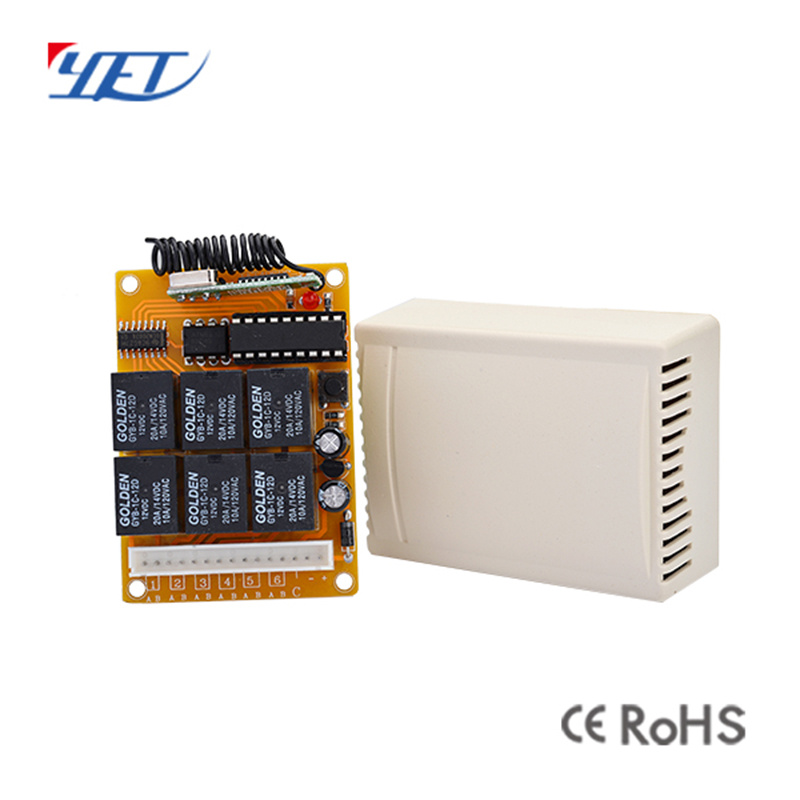

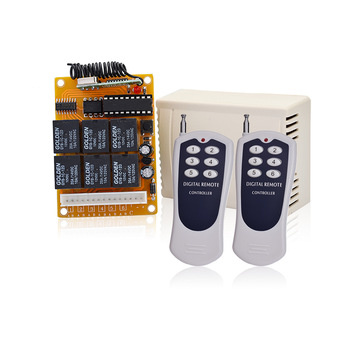

6 Channel Remote Control 6 Channel Long Range Remote Control and Receiver Kit YET406+YET112-6
Product description1~12 Chanel Gate Door Opener Transmitter Receiver Copy Remote Control 433mhz For Sale
1. Brief introductionOur factory design and produce the twelve channel wireless intellect receiving control what can provide switch signal to the twelve relays, so it can meet many requirements such as: control motor's corotation and reversal; the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however, it should learning again by the owner if want to obtain the right of use.2. The way of outputA. Signal point start -- press the first button on the transmitter to learnB. Signal interlock-- press the second button on the transmitter to learnC. Signal self-locking -- press the fourth button on the transmitter to learn3. Learning way and steps1. Press learning key of receiver and buzzer tweet, indicate enter into the status of learning 2. Press the corresponding button of the transmitter to learn corresponding output way, indicate learning success as the buzzer tweet 'de de'. Receiver automatically exit learning state if you do nothing in 32 seconds.4. Delete memory messageKeep pressing the learning key of the receiver, the buzzer keep tweeting about 7 seconds then stop, indicate success to delete the memory message.5. Main Technique Data| Working voltage | DC12V/ 24V (optional) |
| Static working current | ≤7mA |
| Working temperature | -40ºC - +80ºC |
| Receiving sensitive | ≥-105dBm |
| Working frequency | 315MHz,433MHz (optional) |
| Relay capacity | 10A 250VAC or 10A 30VDC |
| Receive the type of encoding | Learning code, Fixed code, Rolling/Hoping code |
| Maximum storage for transmitter | 3pcs of learning or fixed code |
| Size | 100mm*80mm*27.5mm |

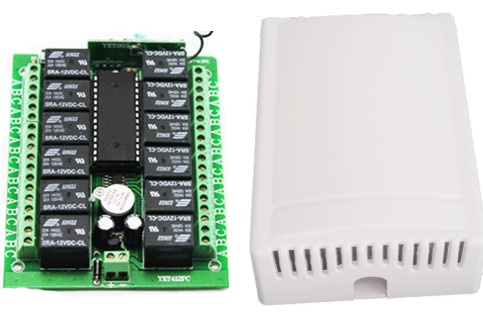

Transmitter Receiver kit
Related 4 channel receiver transmitter kit
Spec.| Model no. | 404pc |
| working frequency | 315,433,868mhz |
| Power | 12V , 24V,220V |
| channel | 4 channel |
Certification CE ROHS
Packing
