| Prod Model: |
6-Dzm-20 |
| Color: |
Black |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

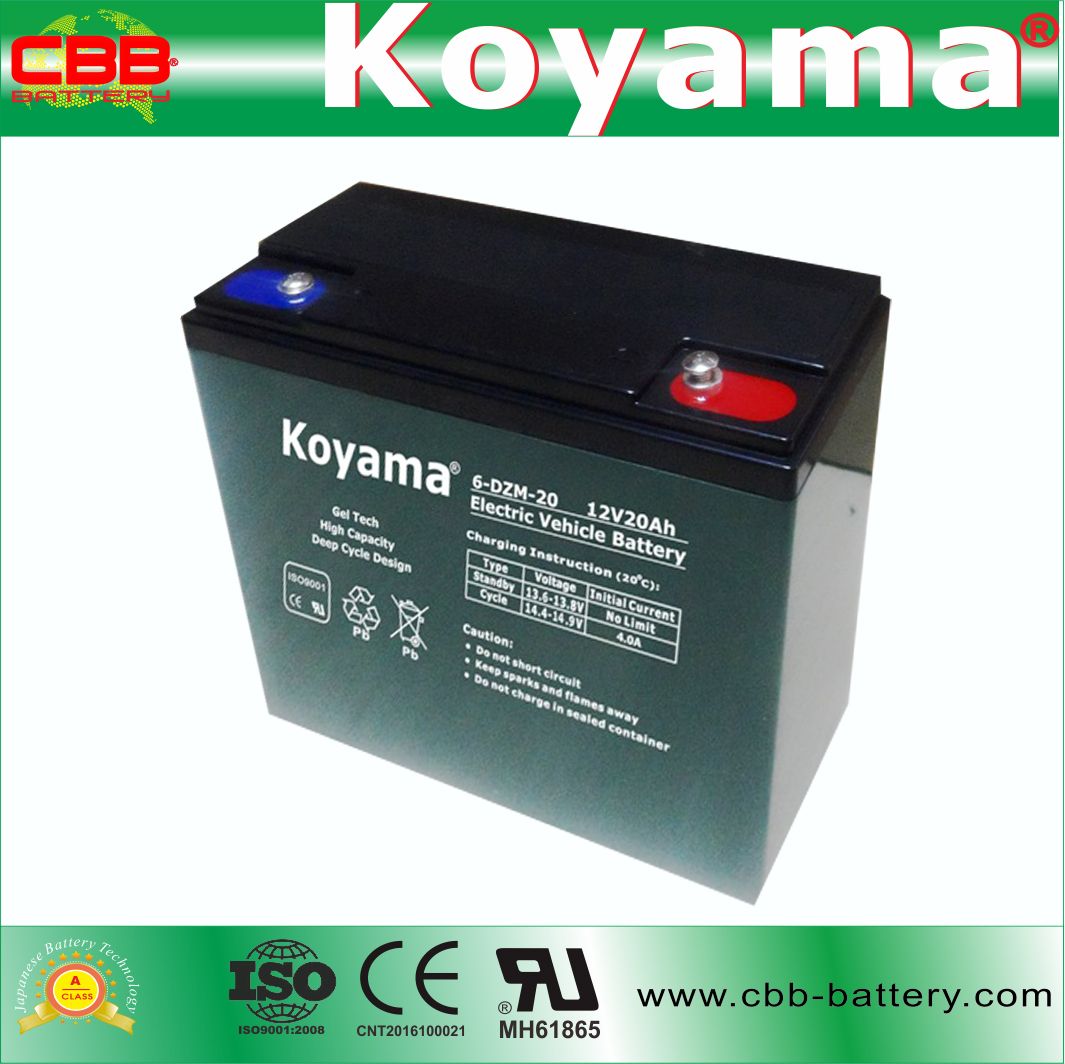

Electric bike battery
6-DZM-20
12V 20ah
Size: 181*77 *170*171mm
Weight: 7kgs
Product feature:
1. Large capacity, High specific energy: Made by special technology and material, capacity is more than 100%, specific energy reach 35-38wh/kg.
2. Low self-discharging: Made by high grade alloy grid, pure electrolyte, low self discharging and water loss.
3. Long durability: It can be used for 360 times at the temperature of 25, if maintained regulary, it can be used for 650 times.
4. Reliability: The streamlined valve is specially designed in order to make the battery durable and reliable.
5. Airtight structure: Could use battery in any direction(except inversion).
6. Excellent design: It is not only with the merit of seal valve regulation, but also with the advantage of maintenance. The special design of the extraction makes it easy to maintain and prolongs the durability by 50-100% or longer.
7. Various ways of use: Battery could be floating use, also be cycling use.
8. Recommended charging methods: 3-step charging.
Use and maintenance of products:
Battery: Red for positive polarity, blue for negative polarity. Battery should be series connection. The connection between battery pack and charge and discharge line is same polarity connection.
1. Batteries leave factory with charged so that clients could install and use directly. In order to remedy the capacity slef-discharge in the storage and transportation, new battery need to charge 4-8 hours to use.
2. Storage batteries should be installed by professionals.
3. We suggest charge temperature is 15-30. (Low temperature could reduce the battery's capacity. )4. Storage: Battery should be stored in 0-40 and maintain good ventilation. Avoid direct sunlight and keep away from heat.
Three kinds charge methods:
1. Use suitable charger, when red light change green, then continue to charge 4 hours, the battery full charge; After battery deep discharge(80% discharge capacity), charge time should be more than 12 hours.
2. Constant voltage current-limiting charging methods: Constant voltage 14.8V/pcs, charging current limiting values 0.15-0.20CA, charging hour 6-12 hours.
3. Constent Current chraging method: Charging with 0.10-0.20CA to battery voltage 14.8V/pcs(36V), battery pack 44.4V/set, then charging 4.5-6 hours with 0.05CA current could be full charge.
Discharge:
1. Discharge protection voltage should be more than 10.8V/pcs, Discharging protection current should be less than 1.5CA.
2. Batteries should be charged in time.
3. When vehicles don't use for a long time, batteries should be in full charge storage, and charge every 2 months.
Typical Applications
These products are widely used by electric bikes, electric motorcycles, electric scooters, electric tricycles, hybrid electric vehicles, power tools, Motorcycle, Electro-tricycle, E-bike, Scooter, Golf cart.
| Model NO. | Nominal Voltage (V) | Rated Capactiy (Ah) | Dimensions(±2mm) | Weight (Kg) ±5% | Terminal Type |
|
| Length | Width | Height | Total Height |
|
| 3-DZM-10 | 6 | 10 | 151 | 50 | 94 | 101 | 1.6 | F1 |
| 6-DZM-7 | 12 | 7 | 152 | 65 | 94 | 100 | 2.2 | F2 |
| 6-DZM-5 | 12 | 5 | 151 | 51 | 95 | 101 | 1.7 | F2 |
| 6-DZM-10A | 12 | 10 | 152 | 99 | 95 | 101 | 4.2 | F2 |
| 6-DZM-12 | 12 | 12 | 152 | 99 | 98 | 101 | 4.4 | F2 |
| 8-DZM-14 | 12 | 14 | 201 | 113 | 99 | 102 | 6.5 | F2 |
| 6-DZM-20 | 12 | 20 | 181 | 77 | 170 | 171 | 7 | T2 |
| 6-DZM-24 | 12 | 24 | 175 | 165 | 126 | 126 | 9.6 | T3 |
| 6-DZM-28 | 12 | 28 | 318 | 80 | 126 | 126 | 9 | T2 |
| 6-DZM-30 | 12 | 30 | 224 | 95 | 175 | 175 | 10.1 | T3 |
| 6-DZM-35 | 12 | 35 | 225 | 107 | 175 | 175 | 11 | T3 |
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
