6-Evf-55 (12V55AH/10HR) Deep Cycle Battery

Name: 6-Evf-55 (12V55AH/10HR) Deep Cycle Battery
Brand: all-electronics-online.com
SKU: 700445872
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V55AH/10HR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F9
Screw Stem:	M6 Stud
Type:	Lead-Acid Batteries
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Usage:	Low Speed Electric Vehicles,Golf Cart, Travel Car.

Product Description

KaiYing Power Supply & Electrical Equip Co.,Ltd

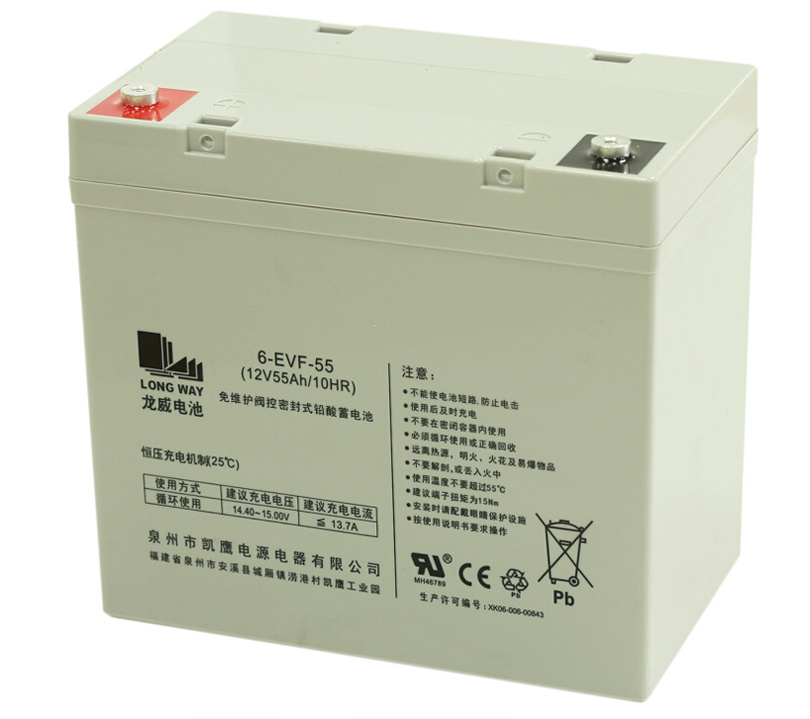

LONG WAY 6-EVF-55(12V55AH/10HR) is one of the Deep Cycle series of Quanzhou Kaiying Power Supply & Electrical
Equip Co.,Ltd.The series adopt new materiel,new technology,new process,with higher weight ratio of energy and good resistance to vibration performance ,a good
consistency,high charge rate,deep discharge recovery,low self discharge,
sealed and maintenance free.It is quiet suitable for using as
electrical system of electric road vehicles, applications widely in low speed electric vehicles,golf cart, travel car,old scooter,electrical
wheel chair,electric sanitation vehicles and police patrol car etc.

Specification:

Nominal Voltage(V)			12V
The Open Circuit Voltage(V)			12.90-13.32V
Cells per Unit			6

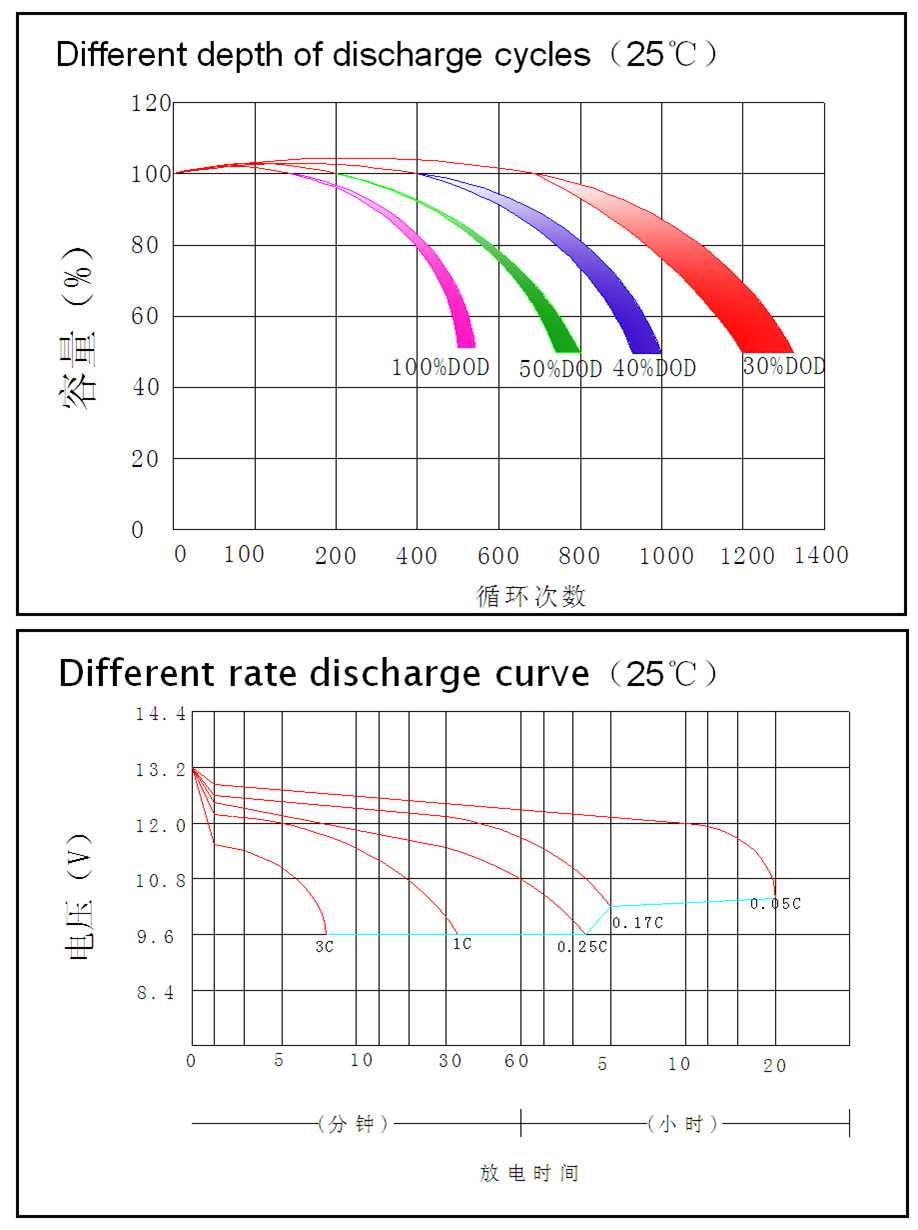

Discharge Capacity at 25ºC(AH))	1hr-rate(30.25Ato1.60Vpercell)		30.25AH
	2hr-rate(19.8Ato1.60Vper cell)		39.60AH
	3hr-rate(13.75Ato1.70Vpercell)		41.25AH
	5hr-rate(9.35Ato1.75Vper cell)		46.75AH
	10hr-rate(5.50Ato1.75Vper cell)		55.00AH
Average weight/kg			17.1kg
Container material			ABS(UL94-HB)
Charge voltage/V		Float charge(V)	13.80----14.10V
		Cycle(V)	14.40---15.00V
Maximum discharge current/A			275A
Reasonable charge current/A			11.0A
Terminal type			F9/M6 Stud
Storage performance at 25ºC(self discharge rate)			below3%per month
Operate temperature range			Discharge:-15~50ºC Charge: -15~40ºC Storage: -15~40ºC

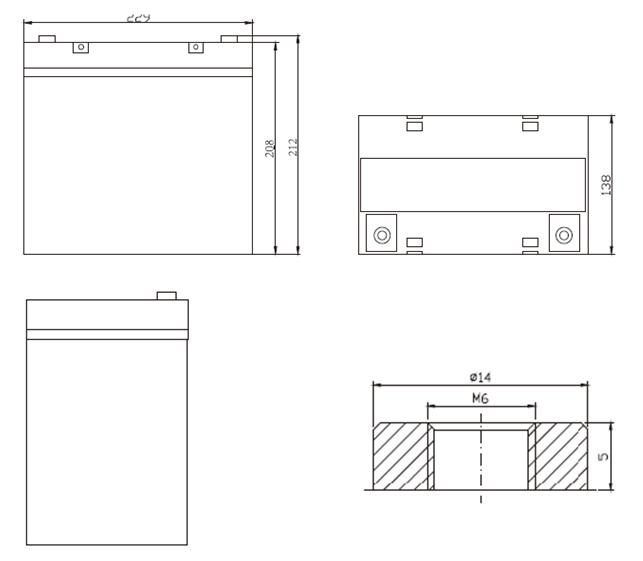

Dimensions: L229±2mm;w138±2mm;H208±2mm;TH229±2mm

__________________________________________________________________________________

Address:KaiYing Industrial, ChengXiang Town, AnXi, QuanZhou, Fujian, China

Tel:0595-68782266 Fax:0595-68782222

Web:www.longwaybattery.com

Statement :
The information is just a profile of product,not a guarantee of any battery.The parameters of battery could be modified independently without notifying.Please keep in touch with KaiYing to acquire the newest
information.
