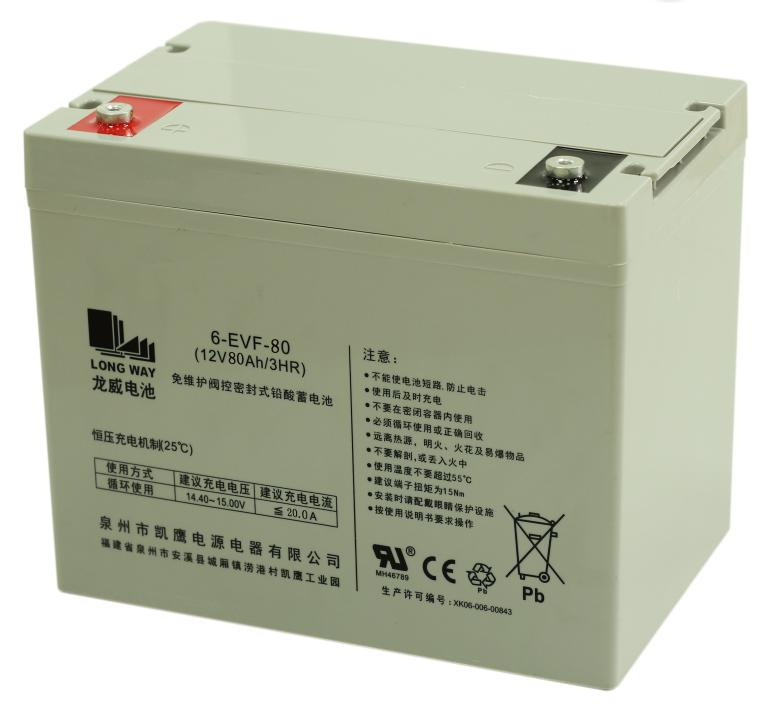

6-Evf-80 (12V80AH/3HR) Deep Cycle Battery

Name: 6-Evf-80 (12V80AH/3HR) Deep Cycle Battery
Brand: all-electronics-online.com
SKU: 700458152
Availability: InStock
Rating: 4.4 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V80AH/3HR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F10/M6 Stud
Type:	Lead-Acid Batteries
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Usage:	Low Speed Electric Vehicles,Golf Cart, Travel Car,

Product Description

KaiYing Power Supply & Electrical Equip Co.,Ltd

LONG WAY 6-EVF-80(12V80AH/3HR) is one of  the Deep Cycle series of Quanzhou Kaiying Power Supply & Electrical
Equip Co.,Ltd.The series adopt new materiel,new technology,new process,with
higher weight ratio of energy and good  resistance to vibration performance ,a good consistency,high charge rate,deep discharge recovery, low self discharge,sealed and maintenance free.It is quiet suitable for using as  electrical
system of electric road vehicles, applications widely in low speed
electric vehicles,golf cart, travel car,old scooter,electrical wheel chair,electric sanitation  vehicles and police patrol car etc.

Specification:

Nominal Voltage(V)		12V
The Open Circuit Voltage(V)		12.90-13.32V
Cells per Unit		6
Discharge Capacity at 25ºC(AH)	1hr-rate(58.40Ato1.60Vper cell)	58.40AH
	2hr-rate(38.00Ato1.60Vper cell)	76.00AH
	3hr-rate(26.67Ato1.70Vper cell)	80.00AH
	5hr-rate(20.00Ato1.75Vper cell)	100.0AH
Average weight/kg		26.0kg
Container material		ABS(UL94-HB)
Charge voltage/V	Float charge(V)	13.80----14.10V
	Cycle(V)	14.40---15.00V
Maximum discharge current/A		400A
Reasonable charge current/A		16.0A
Terminal type		F10
Storage performance at 25ºC(self discharge rate)		below3%per month
Operate temperature range		Discharge:-15~50ºC Charge: -15~40ºC Storage:-15~40ºC
Screw type		M6

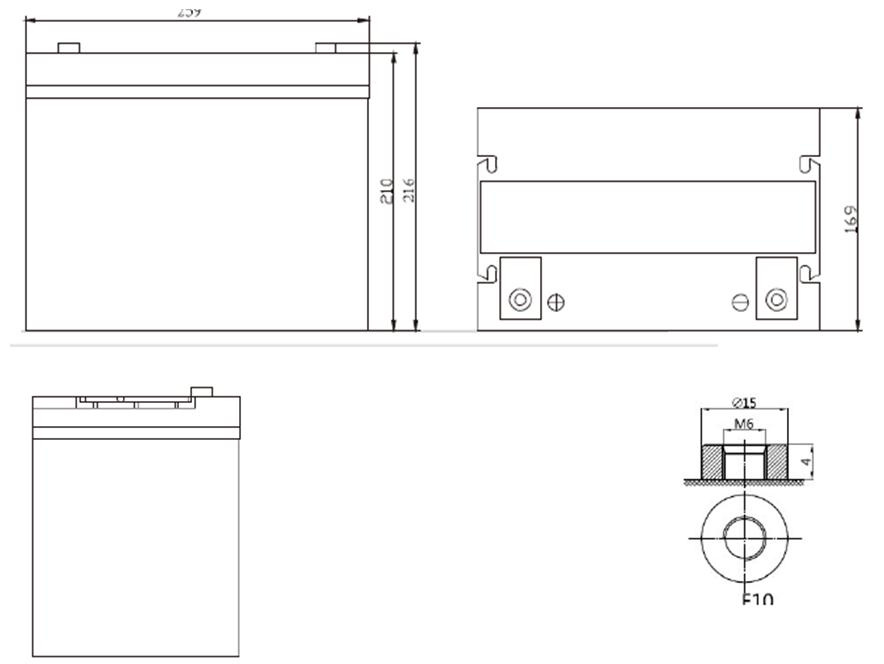

Dimensions: L260±2mm;W168±2mm;H208±2mm;TH212±2mm

__________________________________________________________________________________

Address:KaiYing Industrial, ChengXiang Town, AnXi, QuanZhou, Fujian, China

Tel:0595-68782266 Fax:0595-68782222

Web:www.longwaybattery.com

Statement :
The information is just a profile of product,not a guarantee of any battery.The parameters of battery could be modified independently without notifying.Please keep in touch with KaiYing to acquire the newest information.

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
