6-Fiber Distribution Cable, Ningbo Fiber Optic Cable.

Name: 6-Fiber Distribution Cable, Ningbo Fiber Optic Cable.
Brand: all-electronics-online.com
SKU: 834463375
Availability: InStock
Rating: 4.7 (42 reviews)

Price:	Negotiable/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	distribution cable
Type:	Single-mode Fiber
Brand:	Geyida or OEM
Sheath Material:	LSZH

Product Description

Indoor tight buffer Distribution Fiber optic Cable using for data center
Application:
1. Used in pigtails and patch cord
2. Used in optical connections in optical communication equipment rooms and optical distribution frames
3. Used in optical connections in optical apparatus and equipments
Features:
1. Good mechanical and environment characteristics
2. Flame retardant characteristics meet the requirements of relevant standards
3. The mechanical characteristics meet the requirements of relevant standards
4. Soft, flexible, easy to splice, and with big capacity data transmission
5. Meet various requirements of market and clients.

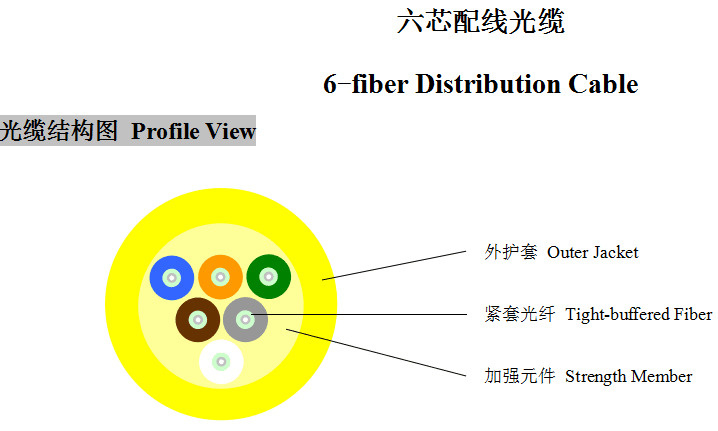

PICTURTE OF 6 FIBER Distribution cable

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	/Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	/Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λ_cc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

Cable Parameters

Items		Specifications
Fiber Count		6
Tight-buffered Fiber	Dimension	850±50μm
	Material	PVC
	Color	Blue,Orange,Green,Brown, Grey,White
Strength Member		Kevlar
Outer Jacket	Dimension	5.2±0.2mm
	Material	LSZH
	Color	Yellow

Mechanical and Environmental Characteristics

Items	Unite	Specifications
() Tension(Long Term)	N	300
() Tension(Short Term)	N	600
() Crush(Long Term)	N/10cm	300
() Crush(Short Term)	N/10cm	1000
() Min. Bend Radius(Dynamic)	mm	20D
() Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-10~+50
Operating Temperature	ºC	-20~+60
Storage Temperature	ºC	-20~+60
