| Prod Model: |
YJRSP0010 |
| Model No.: |
Maiyu |
| Peak Load: |
DC 12V / 23A ;24V/11.5A; |
| Max. Continuous Load: |
AC:125V/16A 250V/10A; DC:12V/20A 24V/10A. |
| Material: |
ABS Plastic Panel |
| Panel Size: |
182*120(mm) |
| Drill Size: |
156*95(mm) |
| Materials: |
Anti-UV ABS Plastic Face panel |
| Function: |
on/on,on/off,on/on/off,Auto off |
| Cover Thickness: |
Between 1/16'' and 1/4'' |
| Certifications: |
RoHS, Ce |
| Usage: |
Toys |
| Standard: |
Standard |
| Lamp: |
With Lamp |
| Certification: |
CE |
| Condition: |
New |
| Color: |
Red,Green,Blue,Orange,Gray,Grey,White,Yellow |
Product Description

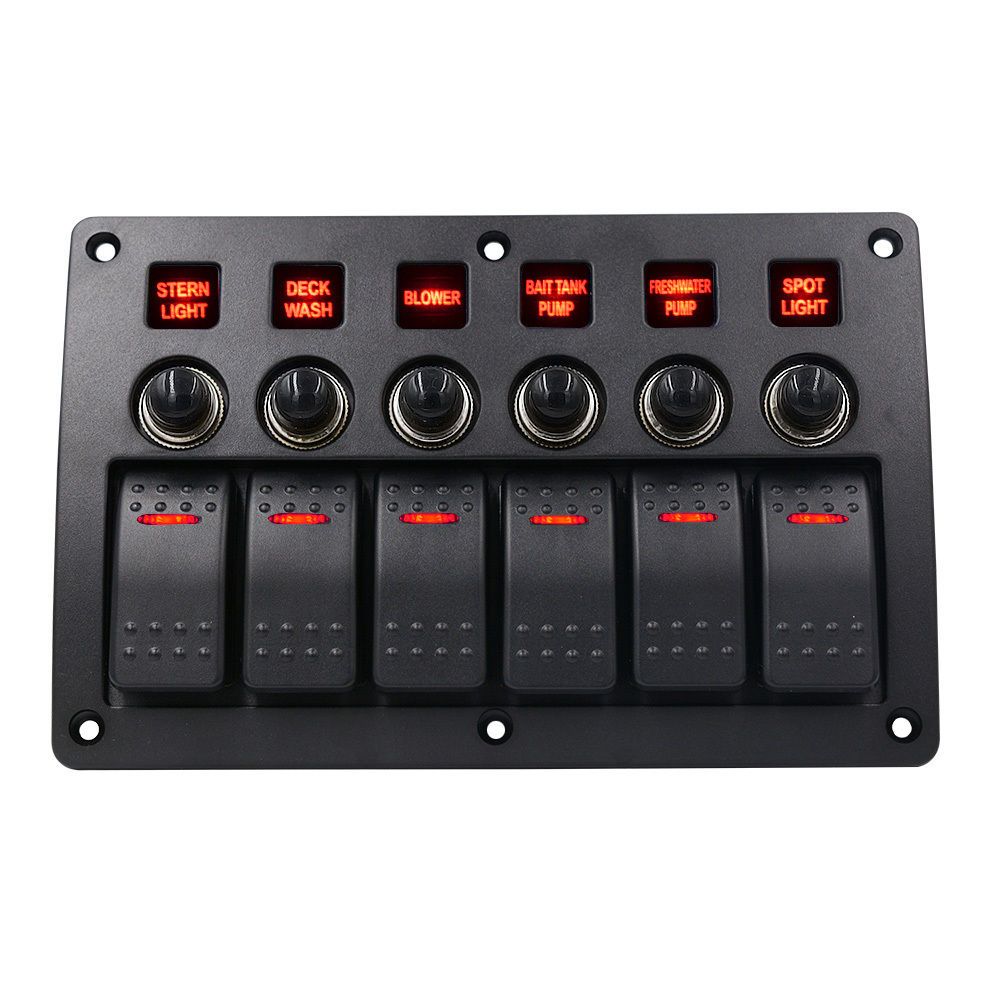

Description:Product Name: 3PIN with light 6 with lens combination panel switch
Product Type: CS-528A1
Product weight: 420.4g
Product gross weight: 488.9g
Product Size: Length: 18.3cm Width: 12cm Height: 7.5cm
Hole size: length: 15.3cm wide: 8.6cm
Product Material: ABS, PC, PBT resistance to high and low temperature anti-corrosive environmentally friendly materials
Product Color: Black
Light color: red
Input voltage: DC12V / 24V
Maximum power: 120-260W
Working temperature: -25 ºC -80 ºC
Waterproof rating: IP65
Certificate: CE / ROHS / UL
Product accessories: distribution of six self-tapping screws, functional stickers, anti-scratch pads
Product use: do headlamp switch, fog light switch, depending on the wide light switch, car refrigerator switch, car vacuum cleaner switch, etc.
Use: suitable for, steamships, yachts, motorhomes, buses and other high-end large-scale travel tool installation and use
Product advantages:
1. The product is a 6-bit switch panel with 6 switches, which can control the switch status of six appliances at the same time
2. The product input voltage is 12 / 24V, 12 / 24V all the boat can be installed, the use of a very wide range
3. Products for the ABS, PC, PBT resistance to high and low temperature anti-flame retardant environmentally friendly materials, the lowest temperature -25 ° maximum temperature is 80 ° environment
4. Product with overload protection, when a single switch control of the electrical device than the corresponding overload protection of the maximum input current will automatically power off,
Packaging & Delivery
Packaging Details: | 50pcs in a box, normal carton |
|---|
| Delivery Detail: | 7-14days after confirm payment |
|---|
.
Car Boat Offroad 12V 20A 24V Bar Rocker Toggle Switch 3 Pin Red LED Lights
Descriptions :
ON - OFF switch
Black hard surface rocker.
Rate: 20A 12V or 10A 24V
Color: Black
Size (L x W x T): 50 x 44 x 20 mm
You are bidding on one brand new Rocker Switch On/Off 20 Amp 12 Volt with Orange Light.
This switch has many different uses. It is commonly used for off road and marine vehicles.
Single Pole Single Throw ON - OFF,ON-OFF-ON switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper light.
Single lower light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.
