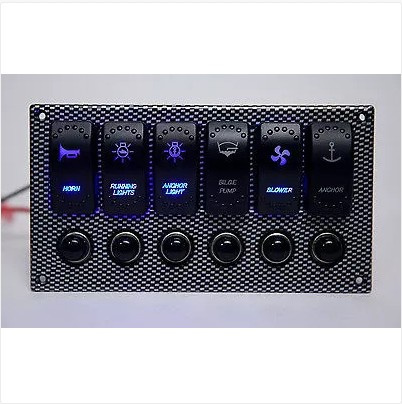

6 Gang Printing Panel Laser Etched 2LED Rocker&Circuit Breaker Waterproof Switch

Name: 6 Gang Printing Panel Laser Etched 2LED Rocker&Circuit Breaker Waterproof Switch
Brand: all-electronics-online.com
SKU: 766757435
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 16.5-19/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Material:	ABS Plastic Panel
Panel Cutout Dimesion:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Packaging & Delivery

Packaging Details:	40/60 sets in a box, normal cart ,1set in blister
Delivery Detail:	within 10days or depand on quantity

Sleek&Contemporary design,perfect for your machine High quality,Made of aluminium
With rubber seal-cap to keep it water-tight,best for marine
Overload protection by Circuit Breaker, SplashProof,anti-corrosion
Easy to install,can be installed horizontally or vertically(Horizontally optional)
Suitable for both 12V and 24V systems Panel is pre-wired, Complete with a 45 piece label set (for 45 different applications) Includes 6 x Stainless Steel Screw

Product Description

Specification

Model:8-30v Waterproof LED Backlight 6 Gang Laser Etched 2 LED Rocker Switch Panel
Material Description:High quality ABS-()
Installation:Pre-wired
Switches Available:6 Gang
Amp Rating per circuit:15amp Max
Rocker Switch:6
Breaker:6(5A x 2;10A x 2;15A x 2)
Loop Circuit:ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating:AC 125V 16A,250V 10A;DC 12V 20A,24V 10A
electric Strength:AC 1500V 1minute
Operating Temperature:-25degree to 80degree
Electrical Life:10000 make and break cycles at full load
IP Rating:IP68
Dimensions:(Width)x(Height)x(Depth)mm

Package

1 x 12V/24V LED Laser Etched 2 LED Rocker ROCKER SWITCH printed PANEL
1 x pre-printed labels

*************************************************
