6 Gang Rocker Switch Panel/Cigarette Socket/USB Charger Panel for Marine/Boat

Prod Model:	MY-6RW-1011/2013/4010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

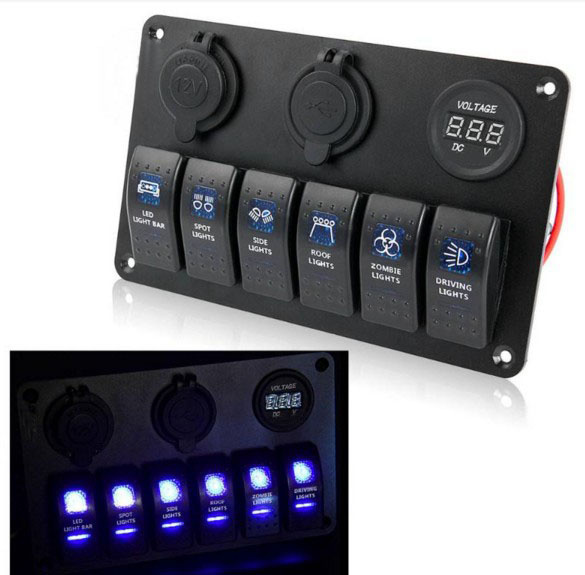

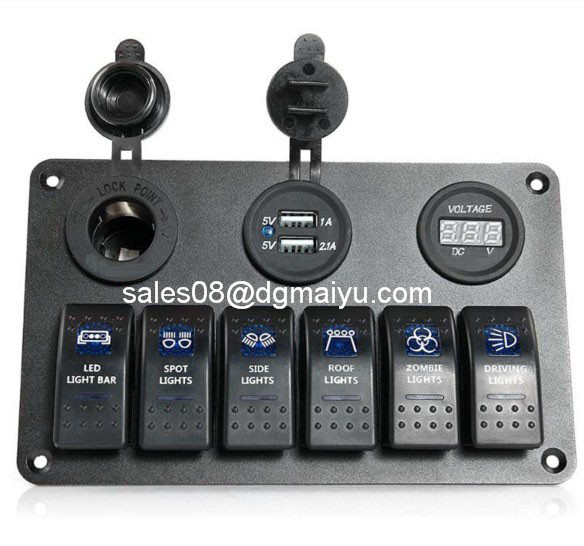

Product Name: ON-OFF 6 rocker switch with double USB cigarette base voltage meter multifunctional panel switch

Product description:

Easy to install, can be installed in horizontal or vertical (horizontal optional).

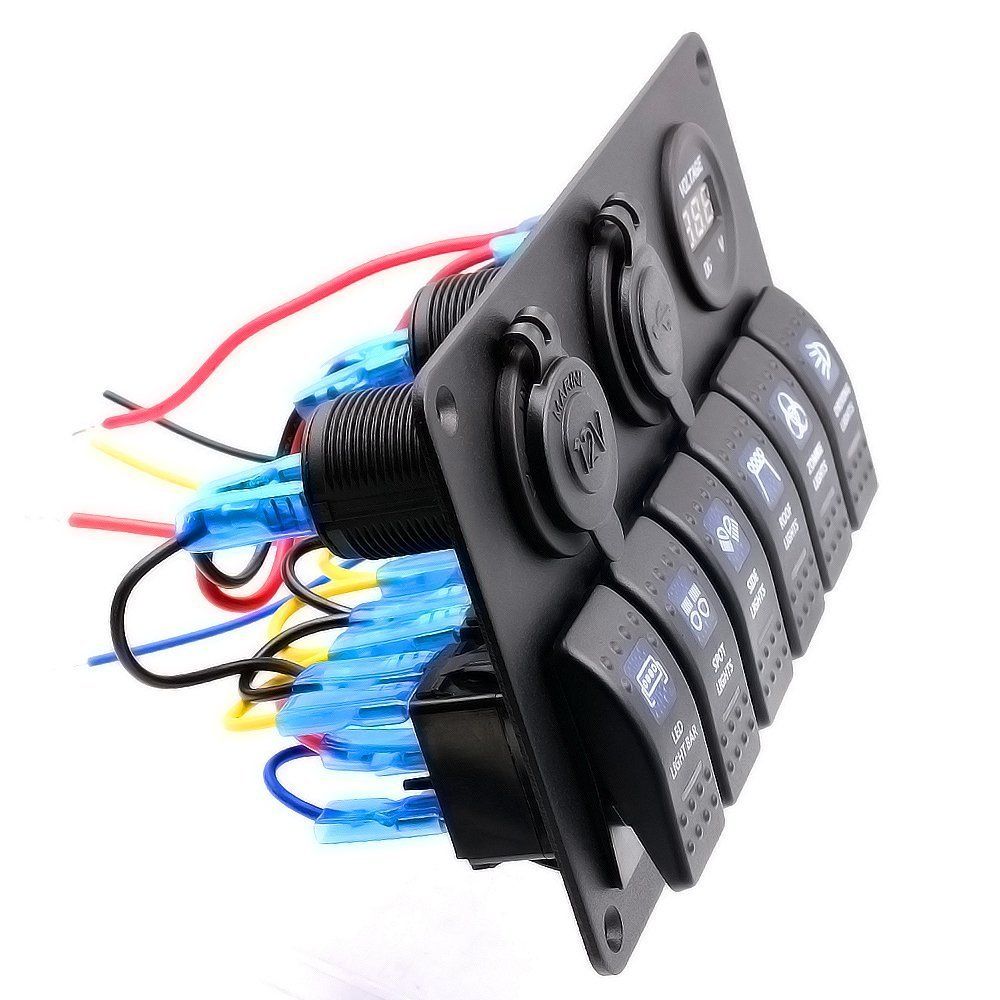

Suitable for 12V and 24V system panel pre wiring, including stainless steel screws.

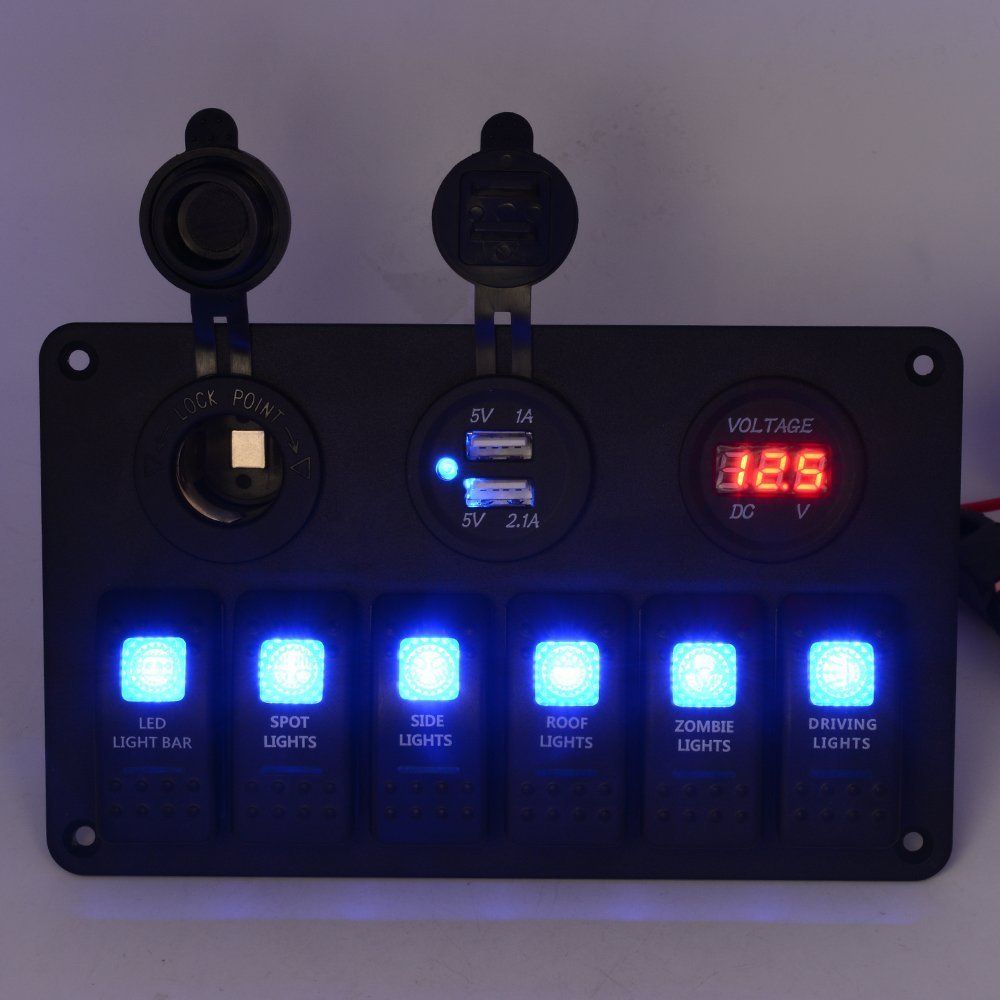

Model: 8 - 30V waterproof LED backlight 6 post laser etched 2 LED rocker switch panel

Material description: high quality ABS

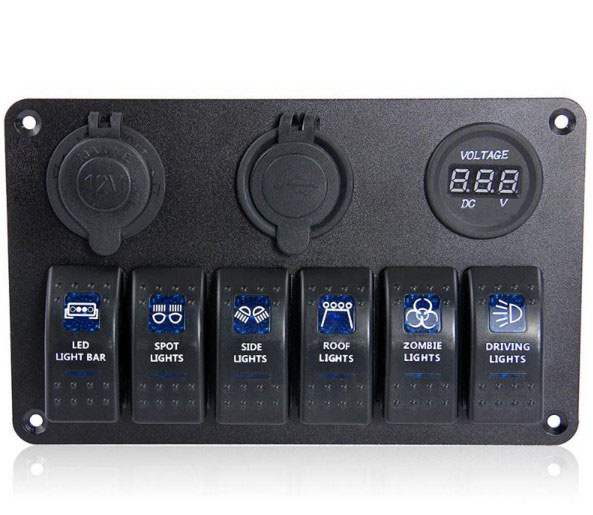

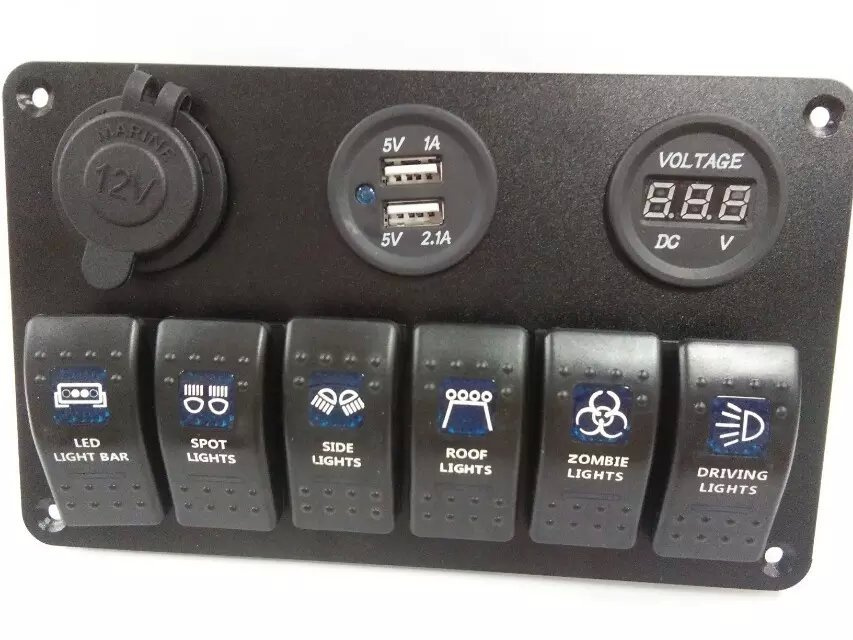

Rocker switch: 6 (LED lights, spotlights, side light, top light, zombie lights, running lights)

Double USB:1 (LED blue indicator)

The cigarette lighter socket (can not be directly used for cigarette): 1

Voltage meter: 1 (red / Blue optional)

Shift switch function: ON-OFF (if you need to match the self reset switch, or other functions of the switch,
please contact customer service)

The rocker switch PIN foot: 5Pin (Pin pin number according to the switch function is optional)

Switch system: waterproof sealed rocker switch

Rating: 125V 16A 250V, 10A 12V; DC 20A 24V, 10A AC

IP protection level: IP68







*************************************************
