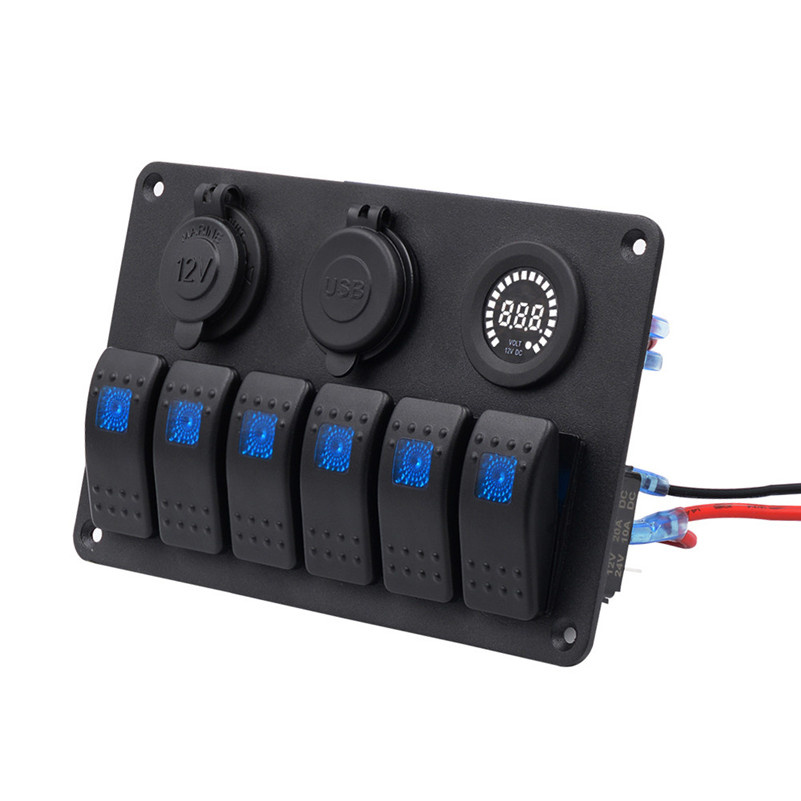

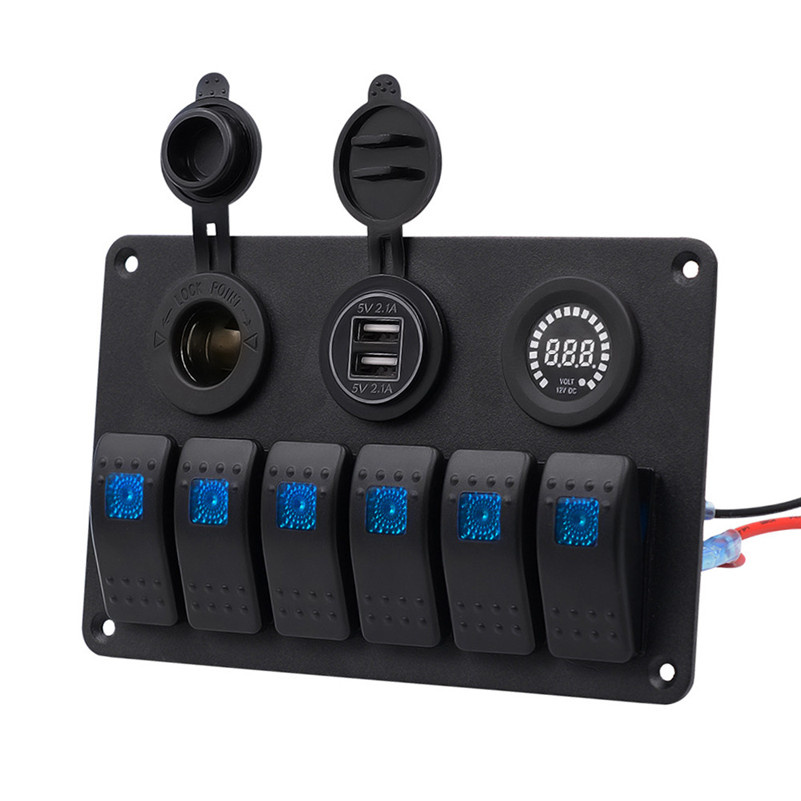

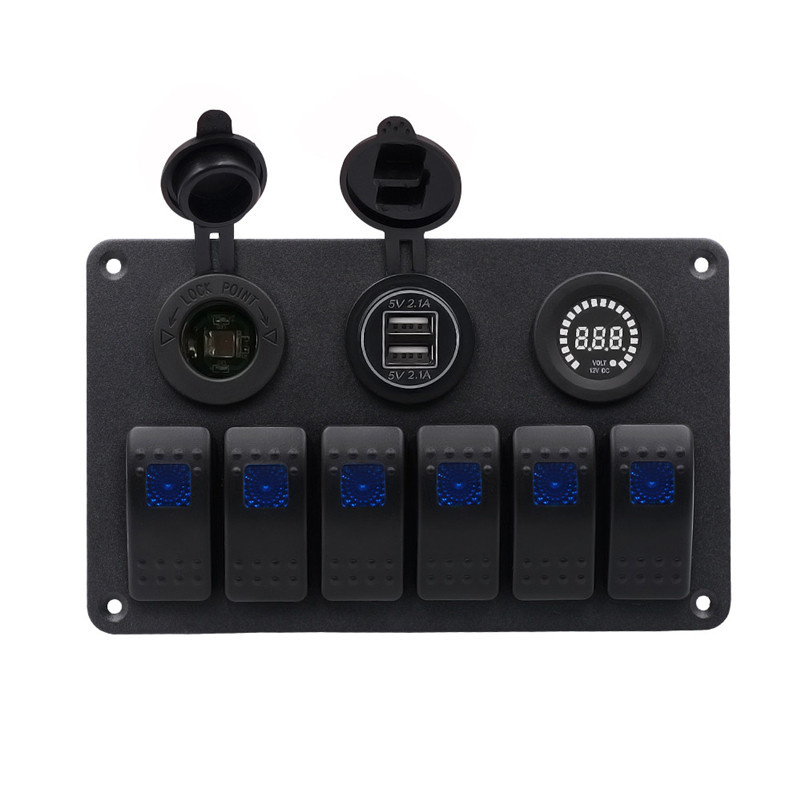

6 Gang Switch Panel

Product Description

Quick Details

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: MAI YU
• Model Number: MY8200R-6
• Max. Current: 20A
• Max. Voltage: AC250V DC30V
• Mechanical Life: 10000cycles
• Item: rocker switch panel
• Switch: 6 Gang rocker switch
• Quantity: 1 pc
• Color: Black
• LED Color: Red
• Waterproof garde: IP68
• Certificate: CE
• Materia: Black UV resistant contoured plastic
• Protected mode: Circuit breakers
• Number of Circuit Breakers: 5A *3/10A *2/15A *1
•







Packaging & Delivery

Features:

Good design, perfect for your machine
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
Splash-proof,anti-corrosion
Easy to install,can be installed horizontally or vertically

Specification:

Material: ABS
Color: Black
Led: RED(Color aberration)
Quantity: 1 PC
Dimension: 18 x 12 x 8 cm / 7" x 4.7" x 3.1"(LxWxH)
Installation: Pre-wired
Switches Available: 6 Gang
Amp Rating per circuit: 15amp Max
Rocker Switch: 6
Rating: DC 12V 20A,24V 10A
Dielectric Strength: AC 1500V 1minute
Breaker: 6 (5A x 3;10A x 2;15A x 1)
Loop Circuit: ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Operating Temperature: -25degree to 80degree
Electrical Life: 10000 make and break cycles at full load
IP Rating: IP68
Dimensions:120(Width)x183(Height)

Package Included:

1 X 6 Gang LED Rocker Switch Panel
1 X pre-printed labels
6 X screws
