6 Layers Rigid Flex PCB Circuit Board Flex-Rigid Pressfit PCB for Industry Control

Name: 6 Layers Rigid Flex PCB Circuit Board Flex-Rigid Pressfit PCB for Industry Control
Brand: all-electronics-online.com
SKU: 764611325
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 0.06-0.18/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FL913
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	1.6mm Rigid and 0.1mm Flex
Copper Thickness:	1oz
Solder Mask:	Green and Yellow
Silk Screen:	White
Material:	Fr4 + Polymide
PCB Type:	Rigid-Flexible PCB
Test:	100% Test
Small Order:	Accepted
Lead Time:	5-10 Days
Service:	High Quality
Dielectric:	FR-4

Product Description

Product Description

6 Layers Rigid Flex PCB Circuit Board Flex-Rigid Pressfit PCB for Industry Control

Parameter & Data Sheet

Size of Flexible PCB	71.25 X 80.38
Number of Layers	4
Board Type	Rigid-Flexible PCB
Board Thickness	0.25mm
Board Material	Polyimide (PI) 25µm
Board Material Supplier	ITEQ
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	35 µm (1oz)
Surface Cu thickness	35 µm (1oz)

Coverlay Colour	Black
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	FR-4 / Stainless steel
Stiffener Thickness	1.0mm / 0.2mm

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Capability

Workshop

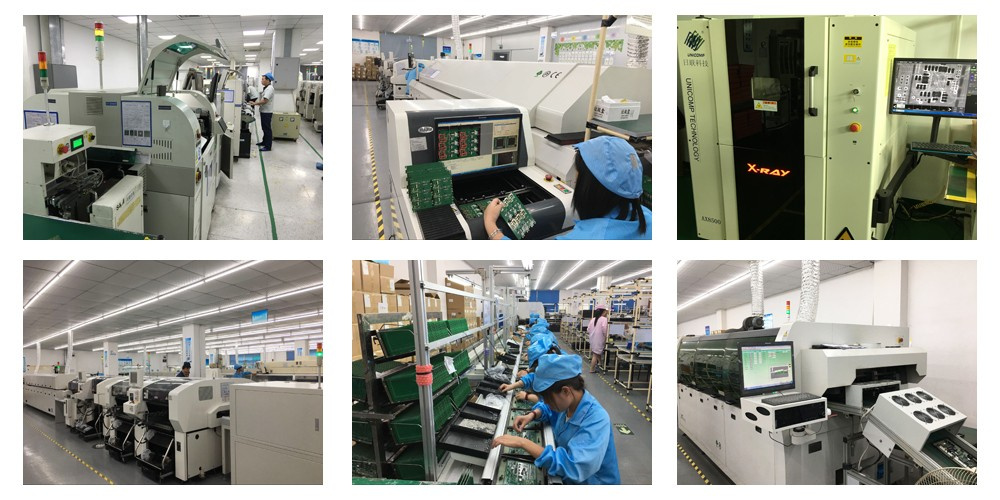

Assembly service

Ship&Payment

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
