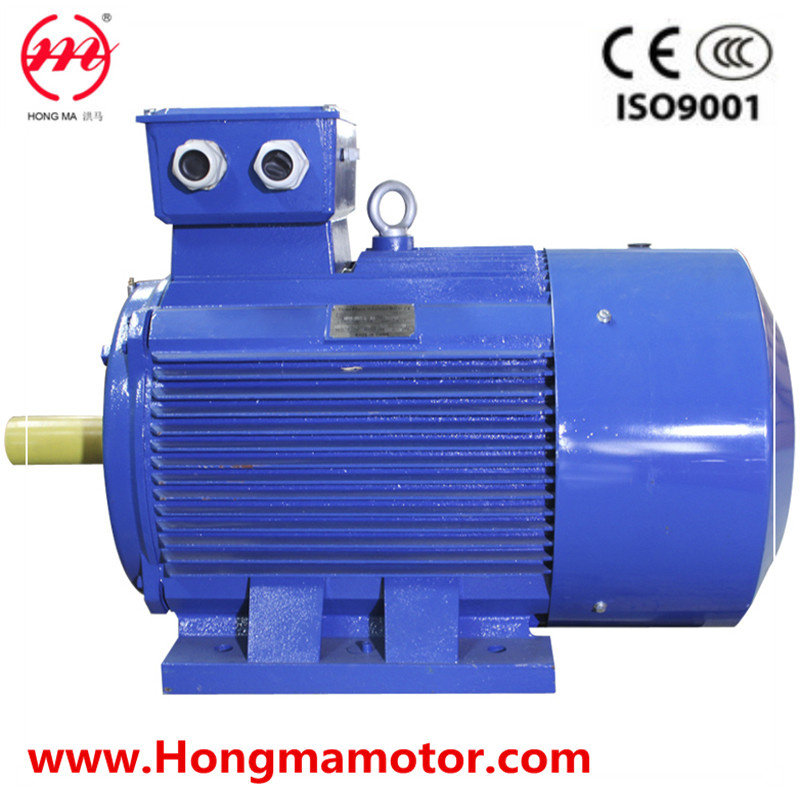

6 Pole 1.5kw Asynchronous Induction Electric Motor (100L-6-1.5kw)

Name: 6 Pole 1.5kw Asynchronous Induction Electric Motor (100L-6-1.5kw)
Brand: all-electronics-online.com
SKU: 782603705
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 83.6/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3HMI100L-6-1.5KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size Range:	H100
Rated Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Rated Freqency:	50Hz
Rated Power Range:	1.5kw
Protection Class:	IP54
Insulation Class:	F
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Ambient Temperature:	-20~+40 °c
Altitude:	Not Exceed 1000m
Origial Place:	Zhejiang, China
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Brand:	Hongma
Certification:	CE

Product Description

Product Description
HMI-IE3 (3HMI)Cast Iron Series Premium efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMI Series Motors are enhanced performance motors built in light weight, all cast iron frames. 3HMI Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 80 to 355. 3HMI Cast Iron Series Premium efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.

Technical Data

Frame Size Range

H100

Housing Material:	Cast Iron
Output Range	1.5kw
Pole	6
Terminal Box	Top Mounted
Protection Class	IP54
Insulation Class	F
Installation Method	B5,B5,B14,B35
Cooling Method	IC411
Efficiency Standard	IEC60034-2-1
Duty	S1

Insulation Method &Mounting Dimensions


		MOUNTING DIMENSIONS																OVERALL DIMENSIONS
Type	Frame Size	A	B	C	D	E	F	G	H	K	Z	KK	P	M	N	S	T	AB	AC	AD	HD	L
3HMI	80M	125	100	50	19	40	6	15.5	80	10	M6×16	1-M20×1.5	200	165	130	12	3.5	152	153	122	202	290
3HMI	90S	140	100	56	24	50	8	20	90	10	M8×19	2-M20×1.5	200	165	130	12	3.5	168	172	135	225	315
3HMI	90L	140	125	56	24	50	8	20	90	10	M8×19	2-M20×1.5	200	165	130	12	3.5	168	172	135	225	340
3HMI	100L	160	140	63	28	60	8	24	100	12	M10×22	2-M20×1.5	250	215	180	15	4	192	193	145	245	370
3HMI	112M	190	140	70	28	60	8	24	112	12	M10×22	2-M25×1.5	250	215	180	15	4	222	223	165	277	395
3HMI	132S	216	140	89	38	80	10	33.3	132	12	M12×28	2-M25×1.5	300	265	230	15	4	248	265	208	340	470
3HMI	132M	216	178	89	38	80	10	33.3	132	12	M12×28	2-M25×1.5	300	265	230	15	4	248	265	208	340	500
3HMI	160M	254	210	108	42	110	12	37	160	15	M12×28	2-M40×1.5	350	300	250	19	5	315	330	260	420	605
3HMI	160L	254	254	108	42	110	12	37	160	15	M12×28	2-M40×1.5	350	300	250	19	5	315	330	260	420	680
3HMI	180M	279	241	121	48	110	14	42.5	160	15	M12×28	2-M40×1.5	350	300	250	19	5	350	352	285	445	694
3HMI	180L	279	279	121	48	110	14	42.5	160	15	M12×28	2-M40×1.5	350	300	250	19	5	350	352	285	445	732
3HMI	200L	318	305	133	55	110	16	49	200	19	M20×42	2-M50×1.5	400	350	300	19	5	390	394	315	515	774
3HMI	225S(4-8P)	356	286	149	60	140	18	53	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	820
3HMI	225M(2P)	356	311	149	55	110	16	49	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	813
3HMI	225M(4-8P)	356	311	149	60	140	18	53	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	873
3HMI	250M(2P)	406	349	168	60	140	18	53	250	24	M20×42	2-M63×1.5	550	500	450	19	5	490	481	375	625	922
3HMI	250M(4-8P)	406	349	168	65	140	18	58	250	24	M20×42	2-M63×1.5	550	500	450	19	5	490	481	375	625	922
3HMI	280S(2P)	457	368	190	65	140	18	58	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	991
3HMI	280M(2P)	457	419	190	65	140	18	58	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	1040
3HMI	280S(4-8P)	457	368	190	75	140	20	67.5	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	991
3HMI	280M(4-8P)	457	419	190	75	140	20	67.5	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	1040
3HMI	315S(2P)	508	406	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1160
3HMI	315M(2P)	508	457	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1270
3HMI	315L(2P)	508	508	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1270
3HMI	315S(4-10P)	508	406	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1190
3HMI	315M(4-10P)	508	457	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1300
3HMI	315L(4-10P)	508	508	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1300
3HMI	355M(2P)	610	560	254	75	140	20	67.5	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1500
3HMI	355L(2P)	610	630	254	75	140	20	67.5	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1500
3HMI	355M(4-10P)	610	560	254	95	170	25	86	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1530
3HMI	355L(4-10P)	610	630	254	95	170	25	86	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1530

Connection:

    Power under 3KW selects Star connection;Power up 3KW selects Delta connection

Package

    Frame NO. 80--132  :Package by carton box and then packed by wooden box

    Frame NO.160 and above:one wooden box per set
