| Prod Model: |
CA-010DU |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Certification: |
Ce, 3c, CAS, RoHS, ISO9001 |
| Panel: |
Iron Panel |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
3+1 |
| Sound Channel: |
1.0 |
Product Description

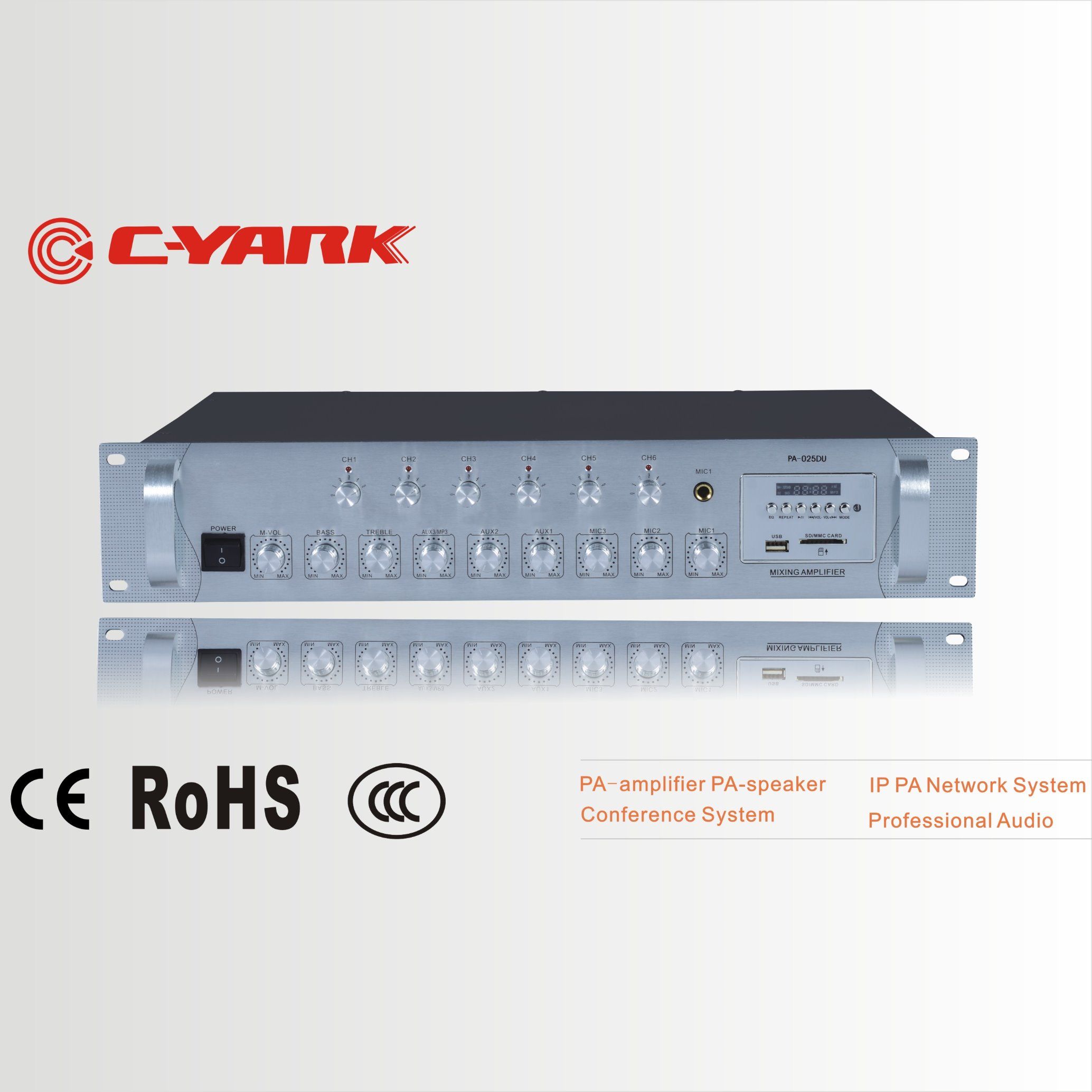

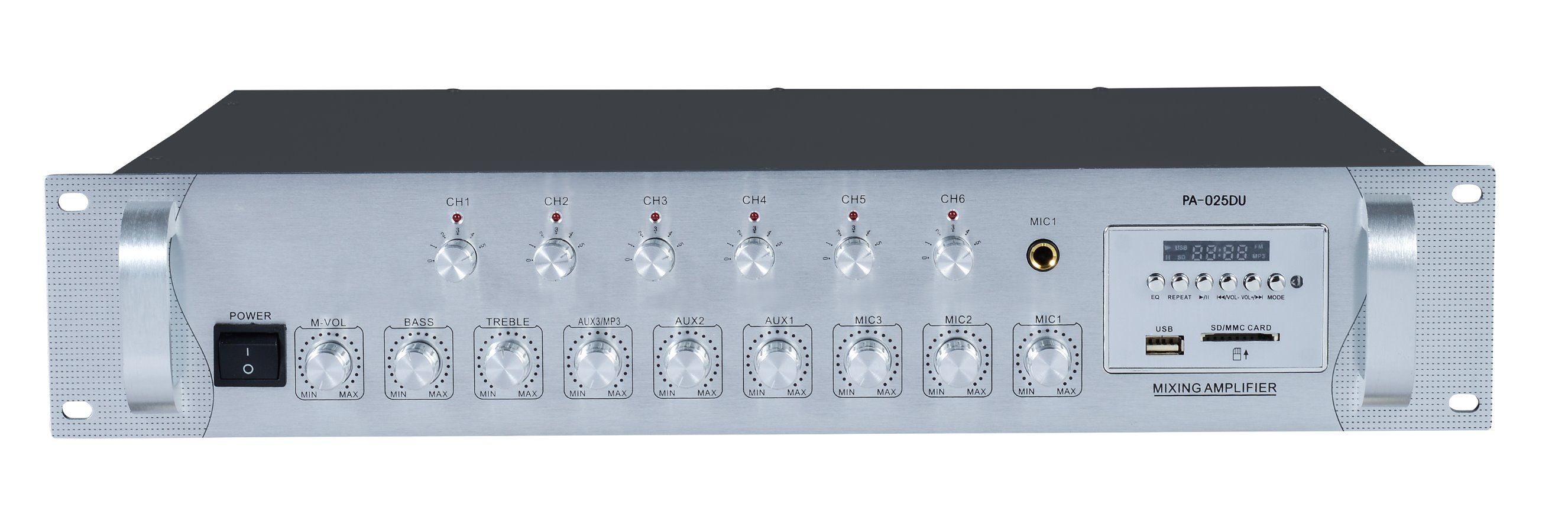

6-Zone China Mixing amplifier with USB Master Volume Control
Description® 2U rack mount design with high quality aluminium alloy panel. ® Each zone has an independent volume controller.® The digital module includes USB port and SD card slot® Mute function: Input has priority level ( Front MIC 1 overrides all other inputs). ® Applying newest separation circuit design for convenient repairing and maintenance.® Output module has a cover to prevent it from damaging by other machines.® Excellent device of radiator cooling fan that ensures working effectively.® The perforated back panel and a high-speed fan keep the amp cool.® It supports Bluetooth and is with LED to display status.® It has 3 AUX inputs, 3 MIC inputs, internal MP3 player and FM.® Master volume control are provided for overall tone control.®Treble and bass volume control.® OutPut module has a cover to prevent it from damaging by other machines.® Built-in MP3 and FM function to play background music directly and no need for another audio facility. Features
1.Power: 100W/150W/200W/250W/350W/500W
2.Input: 3 AUX inputs, 3 MIC inputs(MIC 1 has Mute function for emergency input),
3.Output: 1 AUX output
5.Decoder module supports USB / SD Card
6.File format: MP3/WMA/WAV
7.Multiple play mode:repeat; play/pause; prev/next; vol+/vol-;EQU(equalizer)
8.FM function
9.Remote controller
10.Cooling fan and heat sink for over-heat protection
11.Power transistor: Samsung brand
12.Short-circuit/Over-load/Over heat protection
13.A single machine is a complete P.A Syste
Specifications| Model | CA-010DU | CA-015DU | CA-020DU | CA-025DU | CA-035DU | CA-050DU |
| Rated Power | 100W | 150W | 200W | 250W | 350W | 500W |
| Output Model | 70V 100V 4-16Ω |
| Input Sensitivity | 500mv |
| S/n Radio | >85db |
| Frequency Response | 80Hz~~15KHz±3db |
| Power | AC 220V~~240V/50Hz~60Hz |
| Dimension(mm) | 100-250W:485*370*90mm; 350W(Include 350W): 485*390*90mm |
Our company information :

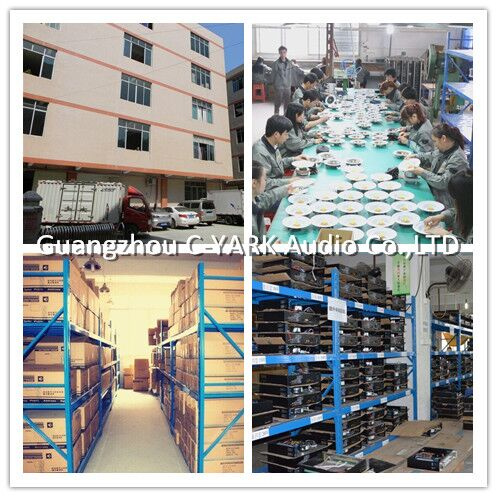

Our factory is located in Jiaoxin Industry District
