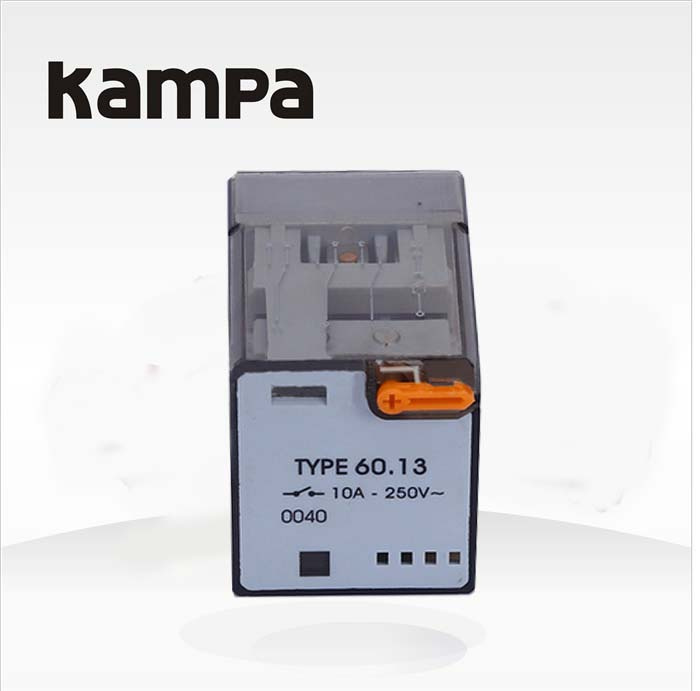

60.13 Type Coil AC 220V 11 Pins 3PDT Electric Power Relay

Name: 60.13 Type Coil AC 220V 11 Pins 3PDT Electric Power Relay
Brand: all-electronics-online.com
SKU: 818668465
Availability: InStock
Rating: 4.3 (53 reviews)

Price:	US $ 0.92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60.13
Contact Type:	3z
Contact Capacity:	AC 10A 250V DC10A 30V
Dielectric Strength:	Boc 1500VAC Bcc 1500W
Coil Nominal Voltage:	DC6-220V AC6V-380V
Coil Mounting Power:	AC2.0va to 2.8va DC ≤1.5W

Product Description

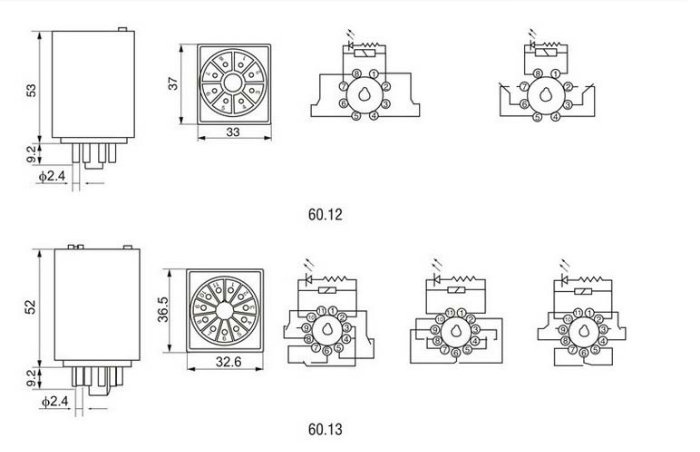

General purpose relay :60.12 60.13
Coil voltage:DC6-110V,AC6-240V
Contact specification
Contact from	2Z,2H,2D 3Z,3H,3D
Contact resistance	≤1000MΩ(1A,6VDC)
Contact material	AgCdO
Contact capacity	10A 250VAC/28VDC
Technical specification
Insulation resistance	≥500MΩ,500VDC
Dielectric strength	BCC ≥1500VAC 1min
	BOC≥1000VAC 1min
Operate/Release time	≤20ms/20ms
Terminal type	Socket mounting
Coil specification
Rated coil power 1.5w/2.5VA

Nominal voltage VDC	Operate voltage VDC	Release voltage VDC	Coil resistance Ω±10%	Nominal voltage VAC	Operate voltage VAC	Release voltage VAC	Coil resistance Ω±10%
6	4.8	0.60	24	6	4.80	1.80	4.6
12	9.6	1.2	96	12	9.60	3.60	20
24	19.2	2.4	384	24	19.20	7.20	80
48	38.4	4.8	1540	48	38.4	14.40	320
100	80.0	10.0	6660	110/120	88	36.00	1700
110	80.0	11.00	8066	220/240	176.0	72.00	7400/870
