| Prod Model: |
VV/VLV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
IEC,BS,VDE,AS/NZS,Icea, |
| Delivery Length: |
Accord with The Request |
| Capacity: |
2000km/Month |
| Min.Order Qty: |
1km |
| Application: |
Underground |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Brand: |
Henan Jiapu |
Product Description
600/1000V Multi Cores PVC Unarmoured Power CableApplication:
With the characteristics of stable capability,advanced technology,broad material resources,low price, good flexible and easy to lay and maintain, the PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 6kV. Property:1.The long-time permissible working temperature of cable conductive core is not more than 70 °C.
2.During short circuit (max. permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.rty
5.Light weight,good bending property and easy installation and maintenance.

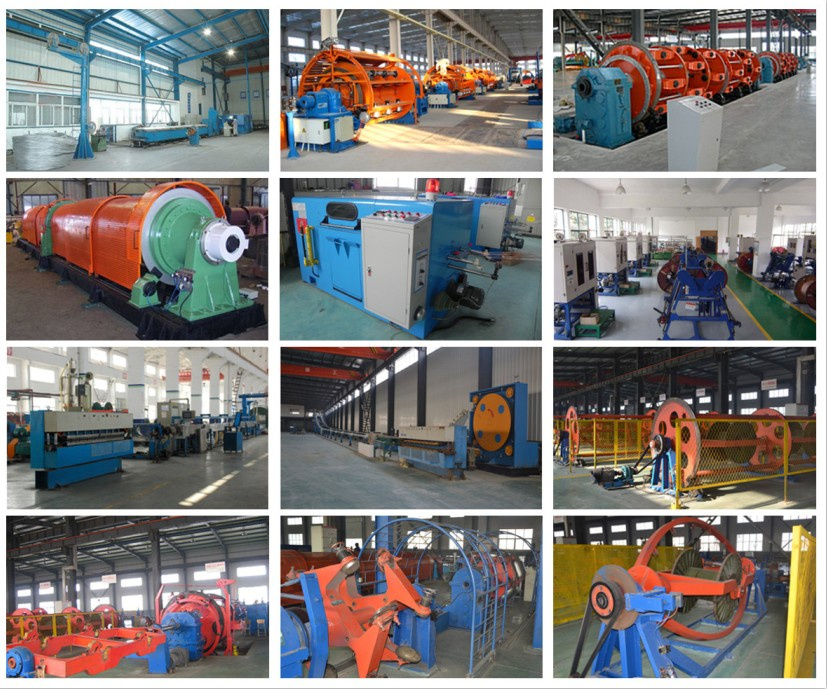

Workshop:

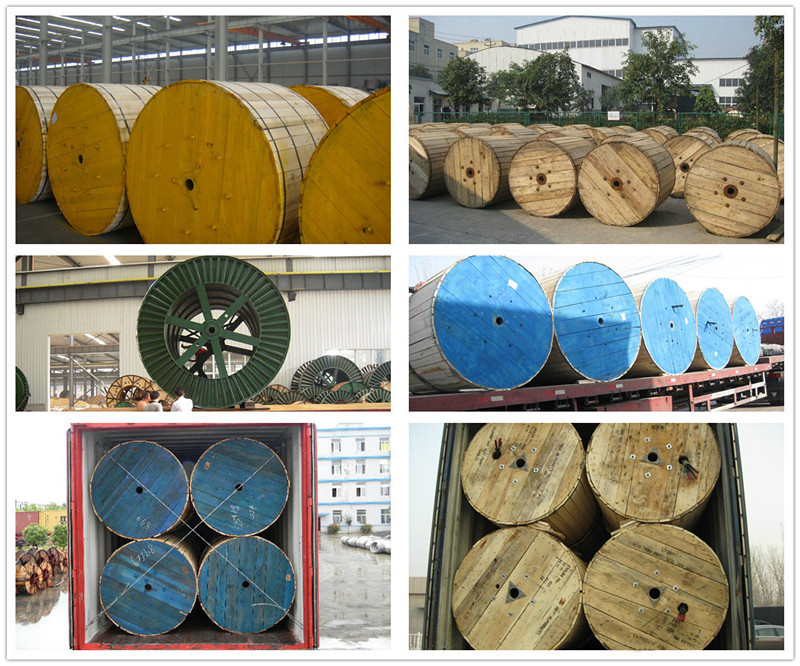

Shipment:
Specifications:| Number of Cores | Cross-Section of Conductor | No. Of Wires | Thickness of Insulation | Thickness of Sheath | Overall Diameter | Approx. Net Weight |
| Al Conductor | Cu Conductor |
| - | mm 2 | - | mm | mm | mm | kg/km | kg/km |
| Three Cores | 3x35 | 16 | 1.2 | 1.8 | 21.9 | 601 | 1280 |
| 3x50 | 18 | 1.4 | 1.8 | 26.5 | 829 | 1732 |
| 3x70 | 18 | 1.4 | 1.9 | 29.2 | 1067 | 2367 |
| 3x95 | 36 | 1.6 | 2 | 32.9 | 1409 | 2317 |
| 3x120 | 36 | 1.6 | 2.1 | 36.2 | 1705 | 3983 |
| 3x150 | 36 | 1.8 | 2.2 | 38.8 | 2045 | 4872 |
| 3x185 | 36 | 2 | 2.4 | 44.8 | 2596 | 6077 |
| 3x240 | 60 | 2.2 | 2.6 | 51.5 | 3353 | 7953 |
| 3x300 | 60 | 2.4 | 2.7 | 54.9 | 6069 | 9820 |
| Four Cores with Reduced Neutral | 3x35+16 | 16-7 | 1.2-1 | 1.8 | 25.5 | 764 | 1107 |
| 3x50+25 | 18-16 | 1.4-1.2 | 1.9 | 28.7 | 982 | 1410 |
| 3x70+35 | 18-16 | 1.4-1.2 | 2.0 | 32 | 1278 | 1733 |
| 3x95+50 | 36-18 | 1.6-1.4 | 2.2 | 37.8 | 1711 | 2656 |
| 3x120+70 | 36-18 | 1.6-1.4 | 2.3 | 40.5 | 2065 | 3137 |
| 3x150+70 | 36-18 | 1.8-1.4 | 2.4 | 44.8 | 2480 | 3660 |
| 3x185+95 | 36-36 | 2-1.6 | 2.6 | 49.7 | 3086 | 4345 |
| 3x240+120 | 60-36 | 2.2-1.6 | 2.8 | 56 | 3894 | 5441 |
| 3x300+150 | 60-36 | 1.4-1.8 | 2.9 | 60.3 | 4834 | 6494 |
| Four Cores | 4x25 | 16 | 1.2 | 1.8 | 22.5 | 644 | 1286 |
| 4x35 | 16 | 1.2 | 1.8 | 24.6 | 799 | 1696 |
| 4x50 | 18 | 1.4 | 1.8 | 28.6 | 1071 | 2275 |
| 4x70 | 18 | 1.4 | 2 | 31.6 | 1387 | 3120 |
| 4x95 | 36 | 1.6 | 2.1 | 35.9 | 1850 | 4262 |
| 4x120 | 36 | 1.6 | 2.2 | 38.8 | 2209 | 5247 |
| 4x150 | 36 | 1.8 | 2.3 | 43.1 | 2714 | 6483 |
| 4x185 | 36 | 2 | 2.5 | 48.7 | 3403 | 8045 |
| 4x240 | 60 | 2.2 | 2.7 | 53.6 | 4290 | 10422 |
| 4x300 | 60 | 2.4 | 2.9 | 58.8 | 5302 | 12969 |
Certificaton:
FAQ:1. How many years has Henan Jiapu Cable Group been in production? Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1) Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2) Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3) PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5) Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6) Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have ?
SABS, CE, ISO9001-2000, SGS.
4.Which markets do you involve mainly in ?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country ?
We don't have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
