600/1000V Plain Annealed Flexible Copper Powerflex RV-K Cable
| Price: |
US $ 0.2-76.8/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
powerflex RV-K cable |
| Rated Voltage: |
0.6/1kv |
| Application: |
Lighting and Power |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PE |
| Certification: |
SGS |
| Model: |
Cu/PE/PVC |
| Brand: |
Hongda |
Product Description

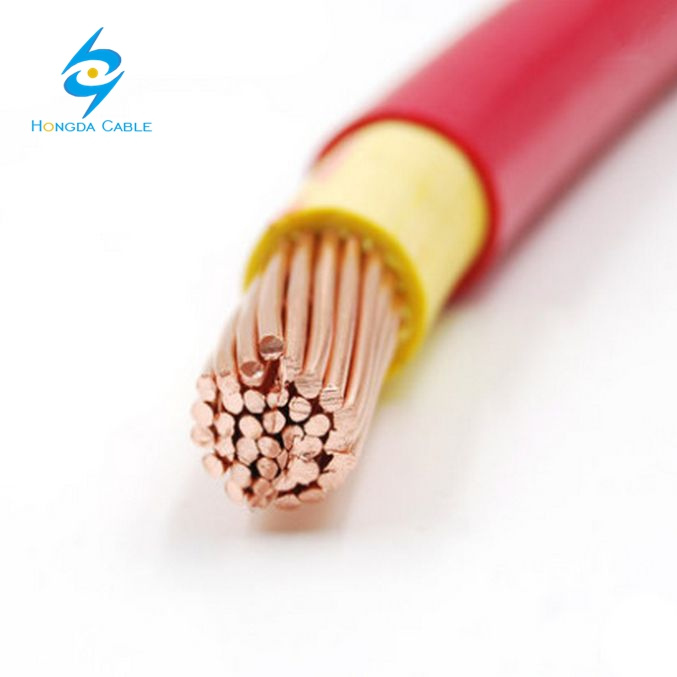

600/1000V Plain annealed flexible copper powerflex RV-K cable
powerflex RV-K cable Application:Flexible cable for fixed installation intended for the transport of energy and industrial indoor and outdoor connections in low voltage installations.
Its flexibility makes it a special cable for installations
with complex pathsSTANDARD
UNE 21123-2.
UNE-EN 60332-1-2: Flame propagation. IEC 60332.VOLTAGE
0.6/1 kVpowerflex RV-K cable Conductors:
Flexible copper class 5.
powerflex RV-K cable INSULATION:
Cross-linked polyethylene XLPEpowerflex RV-K cable Insulation Jacket:
Polyvinyl Chloride (PVC)Assembly:

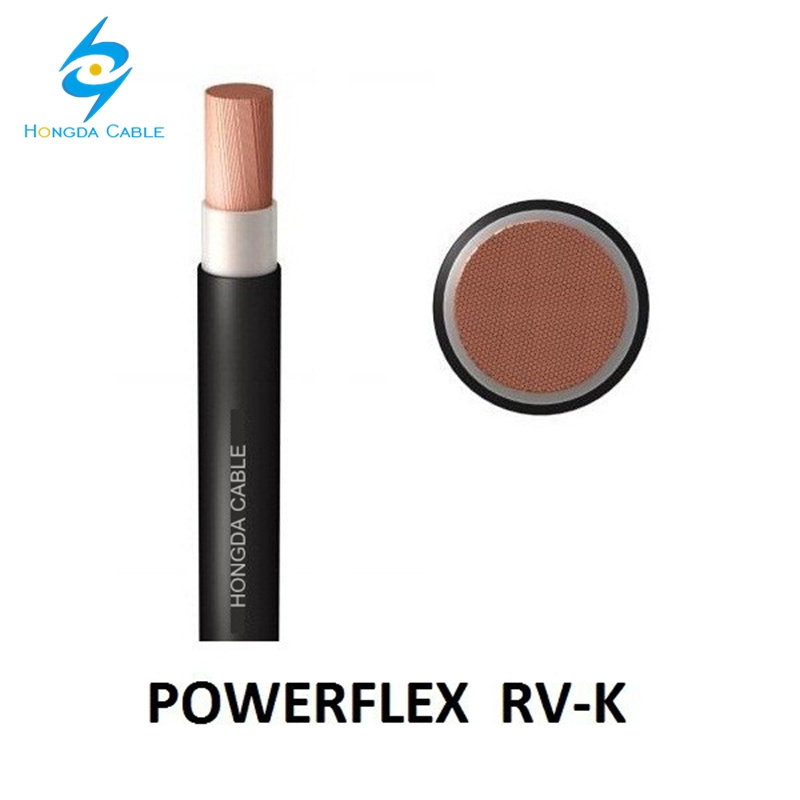

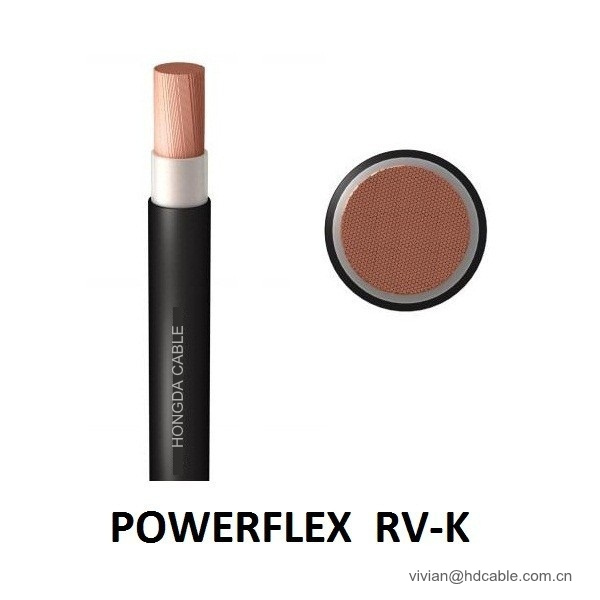

Single conductor of stranded or solid annealed copper, XLPE Insulation and PVC Jacket type RV-K, several colors are available, surface printed. powerflex RV-K cable Specification: SIZE
AWG / MCM | INSULATION THICKNESS
mm. | JACKET THICKNESS
mm. | EXTERNAL DIAMETER
mm. | TOTAL WEIGHT
Kg/Km | AMPACITY
Amp. | PACKAGING |
| 14 | 0.81 | 0.38 | 4.14 | 31.3 | 20 | B,E,Z |
| 12 | 0.81 | 0.38 | 4.54 | 44.7 | 25 | B,E,Z |
| 10 | 0.81 | 0.38 | 5.10 | 62.6 | 35 | B,E,Z |
| 8 | 1,14 | 0,38 | 6,73 | 109,0 | 50 | B,E,Z |
| 6 | 1,14 | 0,76 | 8,45 | 170,0 | 65 | E,Z |
| 4 | 1,14 | 0,76 | 9,68 | 301,0 | 85 | E,Z |
| 2 | 1,14 | 0,76 | 11,21 | 376,0 | 115 | E,Z |
| 1 | 1,40 | 1,14 | 13,42 | 461,5 | 130 | E,Z |
| 1/0 | 1,40 | 1,14 | 14,53 | 609,0 | 150 | D,E,Z |
| 2/0 | 1,40 | 1,14 | 15,68 | 747,0 | 175 | D,E,Z |
| 3/0 | 1,40 | 1,14 | 17,03 | 915,0 | 200 | D,E,Z |
| 4/0 | 1,40 | 1,14 | 18,48 | 1132,0 | 230 | D,E,Z |
| 250 | 1,65 | 1,65 | 21,23 | 1390,0 | 255 | Z |
| 300 | 1,65 | 1,65 | 22,63 | 1641,0 | 285 | Z |
| 350 | 1,65 | 1,65 | 23,89 | 1889,0 | 310 | Z |
| 400 | 1,65 | 1,65 | 25,08 | 2137,0 | 335 | Z |
| 500 | 1,65 | 1,65 | 27,25 | 2627,0 | 380 | Z |
| 600 | 2,03 | 1,65 | 29,97 | 3144,0 | 420 | Z |
| 650 | 2,03 | 1,65 | 30,95 | 3409,0 | 440 | Z |
| 700 | 2,03 | 1,65 | 31,79 | 3593,0 | 460 | Z |
| 750 | 2.03 | 1.65 | 32.18 | 3854.0 | 475 | Z |
| 1000 | 2.03 | 1.65 | 35.94 | 5045.2 | 545 | Z |

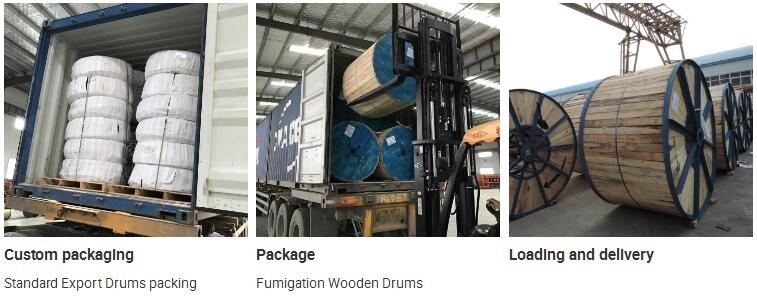

Powerflex RV-K cable PACKAGE:A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
