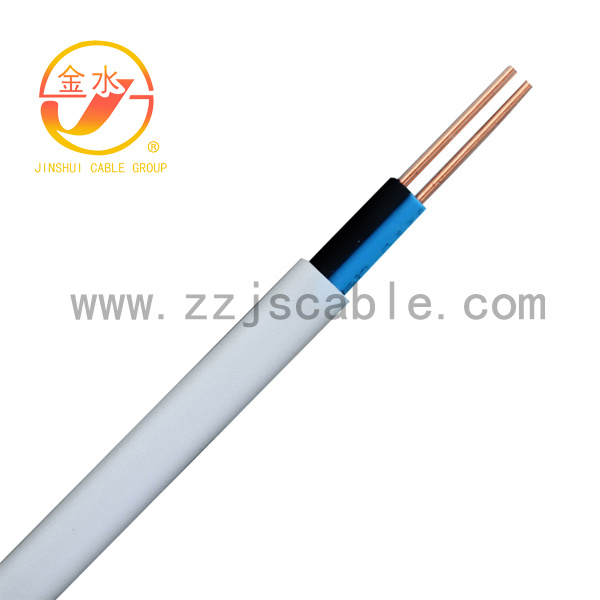

600 Volts Flat Copper Building Wire

Name: 600 Volts Flat Copper Building Wire
Brand: all-electronics-online.com
SKU: 721590092
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 0.01-0.99/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Building
Range Of Application:	Building
Brand:	Jinshui

Product Description

Applications
For direct burial, for use in dwellings not exceeding 3 floors above grade, as underground feeder to outdoor lighting or apparatus, or as general branch circuit wiring. Recognized for use as exposed or concealed wiring in damp, moist, wet, dry, and corrosive locations. For use as new wiring or as replacement wiring.

Construction
·  Conductor is bare annealed copper per ASTM B-3 or stranded conductors, per ASTM B-8.
·· Insulation is color coded PVC (polyvinyl chloride)
·· Ampacity is limited to that for 60oC conductors per NECR Articles 336 and 339.

Standards
·  Listed under UL Standard 493.
·  Federal Specification JC-30B.
·  ASTM B-3 and B-8

Model	Size AWG	Number of Conductors	Strand Class	Nominal insulation thickness: mm	Approx. Cable O.D. mm
JS-BVVR 2002106	14	2	Class K	0.65	3.1×7.4
JS-BVVR 3002106	12	2	Class K	0.7	3.7×8.5
JS-BVVR 5002106	10	2	Class K	0.8	4.4×10.2
JS-BVVR 8002106	8	2	Class K	1.0	5.9×13.6
JS-BVVR 1302106	6	2	Class K	1.2	7.3×16.8
JS-BVVR 2003106	14	3	Class K	0.65	3.1×11.6
JS-BVVR 3003106	12	3	Class K	0.7	3.7×13.6
JS-BVVR 5003106	10	3	Class K	0.8	4.4×16.2
JS-BVVR 8003106	8	3	Class K	1.0	5.9×21.5
JS-BVVR 1303106	6	3	Class K	1.2	7.3×26.4

Note

Model	Size AWG	Number of Conductors	mechanical characteristics		Caracteristicas Electricas
			Masa total	Allowable Pull	Tensión nominal	Intensidad nominal
JS-BVVR 2002106	14	2	53kg/km	210N	600V		25A

Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
