| Prod Model: |
TK104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Global Compatibility: |
850/900/1800/1900 MHz |
| High Sensitivity GPS And GSM Antennas: |
Can Be Used Without Any Additional Antenna |
| Map: |
Realtime Google Maps |
| Battery: |
6000mAh Battery, 60 Days Long Standby |
| Network: |
GSM/GPRS |
| Item Size: |
94mm*60mm*38mm |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Weight: |
300g |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit Data |
| Port Number: |
20 |
| Model: |
Vehicle Tracker GPS104 |
| Screen Size: |
No |
| Chip: |
No |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
6000mAh battery coban magnetic vehicle gps tracking system tk104 with tracker home platformThis tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Main Features
- Waterproof shell
- Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
- Powerful magnets to absorb to vehicle firmly.
- Real-time tracking, retrieve of lost vehicles, cargo.
- Movement alarm, Geo-fence alarm, Shock alarm, remote monitoring.
- Support map viewing on mobile phone screen, get exact address by SMS, GPRS real time tracking on web based server.
- Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
- Support for external GSM antenna & GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using Application:Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Production installation
The product is easy to install. The built-in powerful magnet can make it to be directly adsorbed on the iron objects.
Built-in GPS and GSM antenna, external antenna can be optional.
The tracker is waterproof, but please still avoids the long-term placement in the places of water infiltration.

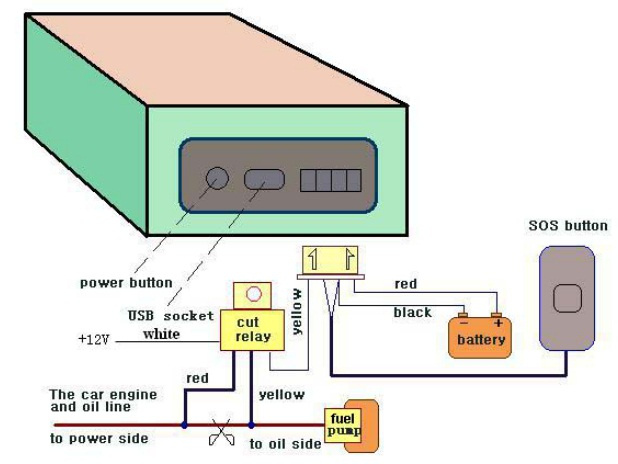

If you need an external power supply, cut oil & power system and SOS feature, please find 4PIN main wire, wiring diagram as follows:
Note: Please install SOS button on the hidden place driver can touch.

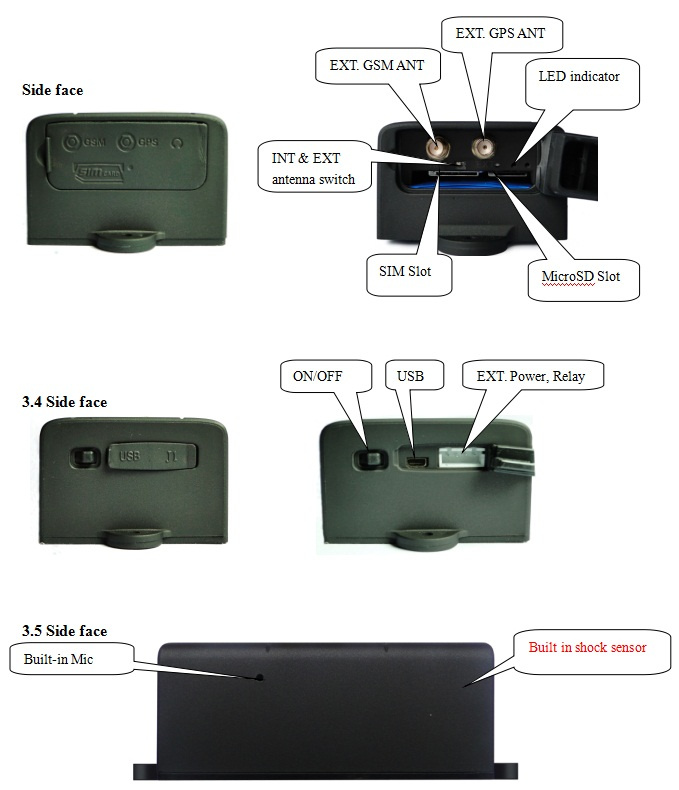

INT & EXT switch
Switch to INT to change to use internal antenna; switch to EXT to change to use external antenna
SIM card installation
Open the waterproof sealant and insert SIM card as following picture shows, push it to the end to install SIM card correctly. The SIM card will pop up if press it after installed.
Please make sure that the SIM card is GSM network and able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can't recognize the PDU format.
Battery Charging
Please fully charge the product for the first use and charge as following:

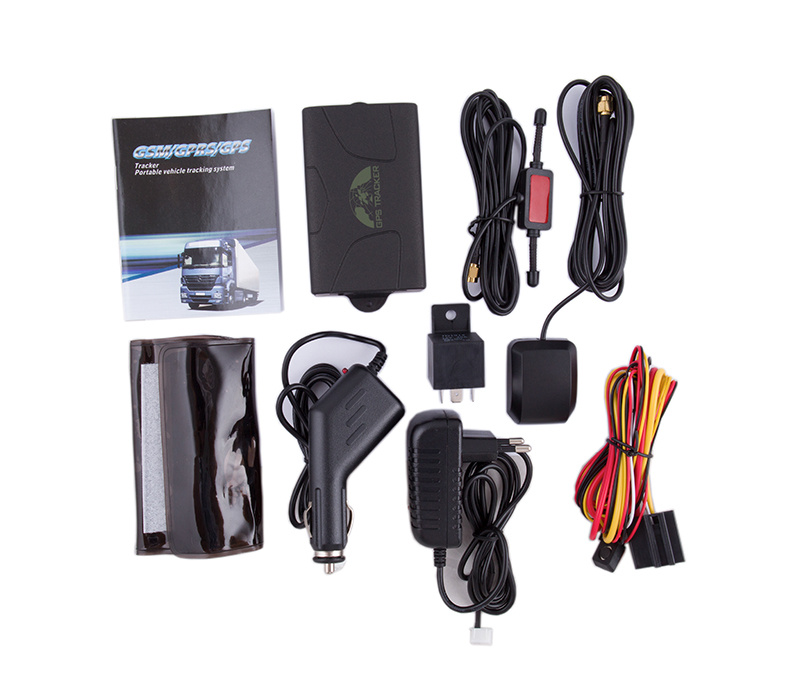

Home charge: Find the AC adapter from the accessories and connect 4-PIN plug into 4-PIN socket, and then connect the other end to mains supply.
Car charge: Find the car lighter charger from the accessories and connect to car cigarette lighter.
Note: Red LED ON means being charged, and LED OFF means fully charged, and then charging can be stopped. If the battery can't be fully charged once, then unplug the charger for about 10 minutes and then charge it one more time.
Basic functions:
1.Single Locating
2.Auto track continuously
Track with limited times upon time interval
Track with unlimited times upon time interval
Smart track upon time and distance interval
3.Automatic update positions of vehicle turns
4.GPS drift suppression
5.Exact street address
6.Location based service (LBS) / Cell-ID Locating
7. Monitor (Voice Surveillance)
8.Data logging
9.Data Load
10.Forward the third parties' message
11.SIM card Balance Inquiry
12.Cut off the Oil and Power System
13.Decide how many times of alarm message
14.Alarms
Low battery alarm
Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
Built in ShockSensor Alarm
15.Sleep Mode
Sleep by time
Sleep by shock
Deep Sleep by Shock
Awake according to schedule
No sleep mode
16.Check the Vehicle State
17.Check IMEI
18.Terminal (local) Time Setting
19.Reset Hardware
20.Configure parameters by USB
21.GPRS configuration
22.Less GPRS traffic
23.Set up monitor center number
24.Instructions for web platform and mobile APP

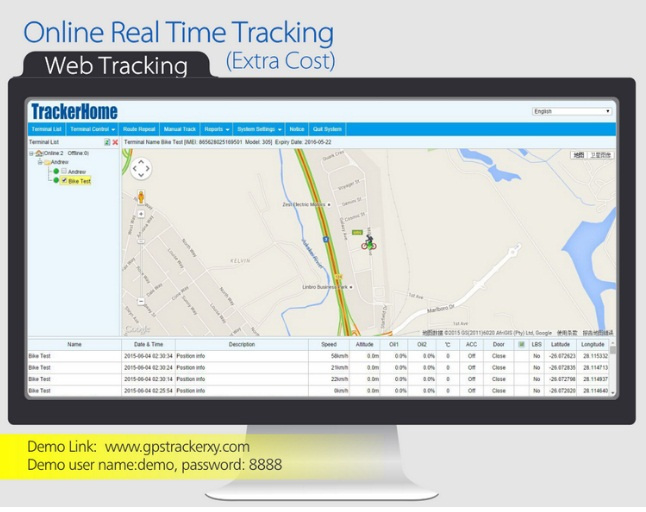

Web based tracking platform:
www.gpstrackerxy.com
Account: demo
Password:8888

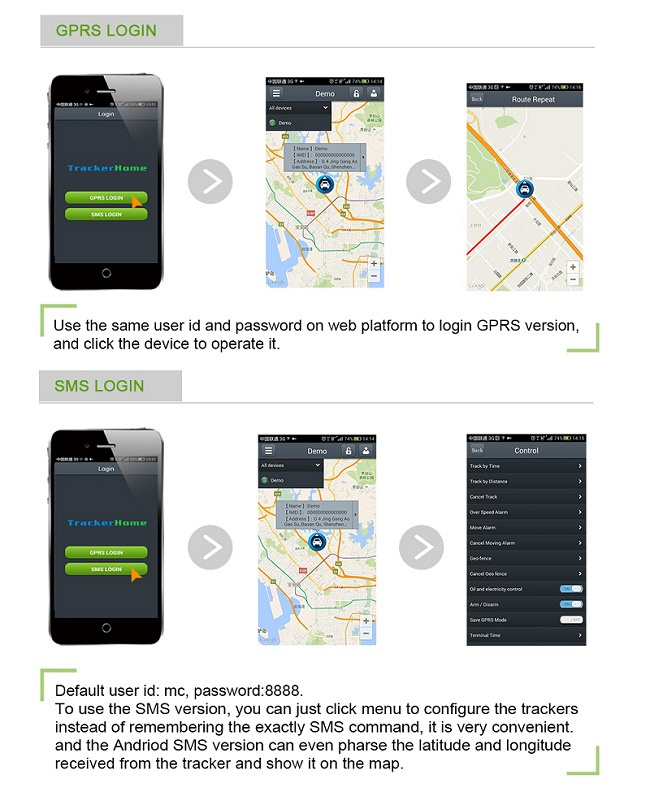

Mobile App: search for "tracker home" from app store or download from our website.
Our Services:
1. Free OEM ( MOQ:1000pcs)
2. Free Web tracking platform/Mobile App tracking(Android&ios) for one year
3. Can provide GPRS protocol if you have your own tracking platform
4. One year warranty for each device, bear maintenance cost during warranty
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
