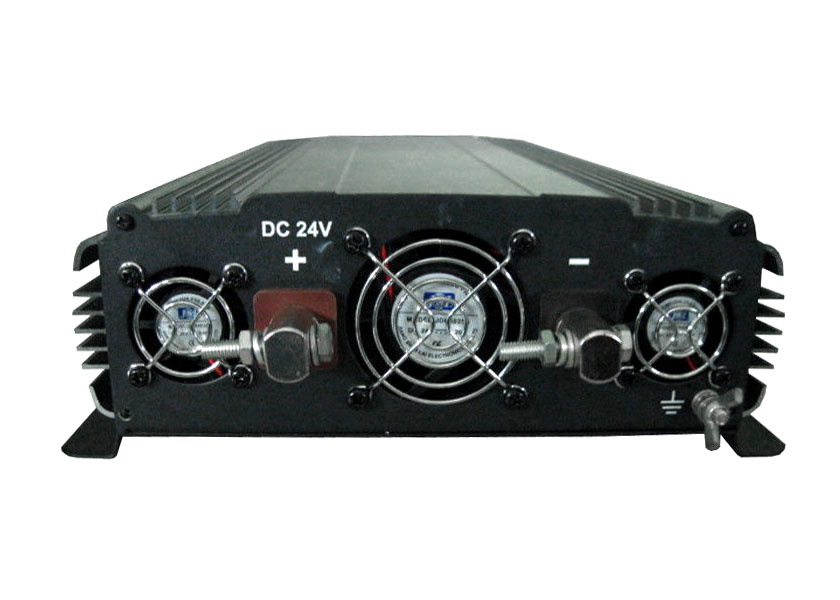

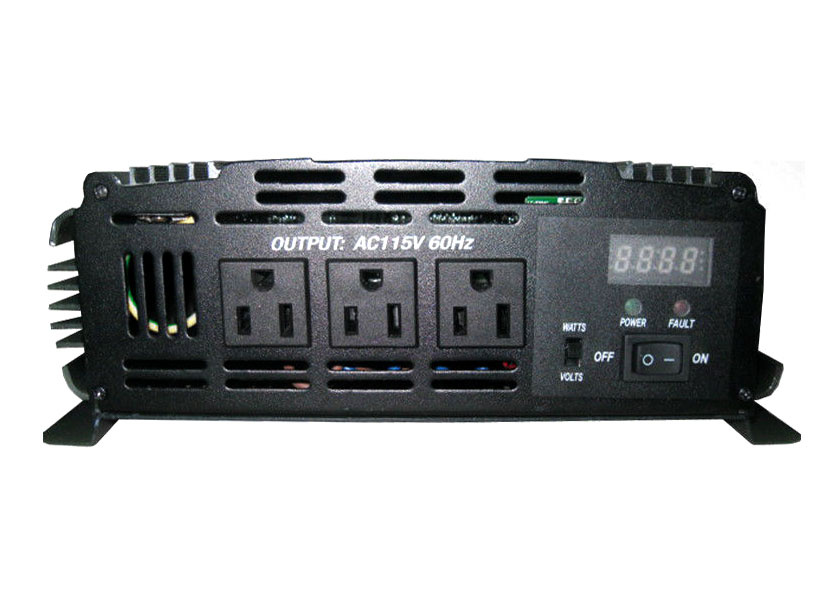

6000W Modified Sine Wave Inverter

Name: 6000W Modified Sine Wave Inverter
Brand: all-electronics-online.com
SKU: 722010455
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-6000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	12months
Battery Type:	AGM/Vlra/Gel/Deep Cycle
Wave Form:	Pure Sine Wave
Frequency:	Low Frequency
Charge Current:	20-25A
Display:	LCD/LED Selectable
Transfer Time:	<10ms
Application:	Office/ Home Use
Surge Rate:	3:1
DC Voltage:	12/24V
Type:	DC/AC Inverters
Phase:	Single
Power Source:	Electric Power
Output Power:	501 - 1000W

Product Description

PV Solar Inverter 100W/200W/300W/500W/600W/800W/1000W/15000W/200 0W/3000W/5000W/6000W

Description:

Modified sine wave Inverter
High efficiency up to 90%
Low self-consumption less than 5W
Wide usage solar/AC/CAR

Applications:

Pure sine wave output can be used with different domestic appliance
TV, refrigerator, fan, air conditioner induction cooker, micro-wave oven etc.

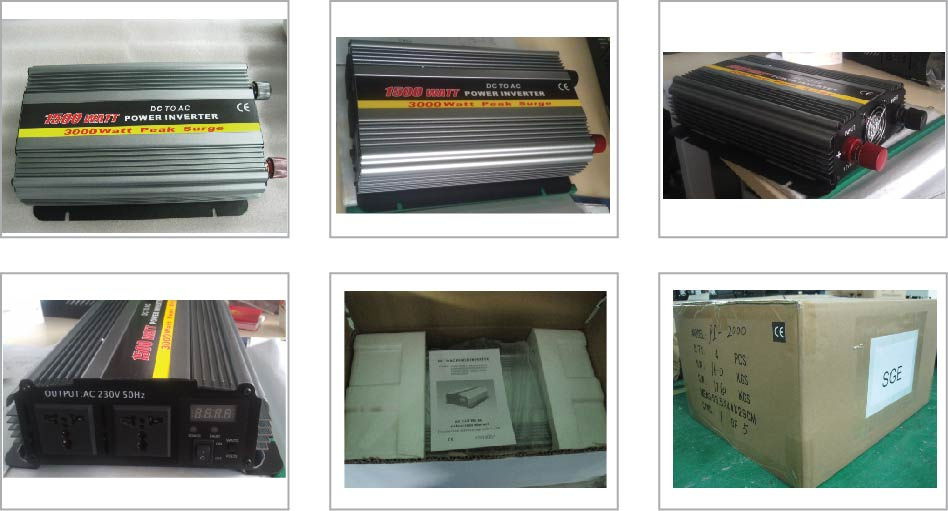

Detailed Pictures

Model Name (PC )

100W

200W

300W

500W

800W

1000W

1500W

2000W

3000W

5000W

6000W

DC INPUT

DC input voltage rating

12V/24V DC

DC input voltage range

11 -15V DC for 12v ; 22-30V for24v

Low battery alarm

10.5V DC±0.5V DC for 12v ; 21VDC±0.5V for 24v

Low battery shutdown

10.0V DC±0.5V DC for 12v ; 20VDC±0.5V for 24v

No load current draw

<0.8 A (Input:13.2V DC)

High battery voltage shutdown

>15V DC for 12v; >30V DC FOR 24V

Fuse (internal)

30A

30A*2

30A*4

30A*8

25A*12

25A*18

25A*30

Input reverse protection

Yes (Blow fuse)

AC INPUT

AC input voltage range

93VAC~138VAC; 185Vac~264Vac

AC input voltage rating

200Vac~240Vac

AC input frequency

60Hz /50Hz

AC input current

3.0 A@ 120Vac/1.8A @ 230Vac max(RMS)

AC input power

200W

AC input static state current

0.10A max(RMS)

OUTPUT

Output voltage range

120VAC / 230V AC (RMS)±10%

Output frequency

50Hz/60Hz±3Hz

Output wave form

Modified sine wave

Continuous output power

100W

200W

300W

500W

800W

1000W

1500W

2000W

3000W

5000W

6000W

Overload output power

100%-130%

Surge capacity (Peak power)

2:1

GENERAL SPEC

Efficiency (except power loss on the wire)

>85% (Full load)

Over load protection

Yes

Short circuit protection

Yes

Over temperature shutdown

<65 Degree

Operating temperature range

-10-40 Degree

Storage temperature range

-40-85 Degree

Operating relative humidity

10%-90%

Storage relative humidity

5%-95%

MECHANICAL

Dimension (mm)

90*70*46

125*90*46

190*125*70

340*220*82

290*220*78

320*260*95

410*260*95

410*230*170

605*230*170

Net weight(kg)

0.35

0.5

0.55

1.05

2.5

6.5

7.5

12.75

Outlet

IEC/NEMA/SCHUKO/UNVERSAL

Connector

DC cable

Cool mode

By fan
