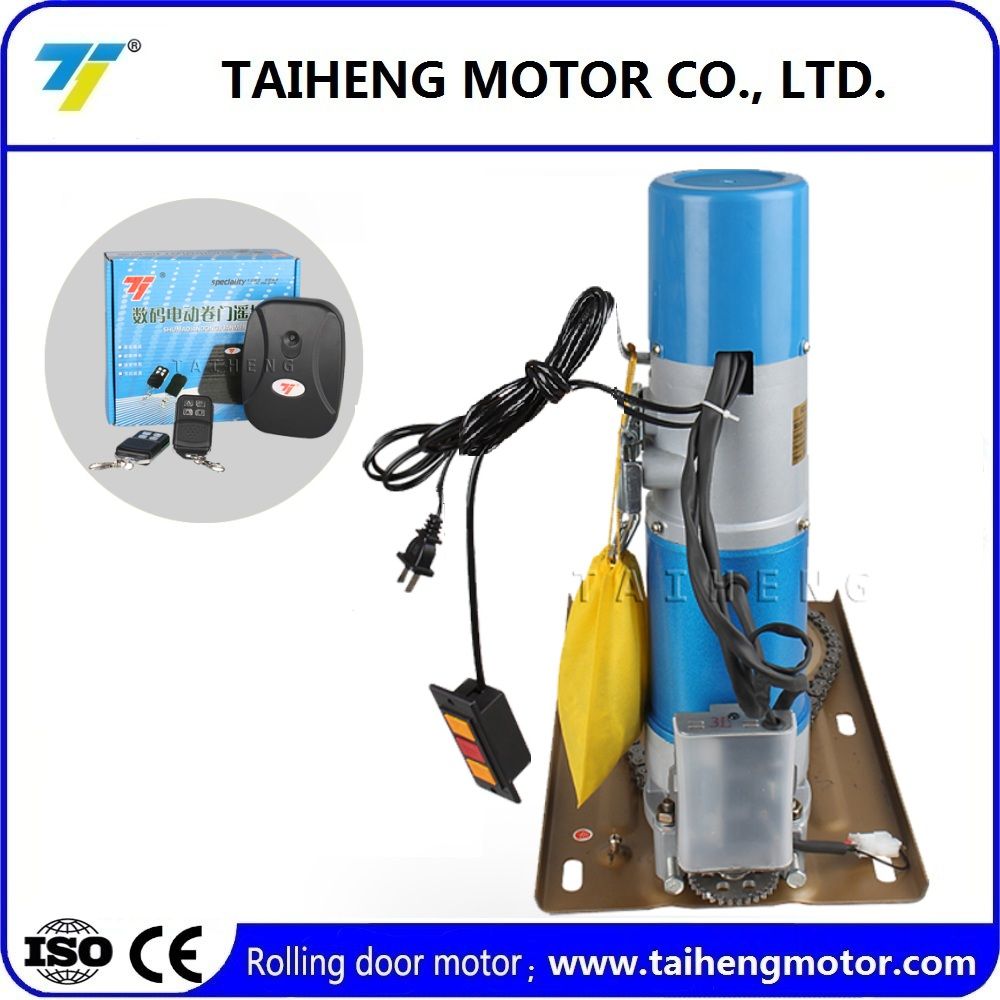

600kg AC 220V Garage Door Motor
| Price: |
US $ 50-60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram |
| Prod Model: |
TH-600-1P |
| Type: |
Automatic Door Operators |
| Place Of Origin: |
Fujian, China (Mainland) |
| Continued Work Time: |
7-8 Min |
| External Rated Voltage: |
AC220/380V |
| Frequency: |
50/60Hz |
| Color: |
Customized |
| Max Lifting Strenge: |
1500kg |
| OEM: |
Acceptable |
| Certificate: |
CCC, Ce, UL, VDE |
| Warranty: |
1 Year |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Certification: |
Ce |
| Brand: |
Th |
Product Description
Technical data of garage door motor:
1. Rated power: 370W
2.Max hoist capacity: 600kg
3. Max lifting height: 6m
4. Rated torque: 412N.m
5.Rated speed: 5.2r/min
Features:1.Loading capacity:AC motor:,200KG-1500KG, DC motor:.300KG-800KG.
2. Voltage :110V/220V/380V
3.Safety:Four Relays installed.
4.Winding Material:100% copper wire.
5.Bracket system:Cutomized bracket system ,built-in brake system
6.Variety Control System:Functions include: infrared sensor, learning code,UPS, rebound sensor, alarm function, lighting etc.7.pass CE certifacation and export over 20 countries.Advantages:
1.Compact construction suitable for all kinds of roller shutter doors,large torque,zero noise.
2.National patent of Chain-break protection.
3.Thermal effect protection.
4.Separate circuit control ensures the security.
5.Safety brake,accurate limited control positioning,with double limit switch protection.
6.Location accuracy less than 1.5 entimeter7.UPS available.8.Remote control available.
9.Easy install, easy maintenance and long useful lifeAccessories :Chain,Gear,Chain Plate, Driving plate, Bracket for bearing ,Shaft , End Plate, BearingOur service:- Professional before and after sale.
- Delivery time :15-35 days after receiving deposit.
- Any inquiry/question will be responsed within 24 hours during working days.
.| MODEL | RATED POWER(w) | LIFTING POWER(kg.f) | RATED LOAD | MAX HEIGHT(m) | Rated Voltage(V) |
| | | | outputtorque(n/m) | outputspeed(r/min) | | |
| TH-300-1P | 200 | 300 | 168 | 5.2 | 6 | 220V |
| TH-400-1P | 250 | 400 | 168 | 5,.2 | 6 | 20V |
| TH-500-1P | 250 | 500 | 343 | 6.2 | 6 | 220V |
| TH-600-1P | 370 | 600 | 412 | 5.2 | 6 | 220V |
| TH-800-1P | 400 | 800 | 647 | 3.4 | 9 | 220V |
| TH-1000-1P | 400 | 1000 | 1102 | 6.5 | 9 | 220V |
| TH-800-3P | 300 | 800 | 647 | 3.4 | 9 | 380V |
| TH-1000-3P | 400 | 1000 | 1102 | 6.5 | 9 | 380V |
| TH-1300-3P | 600 | 1300 | 1372 | 6.5 | 9 | 380V |
| TH-1500-3P | 600 | 1500 | 1610 | 5.7 | 9 | 380V |
| | DC 24V |
| DC 300KG | 200 | 300 | 168 | 3.7 | 6 | 220V |
| DC 500KG | 240 | 500 | 343 | 4.6 | 6 | 220V |
| DC 600KG | 240 | 600 | 412 | 4.2 | 9 | 220V |
| DC-800KG | 380 | 800 | 647 | 3.9 | 9 | 220V |
Zhangzhou Taiheng Motor Co., Ltd. Was founded in 2001 which located in Zhangzhou city, with advanced production and testing equipment so that we can control the quality. We are a professional manufacturer making rolling door motor, retractable door motor, sliding gate motor and tubular door motor for over 15 years experience, with good quality, pretty reasonable price.
The area covers over 3000, Now our company has advanced automatic production lines and perfect quality testing system. Our company is a professional rolling door machine and the ancillary products; Our products have being exported to Southeast Asia, the Middle East, Europe, America and so on, more than 30 countries. Due to the stable quality, reasonable price, and we always insist in good faith management quality guarantee. We get the high praise of customers so we are having more and more customers!
TaiHeng Motor factory has strong technology and perfect quality testing system. Our products have the features of safe, delicate, well designed, convenient maintenance and so on. Welcome to our factories for a visit
We believe we can make suitable products to you!
Motor Details:
1) manufacture AC, DC, AC and DC Rolling Door Opener, design and make motors according to your request
2) AC motor: 200KG-1500KG, DC motor: 300KG-800KG
3) 110V/220V/380V are all for our Rolling Door Opener.
4)with four relays inside to make sure our Rolling Door Opener to be more save.
5)100% copper material inside the motor, so it have a larger capacity and durable than other motors
6) make dimension of Rolling Door Opener bracket system according to your request, brake system build in the bracket system
7. We could design control system function according to your request, now we have functions: Infrared sensor, learning code, UPS, rebound automatic when meet obstacle, alarm function, lighting and so on…
8) our Rolling Door Opener pass CE and we start exportingsince 2001and export to over 20 countries.
9) professional company and professional sales makes your reliable supplier in China.
Characteristics:
1. Compact construction, large torque, and running without noise.
2. With the national patent of Chain-break protection.
3. The motor will not burn down for the protection of thermal effect
4. Separate circuit control ensures the security
5. Safety brake, accurate limited control positioning, with double limit switch protection, prevent door over roll-up.
6. UPS automatic system is available, No bother of power failure
7. Can work with remote controller
8. Easy to install, easy to maintenance and long useful life.
