| Prod Model: |
TC cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
ASTM UL1277 UL83 UL44 |
| Voltage: |
600V |
| Conductor Size: |
14AWG 12AWG 10AWG 8AWG 750mcm |
| Number Of Cores: |
2,3,4,5,6,7,9,10,12,15,16,19,20,25,30,37 |
| Shield: |
Aluminum-Plastic Composite Tape or Copper/Tinned-C |
| Packing: |
Wooden Drum |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Certification: |
UL |
| Application: |
Communicate System |
| Insulation Material: |
PVC+Nylon |
| Range Of Application: |
Trays, Raceways, and Outdoor Locations |
| Brand: |
Ren Da |
Product Description

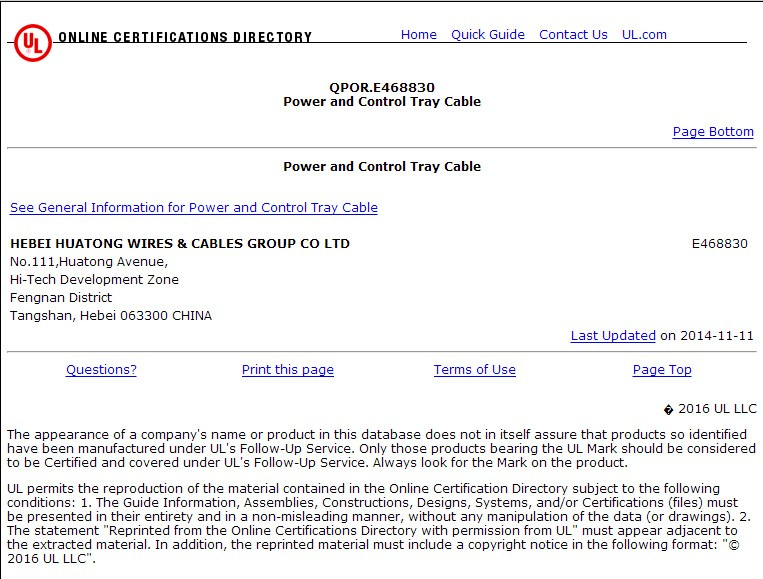

600V 2 core 14awg 6awg PVC/Nylon insulation power and control Type TC cable with UL12771 Certificate of UL1277 Type TC cable
2
APPLICATIONSTray cables are used in control and power applications in chemical plants, steel mills, industrial plants, utility substations and generating stations, as well as commercial buildings. Tray cables are available in a variety of insulation and jacketing combinations and designed to meet the demands of everything from light to heavy-duty industrial applications.
Tray Cable is a multi-conductor control, signal or power cable rated for 600 volts.
3 STANDARDS
UL listed as per UL 1277
UL83
UL44
Type TC
4 CONSTRUCTION
- Type TC Control Cable.
- 600 Volt.
- Copper Conductors.
- FR-XLP Insulated Singles Type XHHW rated VW-1.
- Overall PVC Jacket.
- Heat, Moisture and Sunlight Resistant.
- Type TC Control Cable
- 600 Volt
- Copper Conductors
- PVC/Nylon Insulated
- Overall PVC Jacket
- Heat, Moisture and Sunlight-Resistant
shield structure is according to your requirements .
5 option :
LSZH
XHHW-2 conductors with cross-linked polyethylene insulation and a sunlight resistant low smoke zero halogen thermoplastic jacket. 600 V 90° C dry and wet. UL 1277.
VN/VNTC
THHN conductors with polyvinyl chloride insulation, a nylon covering, and a sunlight resistant Polyvinyl Chloride jacket.
600 V 90° C dry and 75° C wet. UL 1277.
XLP/PVC
XHHW-2 conductors with cross-linked polyethylene insulation and a sunlight resistant Polyvinyl Chloride jacket.
600 V 90° C dry and wet. UL 1277.
XLP/CPE
XHHW-2 conductors with cross-linked polyethylene insulation and a sunlight resistant thermoplastic chlorinated polyethylene jacket. 600 V 90° C dry and wet. UL 1277.
XLP/XL-CPE
XHHW-2 conductors with cross-linked polyethylene insulation and a sunlight resistant thermoset chlorinated polyethylene jacket. 600 V 90° C dry and wet. UL 1277.
EP-CPE
XHHW-2 conductors with ethylene propylene rubber insulation and a sunlight resistant chlorinated polyethylene jacket.
600 V 90° C dry and wet. UL 1277.
6 Data Sheet:
7 Our factory information:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
