600V Single Conductor Urd Cable
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Code Name: Princeton Mercer Clemson Kenyon Harvard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
2000ton/Month |
| Delivery Length: |
Accord with The Request |
| Min.Order Qty: |
1km |
| Port Of Loading: |
Tianjin, Qingdao, Ningbo, Shanghai, Xiamen |
| Payment Term: |
L/C, D/P, D/a ,T/T, M/T, D/D, O/a, C.W.O, C.O.D, C |
| Certificate: |
SABS, ISO9001-2008, CQC Certificate, CE , SGS |
| The Rated Voltage: |
600 V |
| Application: |
Overhead |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
Product Description

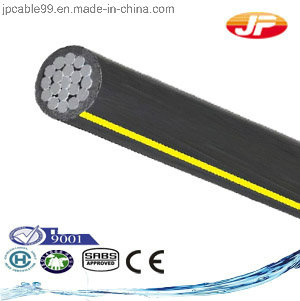

600V Single Conductor URD Cable
Standard: ASTM B230,B231, ICEA S-66-524,UL Standard 854
Capacity: 2000km/month
Min.Order Qty : 1km
Application:
Directly buried or installed in ducts for 600 volt secondary distribution.
·Cable in Duct(CIC)
·Abrasion Resistant
Construction:
Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation.
Specification:
ASTM B-230,B-231 and ICEA S-66-524 ,UL Standard 854 for type USE
Note:
To determine correct ampacity by conductor size, please consult the National Electric Code, latest edition.
Packaging: Available in 500 ft.coils 1,000ft. reels and long lengths.
The above data are approximate and subject to normal manufacturing tolerances.
Ampacity 90 degrees ceisius conductor temperatures, 20 degrees ceisius ambient temperature. RHO factor 90. 100 percent load factor for three conductor triplexed, 3 phase operation.

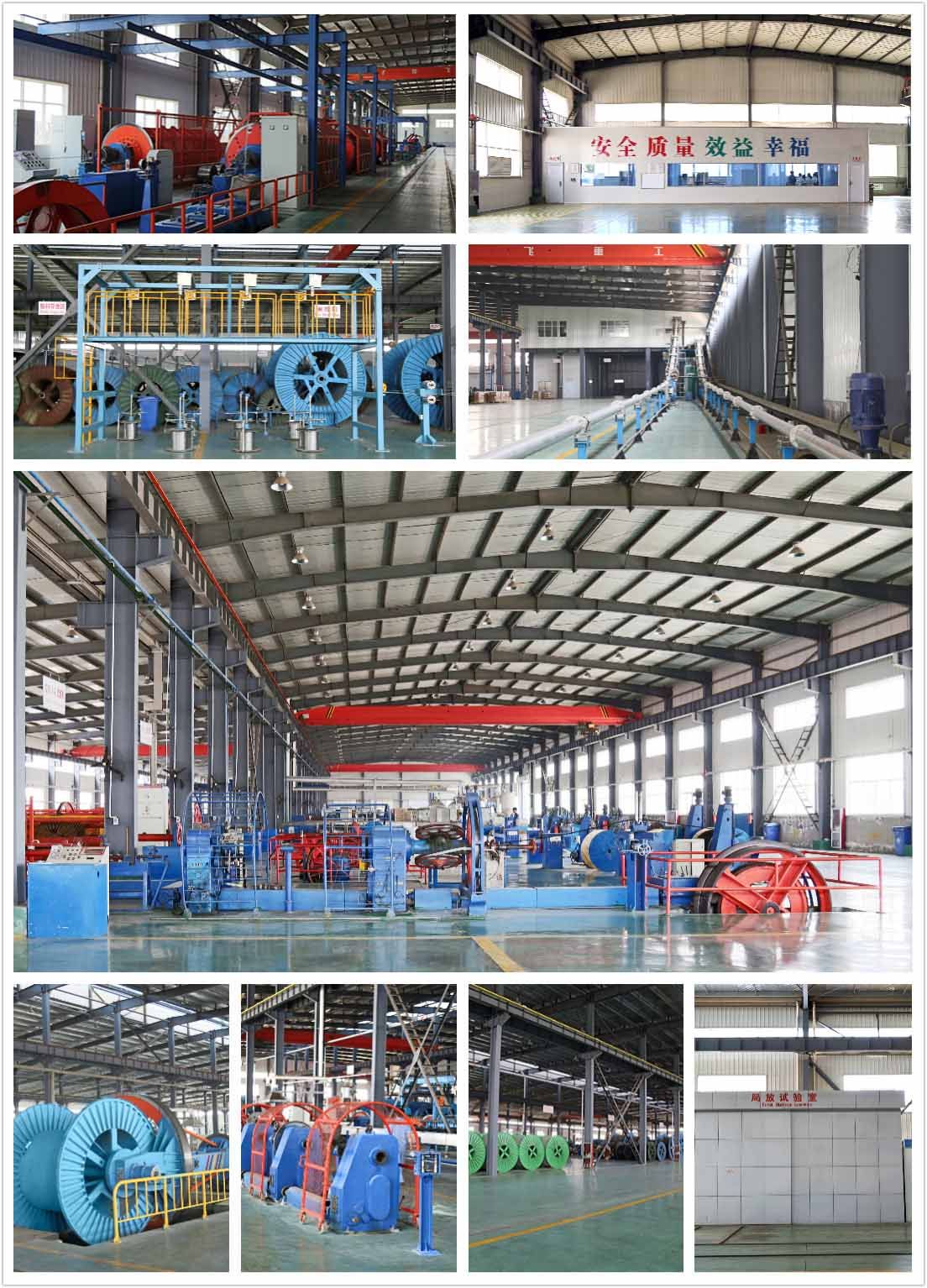

Workshop:

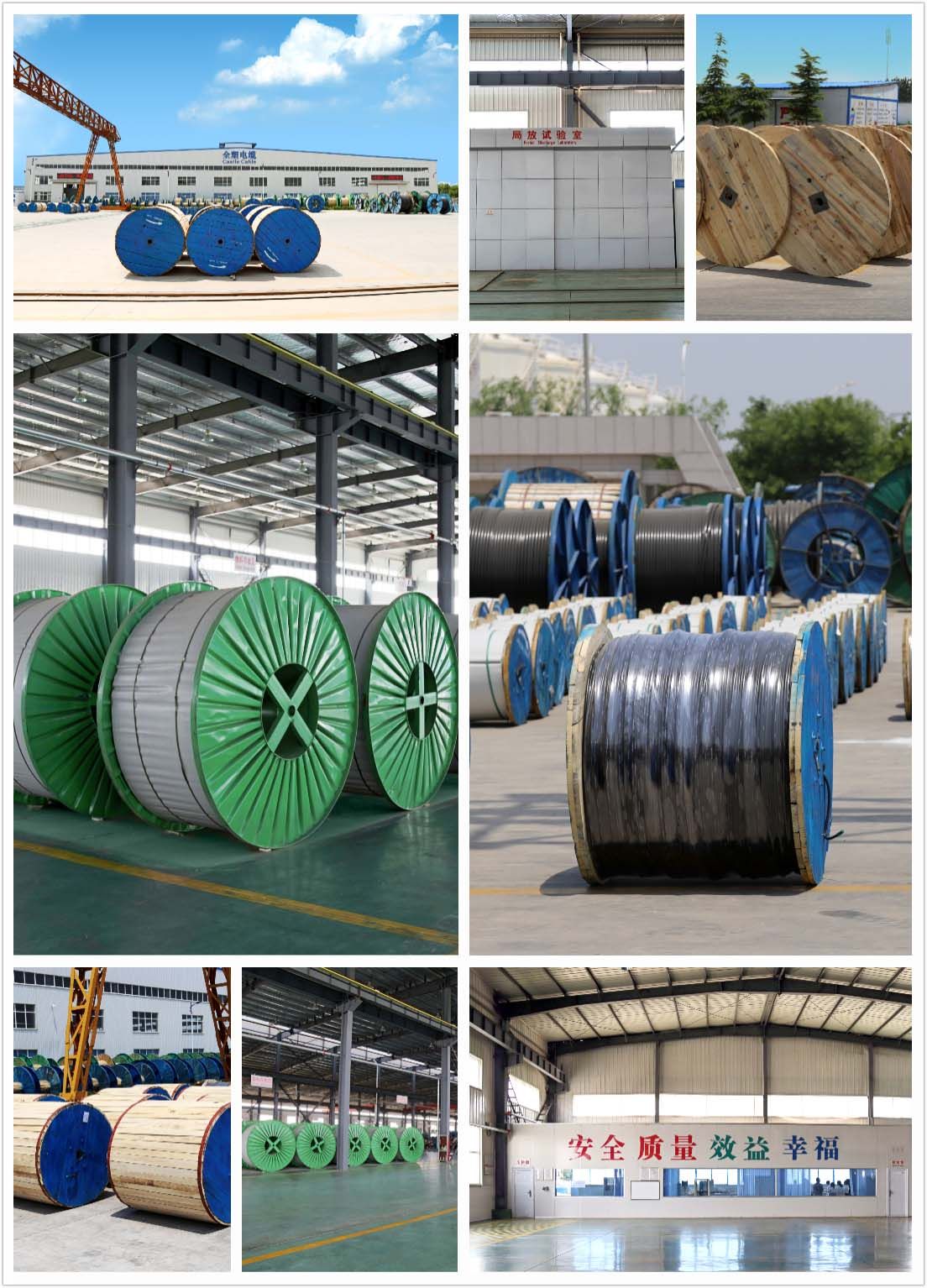

Shipment:
Specification: | Code Name | Cond.Size AWG or MCM | Stranding | Insulation Thickness (mls) | Outside Diam (inches) | Weight per 1000ft(lbs) | Ampacity |
| Direct Burial | In Duct |
| ALL ALUMINUM |
| Princeton | 6 | 7/w | 60 | .298 | 45 | 90 | 65 |
| Mercer | 4 | 7/w | 60 | .345 | 64 | 120 | 85 |
| Clemson | 2 | 7/w | 60 | .403 | 93 | 155 | 115 |
| Kenyon | 1 | 19/w | 80 | .482 | 122 | 175 | 130 |
| Harvard | 1/0 | 19/w | 80 | .522 | 148 | 200 | 150 |
| Yale | 2/0 | 19/w | 80 | .566 | 179 | 225 | 170 |
| Tufts | 3/0 | 19/w | 80 | .616 | 217 | 250 | 195 |
| Beloit | 4/0 | 19/w | 80 | .672 | 265 | 290 | 225 |
| Hofstra | 250 | 37/w | 95 | .748 | 317 | 320 | 250 |
| Gonzaga | 300 | 37/w | 95 | .801 | 371 | 355 | 280 |
| Rutgers | 350 | 37/w | 95 | .851 | 423 | 385 | 305 |
| Emory | 500 | 37/w | 95 | .979 | 579 | 465 | 370 |
| Duke | 600 | 61/w | 110 | 1.086 | 701 | 510 | 410 |
| Furman | 700 | 61/w | 110 | 1.155 | 804 | 550 | 440 |
| Sewanee | 750 | 61/w | 110 | 1.188 | 855 | 580 | 470 |
| Fordham | 1000 | 61/w | 110 | 1.337 | 1109 | 670 | 545 |
Certification:
Customer
FAQ:1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country ?
We don't have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
