600volt Secondary Ud Triplex Bundled Aluminum Conductor XLPE Insulation Cable
| Price: |
US $ 0.66-6.6/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
triplex aluminum conductor |
| Standard: |
Asrm B-230 / Asrm B-231/ Asrm B-232/Asrm B-399 |
| Ambient Temperature: |
25 ºC |
| Ampacity Rating: |
75ºC |
| Emissivity: |
0.91 |
| Coefficient Of Absorbtion: |
0.95 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Directly Buried or Installed in Ducts |
| Brand: |
Jytop |
Product Description

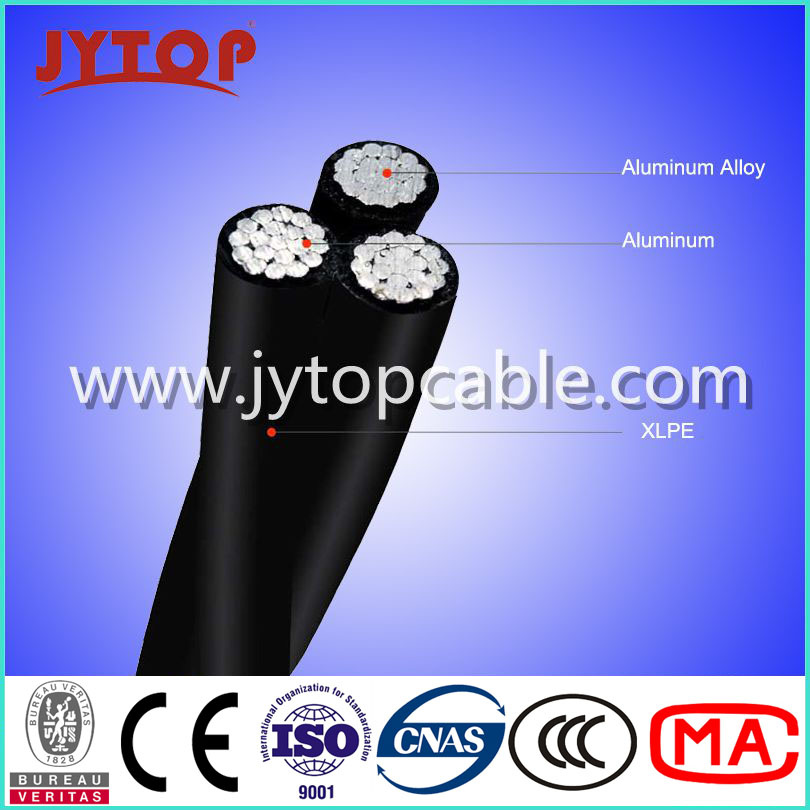

600 VOLT Secondary UD triplex Aluminum Conductor XLPE insulation cable
Construction:Concentric stranded or compressed 1350-H19 aluminum conductor, Cross-linked polyethylene insulation, Insulated conductor surface printed, neutral, triple yellow striped or solid yellow, Black neutrals may be specified if desired.
Applications:
Directly buried or installed in ducts for 600 volt secondary distribution.
Standards:
UD-Triplex aluminum cable meets or exceeds the following ASTM specifications:
ASTM B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded.
UD-Triplex aluminum cable meets or exceeds all applicable requirement of ANSI/ ICEA-S-150-692 UL Standard 854 for type USE-2, Federal specification JC-30B NEC.
Technical Date :| Code Word | Phase Conductor | Neutral | Diameter (mils) | Weight Per 1000 feet (lbs.) | Allowable Ampacity |
| Size (AWG) | Strand-
ing | Insul. Thick. (mils) | Size (AWG) | Strand-
ing | Single Phase Cond. | Comp-
lete Cable | Direct Burial | In Ducts |
| TRIPLEXED WITH YELLOW EXTRUDED STRIPE NEUTRAL |
| Erskine | 6 | 7 | 60 | 6 | 7 | 298 | 644 | 134 | 95 | 70 |
| Vassar | 4 | 7 | 60 | 4 | 7 | 345 | 745 | 191 | 125 | 90 |
| Stephens | 2 | 7 | 60 | 4 | 7 | 403 | 870 | 249 | 165 | 120 |
| Ramapo | 2 | 7 | 60 | 2 | 7 | 403 | 870 | 278 | 165 | 120 |
| Brenau | 1/0 | 9 | 80 | 2 | 7 | 512 | 1106 | 387 | 215 | 160 |
| Bergen | 1/0 | 9 | 80 | 1/0 | 9 | 512 | 1106 | 441 | 215 | 160 |
| Converse | 2/0 | 11 | 80 | 1 | 9 | 555 | 1199 | 478 | 245 | 180 |
| Hunter | 2/0 | 11 | 80 | 2/0 | 11 | 555 | 1199 | 535 | 245 | 180 |
| Hollins | 3/0 | 17 | 80 | 1/0 | 9 | 603 | 1302 | 581 | 280 | 205 |
| Rockland | 3/0 | 17 | 80 | 3/0 | 17 | 603 | 1302 | 651 | 280 | 205 |
| Sweetbriar | 4/0 | 18 | 80 | 2/0 | 11 | 658 | 1421 | 709 | 315 | 240 |
| Monmouth | 4/0 | 18 | 80 | 4/0 | 18 | 658 | 1421 | 796 | 315 | 240 |
| Pratt | 250 | 26 | 95 | 3/0 | 17 | 732 | 1581 | 853 | 345 | 265 |
| Wesleyan | 350 | 37 | 95 | 4/0 | 18 | 831 | 1795 | 1118 | 415 | 320 |
| Holyoke | 500 | 37 | 95 | 300 | 37 | 980 | 2117 | 1545 | 495 | 395 |
| Rider | 500 | 37 | 95 | 350 | 37 | 980 | 2117 | 1598 | 495 | 395 |
| Fairfield | 750 | 61 | 95 | 500 | 61 | 980 | 2317 | 1646 | 550 | 450 |
The Triplex Aluminum Cable URD cable consists of three individual conductors concentrically assembled together. The conductors can be laid parallel to one another if so specified. The cable comes with 2 phase conductors and one neutral conductor. The conductors are all insulated in a black polyethylene jacket and the neutral messenger is marked with a yellow line for identification. The conductors are made with 1350-H19 aluminum alloy. This alloy is composed of at least 99.5% aluminum with added elements such as zinc, copper, and silicon. The additional elements enhance the strength of the alloy without compromising the corrosion resistant qualities of the aluminum.
Triplex Aluminum Cable URD is designed for secondary distribution. Secondary distribution occurs after the power has been received by the transformer and reduced to utilization voltage, a safe voltage for residential use. This cable can be installed in ducts or be used in direct burial. For installation in mild climates, standard polyethylene can tolerate temperatures up to 75°C. For hotter, more arid regions, the cross-linked polyethylene jacket is preferred because it can handle temperatures up to 90°C.
