| Prod Model: |
EP2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Low Frequency Pure Sine Wave Power Inverter |
| Rated Power: |
300W-1000W |
| Battery Voltage: |
12V / 24V |
| AVR Function: |
Yes |
| Display: |
LED/LCD |
| Weight: |
36kg |
| Max Current: |
25A |
| Size: |
Size: 500*260*455mm |
| Warranty: |
12months |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
air conditioner |
| Brand: |
OEM or Must |
Product Description

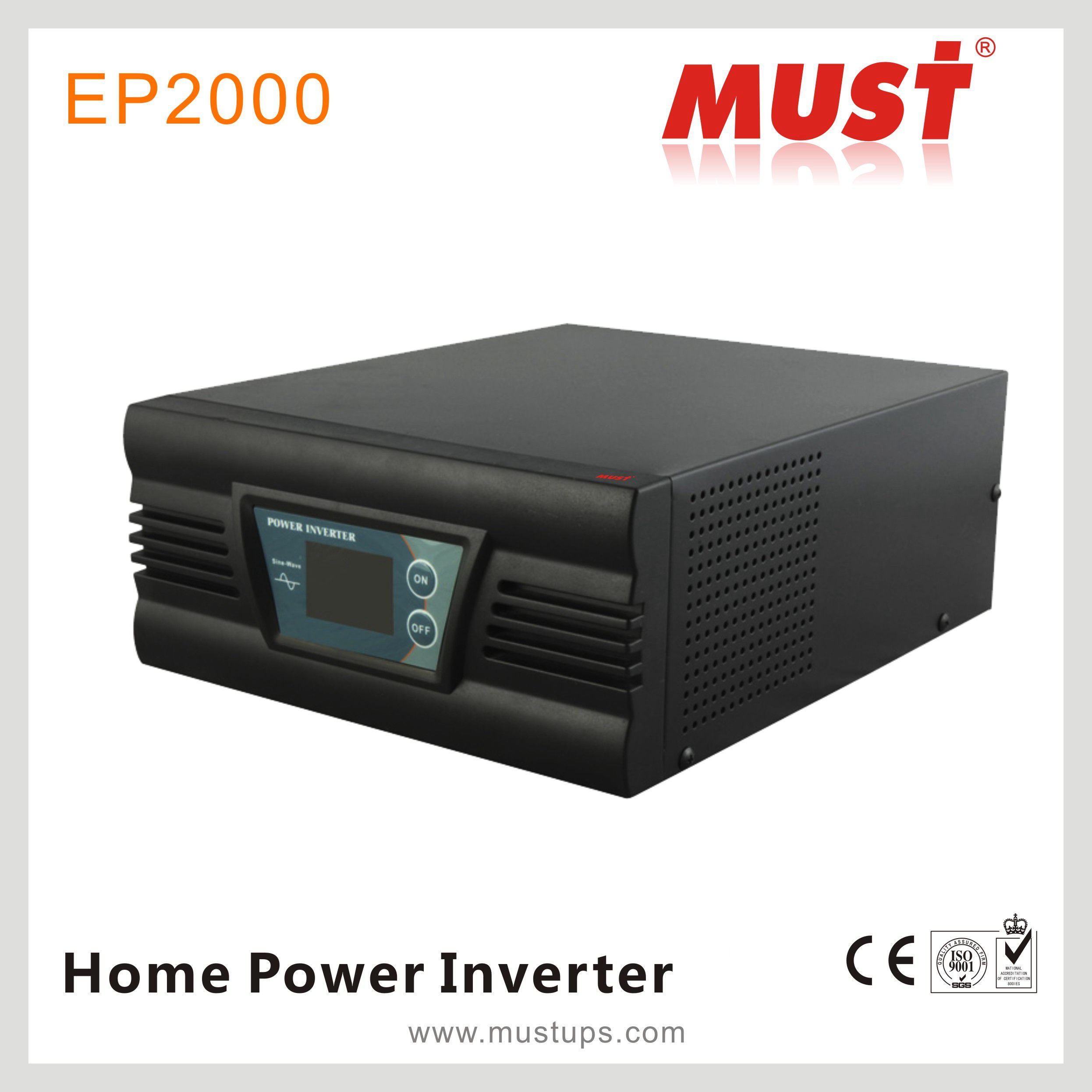

300W 500W 600W 800W 1000W Rack Mount Low Frequency Power Inverter
--------Main Features of this model EP2000:
* Pure sine-wave output;
* 25A battery charge current;
* Superior performance from CPU control technology;
* Fast Action AC Synchronized Transfer Switch
* Wide range of input voltage, accurate output, AVR function;
* Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
* Easy to check with inverter condition with concise LCD indication.
--------Full specifications of EP2000:
MODEL | PT600 | PT1000 | PT1200 | PT1500 | PT2000 | PT3000 | PT3600 | PT4000 | PT5000 |
| Rated capaclty(W) | 600W | 1000W | 1200W | 1500W | 2000W | 3000W | 3600W | 4000W | 5000W |
| INPUT |
| Phase | Single |
| Voltage | 100/110/120/127/220/230VAC(+25%,-35%) | 100/110/120/127/220/230VAC±20% |
| Frequency Range | 60/50±10%(auto sensing) |
| OUTPUT |
| Phase | Single |
| Voltage (Batt Mode) | 100/110/120/127/220/230VAC/240VAC |
| Frequency Range(Batt Mode) | 60/50±0.2Hz |
| Transfer Time | Typical 2-6ms ,10ms max |
| waveform | Pure Sine Wave |
| BATTERY |
| Recharge Current(S) | 25Amax |
| Nominal DC input voltage | 12VDC | 12/24VDC | 24VDC | 24VDC | 24/48VDCVDC | 48VDC | 48VDC | 96VDC |
| INDICATORS |
| LCD/LED | Optional |
| PROTECTION |
| Overload | IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds
IPS automatically resume work if overload comes back to rated load |
| Short circuit | Cut off immediately |
| ALARM |
| Battery back-up | Sounding every 4 second |
| Low Battery | Sounding every second |
| Overload | Audible alarm |
| Fault | Continuously sounding |
| OPERATING ENVIRONMENT |
| Humidity | 0-90%RH @-5-55°C(non-condenslng) |
| Noise Level | Less than 60dB |
| Appearance |
| External Size(mm)L*W*H | 375*130*190 | 452*192*338 | 500*260*455 |
| Carton Size(mm)L*W*H | 478*463*315(2 Piece) | 584*335*495(1 Piece) | 545*345*535(1 Piece) |
| Unit weight(kg/pc) | 10 | 13.2 | 17 | 24.2 | 27.4 | 29.5 | 33 | 33 | 35/52 |
| Gross weight(kg/ctn) | 22.6 | 29 | 19.7 | 26.9 | 30.1 | 33.2 | 35.7 | 35.7 |
--------MUST Power Ltd brief introduction:
1) Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
2) Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
3) Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.
--------Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea
---------Must Power Ltd service:
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
---------Answers to frequency questions:
1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
Contact information:
Heaven Lee
Mobile phone: +86 13823339627
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
