| Prod Model: |
PLD600-SMT |
| Dimming Model: |
0-10V/PWM/Clock/Rset /DMX |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
Conventional Step-down Transformer |
| Power Supply Voltage: |
90VAC-305VAC |
| Brand: |
Fsp-Powerland |
Product Description

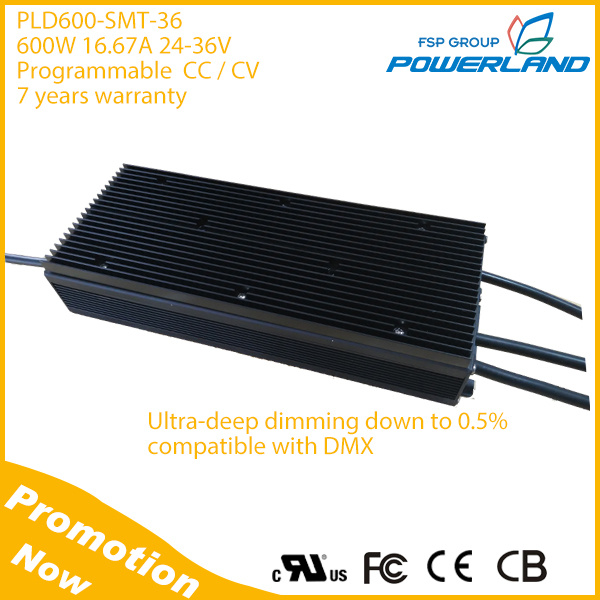

600W Outdoor Programmable Constant Current / Constant Voltage Led Driver
UL cUL List
0-10V / PWM / Rset / Clocking / DMX Dimming
Ultra-deep dimming down to 0.5%
PLD600-SMT series offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 12.50A/16.67A, and designed for 0(0.05)-10V /PWM/Rset/Clock/ DMX ultra-deep dimming applications. ApplicationsOutdoor & Indoor Led Lights
Led lights with flexible current settings
Parking lights and architecture decoration lights
Led horticulture lights
Led fishing lightsSpecificationInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 600W | 24V
…
58.8V | 12.50A
..
16.67A | 96% | 90ºC | 6.5A | 680W | <20% | >0.95 |
Min. Operating temperature @-40ºC
12V/100mA Auxiliary output(optional)
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, External resistor, Clock, DMX dimming
Universal input voltage:108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 3kV. L/N-GND 6kV
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specifications | Model |
PLD600-SMT-36
|
PLD600-SMT-54
|
| Output Voltage |
24~36V
|
36~58.8V
|
| Output Current |
16.67A
| 12.50A |
Output AUX Power Voltage (Optional) | 12V | 12V |
Output AUX Power Current (Optional) | 0-100mA | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock, DMX |
Current Programmable
| Yes |
Output Power
| 600W | 600W |
Max. Current Ripple
| ±10% |
±10%
|
Voltage Range
|
108~305Vac
|
108~305Vac
|
Frequency Range
|
47~63Hz
|
47~63Hz
|
Max. Input Current
| 6.5A |
6.5A
|
Max. Input Power
|
680W
|
680W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
95.5%
| 96.0% |
Max. Open Circuit Voltage
|
39V
| 59.5V |
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
3kV/6kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 280x113x50.5 mm (11.02x4.45x1.99inch) |
Mounting Length
|
292 mm (11.50inch)
|
Overall Length
| 304 mm (11.97 inch) |
Weight
|
2.9 kg ( 6.40lb)
|
Life Time
| 100,000 hours @ full load, 70ºCTcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specification

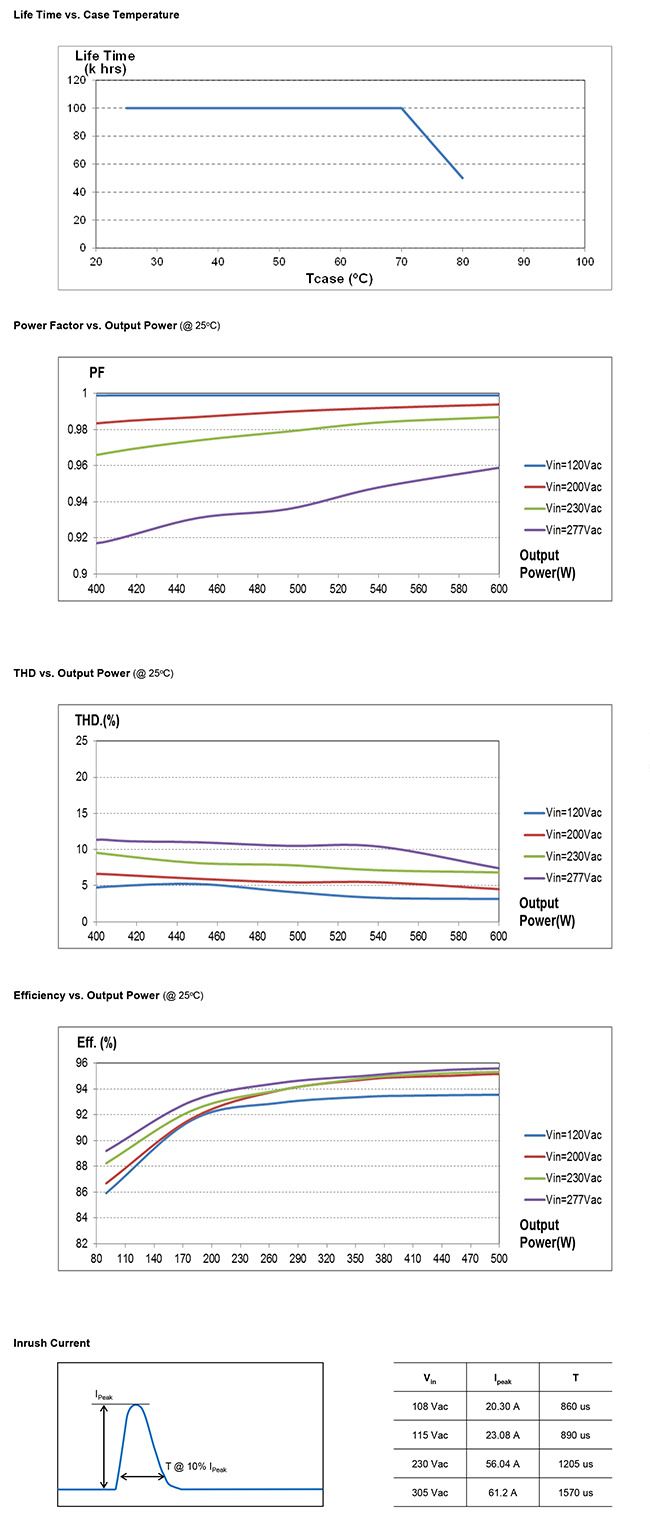

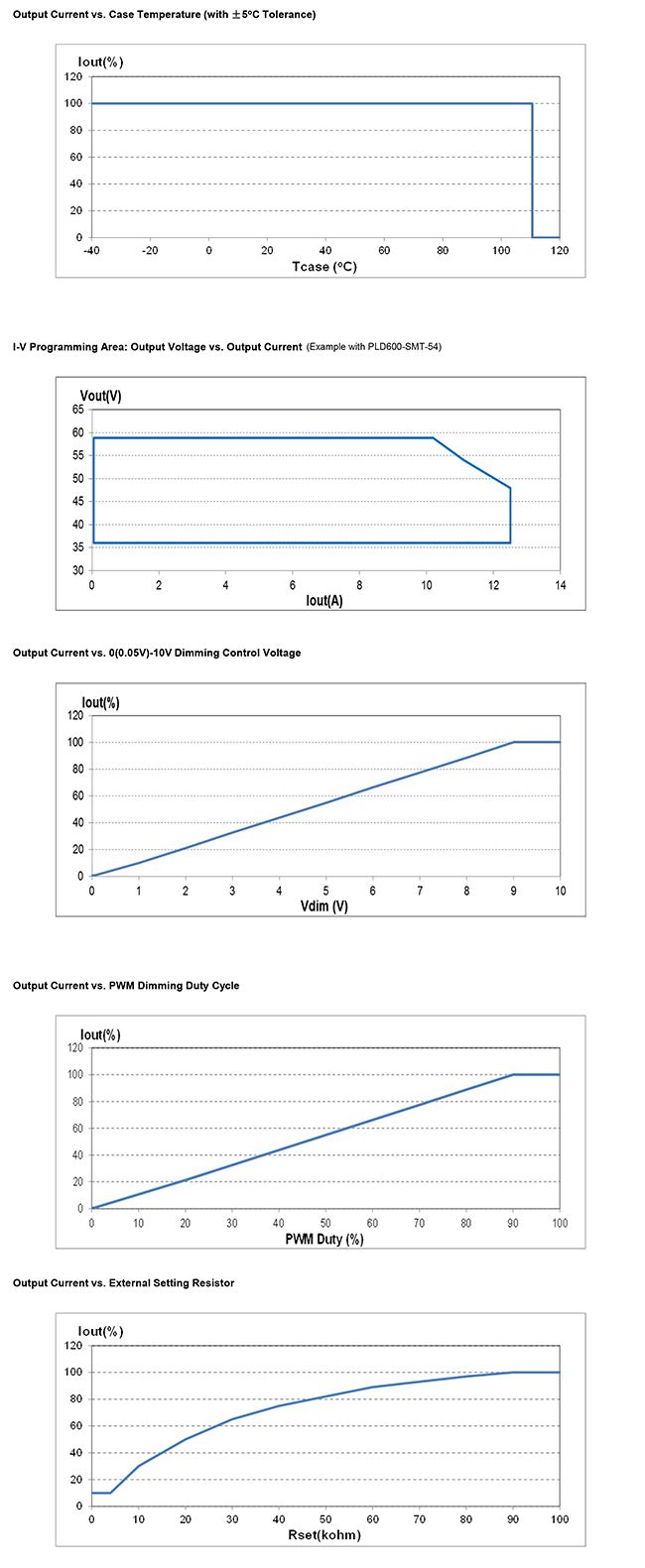

Performance Characteristics (Test wtih PLD600-SMT-54)
