| Prod Model: |
GTI601600Y |
| Input Voltage: |
22-60VDC |
| Output Voltage: |
90-140VAC |
| Color: |
Golden |
| Energy Type: |
Solar |
| Featured Refinements: |
Grid Tie Inverter |
| Upc: |
Does Not Apply |
| Frequency: |
Does Not Apply |
Product Description
Color : Golden

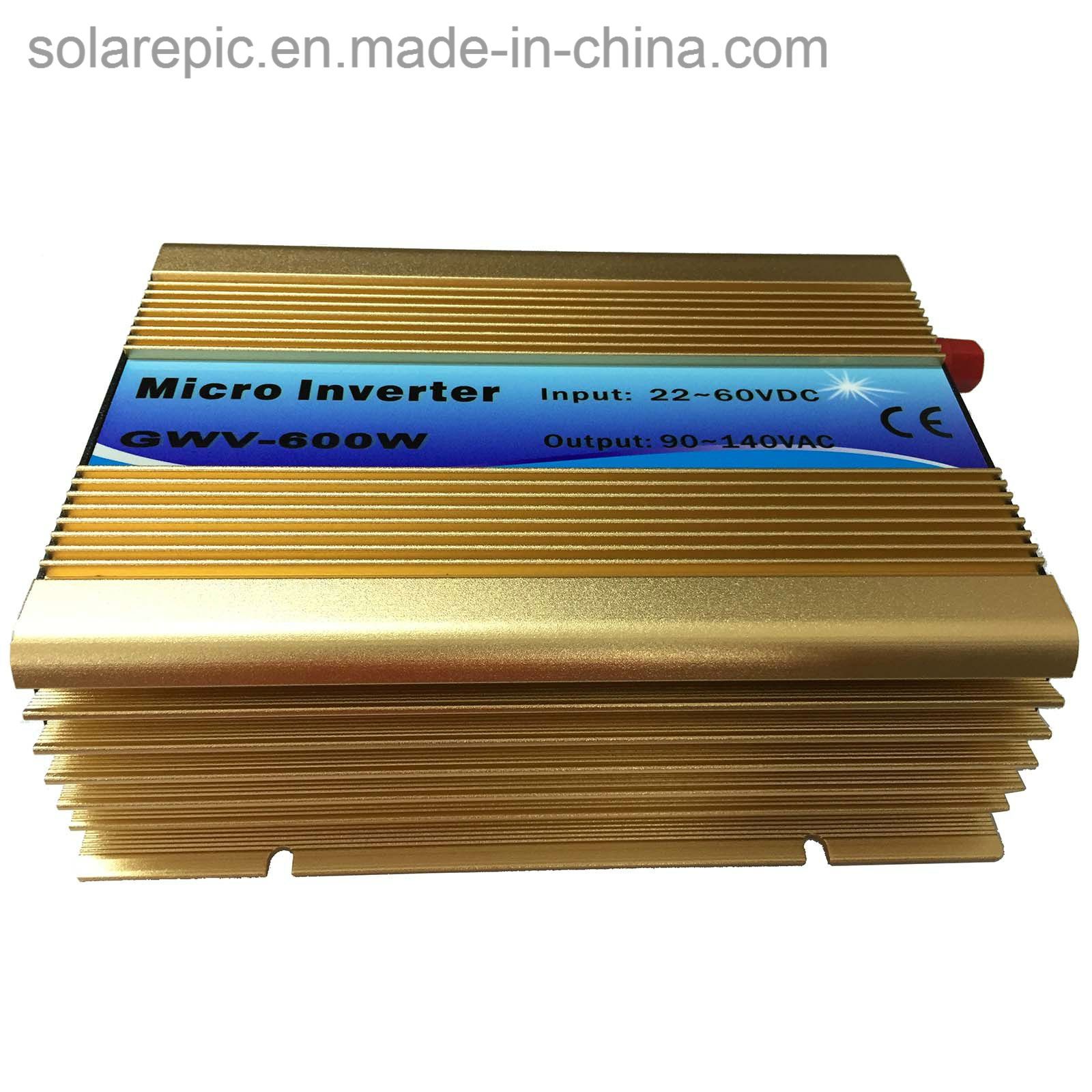

Grid tie inverter, 600W/500W/400W/300W/200W.
DC22V-60V to AC110V or 230V,50Hz/60Hz(Auto control).
Fit for 24V/30V/36V 60cells and 72cells solar panel.
Certification : CE,ROHS
Smart Microinverter can be easily placed and attached to the rack underneath of PV module. No need spaces for independent installation and low voltage DC wire connects from the PV module to Smart Microinverter can eliminate the risk of high DC voltage. Distributed modularization design philosophy for Smart Microinverter insures the productiveness of the whole system and will not affect by a single point of failure. Each Smart Microinverter is individually connected to each PV module in the array. This unique configuration means that an individual Maximum Peak Power Point Tracker (MPPT) controls each PV modules and insures that the maximum power available from each PV module is exported to the utility grid regardless of the performance of the other PV modules in the array which may be affected by shading, soiling, orientation or mismatch, etc. Smart Microinverter insures top performance for maximizing energy production from the whole PV system and gets return on investment in less time.Advantages of Smart Microinverter1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
2. Creative MPPT technology, efficiency more than 99%, faster reaction, more sensitive of reaction and more reliable of Maximum power point locking.
3. Parallel modular design, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
4. Adopting high-frequency isolation transformer type, high efficiency, and high security.
5. Perfect electrical protection function.
6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
7. Getting electronic circuit design, appearance design and other core technology patents.
8. Wide input voltage (22-60VDC), suit for different DC power supply. Smart Grid Tie Microinverter Technical Parameters:
(Compatible with 60 cells solar panel which Vmp is26-30V as well as Voc is 34-38V.)(Compatible with 72 cells solar panel which Vmp is35-37V as well as Voc is 44-46V.) | Power | 300W | 400W | 500W | 600W |
| Solar panels | ≥300W | ≥400W | ≥500W | ≥600W |
| DC input range | 22-60VDC |
| MPPT Voltage | 25-48V |
| DC MAX current | 20A | 30A | 45A | 50A |
| AC MAX output | 330W | 430W | 550W | 650W |
| AC output range | 120VAC(90V-140V) or 230VAC(190-260VAC) |
| Frequency range | 50Hz/60Hz(Auto control) |
| Power Factor | >97.5% |
| THD | <5% |
| Phase Shift | <2% |
| Efficiency | 120VAC(90-140VAC) |
| Peak Efficiency | >88% | >86% | >85% | >85% |
| Stable Efficiency | >86% | >85% | >84% | >83% |
| Efficiency | 230VAC(190-260VAC) |
| Peak Efficiency | >90% | >88% | >88% | >85% |
| Stable Efficiency | >88% | >86% | >86% | >84% |
| Protection | Islanding; Short-circuit; Converse Connection; Low Voltage;
Over Voltage; Over temperature Protection |
| Work Temperature | -25ºC-65ºC |
| Work Humidity | 0%~90%RH non-condensing |
| Grade of Waterproof | Indoor design |
| Show | LED |
| Cooling | Fan |
| Stand-by Power | 2-3W |
| EMC | EN61000-6-3:2007 EN61000-6-1:2007 |
| Grid Disturbance | EN 50178+EN 62109-1+VDE0126-1-12 |
| Grid Detection | DIN VDE 1026 UL1741 |
| Certificate | CE ROHS |
