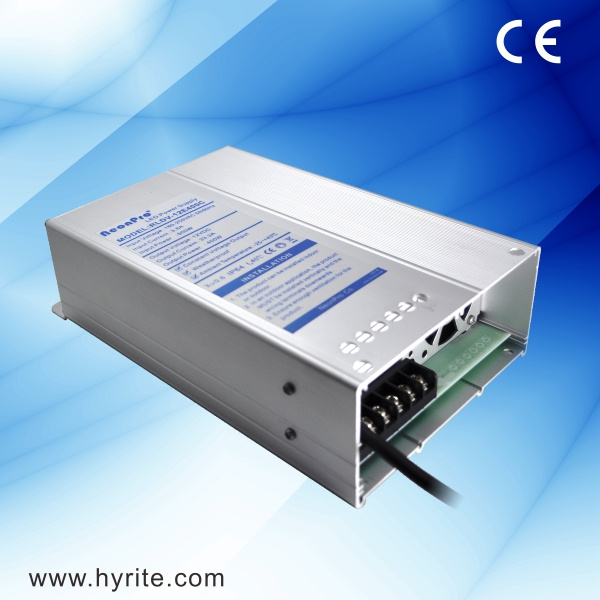

600W High Power Constant Voltage Switching Power Supply

Name: 600W High Power Constant Voltage Switching Power Supply
Brand: all-electronics-online.com
SKU: 772904875
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 26-27.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-12E600C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	500W Constant Voltage Switching Power Supply
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	50A Max
Output Voltage:	12VDC ± 5%
IP Rating:	IP43
Installation:	Outdoor Rainproof
Weight(Kg):	1.05
Packing Information:	20 PCS/ Carton
Cooling:	Built-in Electric Fan
Dimensions(LWH):	14021466 mm
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

Feature of 600W constant voltage RoHS led power supply
1. Aluminum housing, good for thermal removal, longer using life.
2. Good cooling system for 30W-200W RLDV series product, can work without the fan, with longer using life.
3. Large power product (Power more than 200W ) are used the Ball bearing fans for the cooling system (that fan can work more than 3 years), longer life.
4. Rainproof.
5. Efficiency rate: >80%

Application of 600W constant voltage Rohs led power supply
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

Specification of 600W constant voltage Rohs led power supply

Model no.	RLDV-12E600C;RLDV-24E600C
Model series	RLDV
Input voltage	180-250 VAC 50/60 Hz
Power	600 W max
Output type	Constant voltage
Power factor	Low
Efficiency	>89%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12/24 VDC ± 5%
Output current	50 A ;25A Max
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 44
Cooling	Free air convection
Connection input/output	Input:terminal Output: terminal(Four)
Dimensions(LWH)	21414066 mm
Weight(kg)	1.2200
Packing information	20 Pcs/ Carton, G.W 25 KG

FAQ
1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

Contact
Sales Department: Wing Xu
Hyrite Lighting Co.
Tel:+86(757)81200188 (Ext.333); Fax:+86(757)81200369
H.P. 0086-18520900296

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
