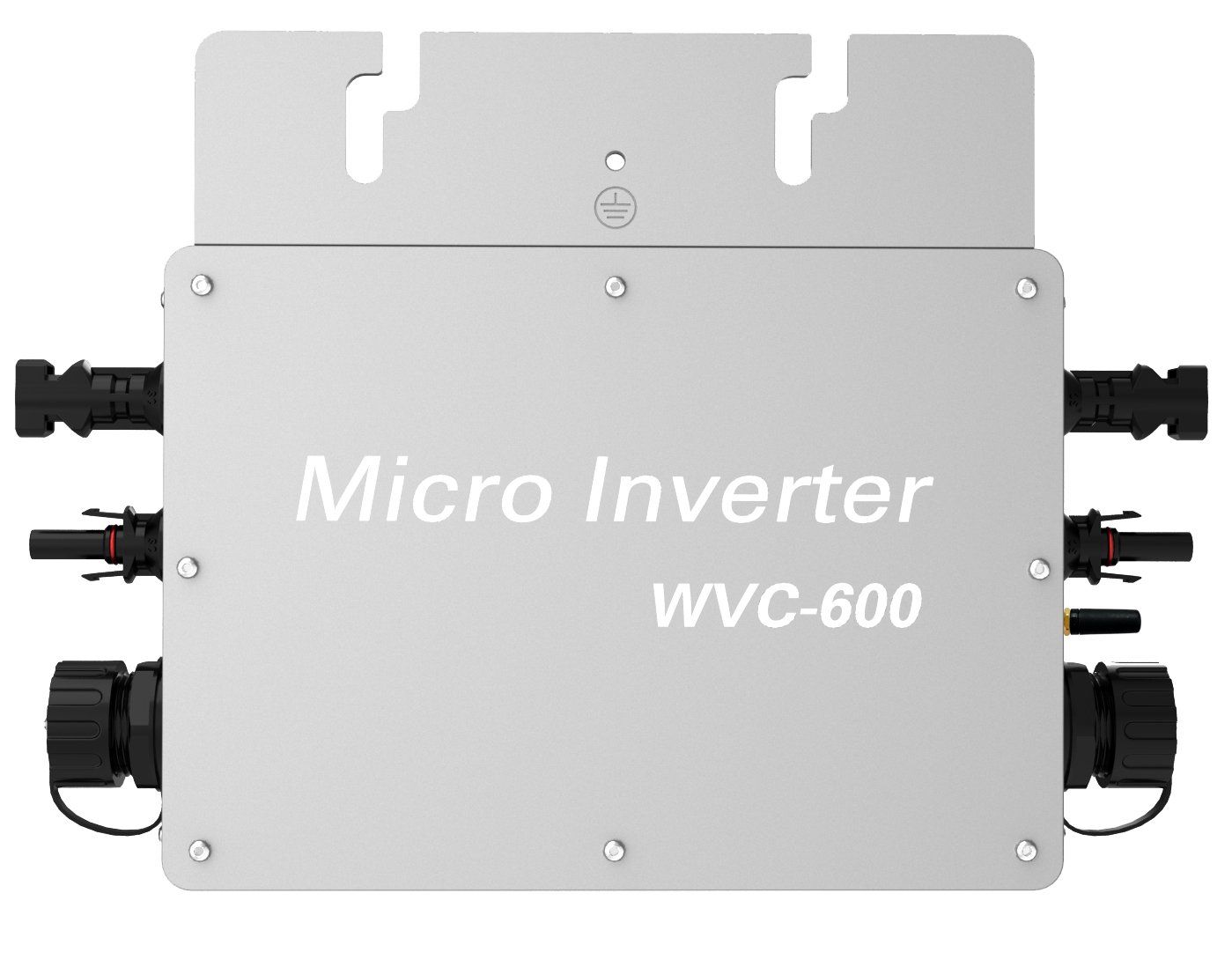

600W MPPT Waterproof Solar Grid Tie Invertedc 22-50V to AC230V Solar Grid Power Inverter

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KD6002
Waterproof Rating:	IP65
Energy Type:	Solar
DC Input Voltage:	22-50VDC
AC Output Voltage:	230V
Featured Refinements:	Grid Tie Inverter
Model:	Waterproof Grid Tie Inverter

Product Description

600W Micro-inverter solar grid system (Power line communications)

IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.

Communication using two modes, Between the inverter and Collector Using power line carrier communication signals, Collector with a PC or other devices to communicate Using RS232 serial port/ WIFI wireless communication. Intelligent monitoring systems, The inverter can collect real-time data, Inverter can be controlled startup / shutdown / power regulation.

Features:

High performance maximum power point tracking (MPPT)
Reverse power transmission
Intelligent monitoring management
Input /output is fully isolated to protect the electrical safety
Multiple parallel stacking
Digital control system
Simplify maintenance (user serviceable)
Operation and maintenance costs low
Flexible installation

600 Parameters

Input Data			WVC600-120VAC/230VAC
Recommended input power			500-600Watt
Recommend the use of PV modules			*2300W/Vmp>34V/Voc<50V**
Maximum input DC voltage			50V
Peak power tracking voltage			25-40V
Operating Voltage Range			17-50V
Min / Max start voltage			22-50V
Maximum DC short current			40A
Maximum Input Current			25A
Output Data	@120VAC			@230VAC
Peak power output	600Watt			600Watt
Rated output power	550Watt			550Watt
Rated output current	4.58A			2.3A
Rated voltage range	80-160VAC			180-260VAC
Rated frequency range	57-62.5Hz			47-52.5Hz
Power factor	>96%			>96%
Maximum units per branch circuit	6PCS(Single-phase)			12PCS(Single-phase)
Output Efficiency	@120VAC			@230VAC
Static MPPT efficiency	99.5%			99.5%
Maximum output efficiency	92 %			92%
Night time power consumption	<50mW Max			<70mW Max
THD	<5%			<5%
Exterior
Ambient temperature		-40ºC to +60ºC
Operating temperature range (inverter inside)		-40ºC to +82ºC
Dimensions (WxHxD)		289mm×200mm×38mm
Weight		1.53kg
Waterproof Rating		IP65
Cooling		Self-cooling
Feature
Communication Mode		Power Line
Power transmission mode		Reverse transfer, load priority
Monitoring System		Lifetime free
Electromagnetic compatibility		EN50081.part1 EN50082.part1
Grid disturbance		EN61000-3-2 Safety EN62109
Grid detection		DIN VDE 1026 UL1741
Certificate		CEC,CE National patent technology

* Note: The monitoring software can monitor multiple threads simultaneously 6 PCS power line acquisition
simultaneously monitor 600 inverters.

Each WVC Power Line Modem monitoring 100 inverters
onitoring system simultaneously collect real-time data from 6 WVC power line Modem by 6 threads
