| Prod Model: |
P6SMB200A P6SMB180A P6SMB170A |
| Peak Pulse Power: |
600W |
| Stand-off Voltage: |
6.8-440 V |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
| Model: |
P6SMB150A/Ca |
| Batch Number: |
2016+ |
| Brand: |
Sy |

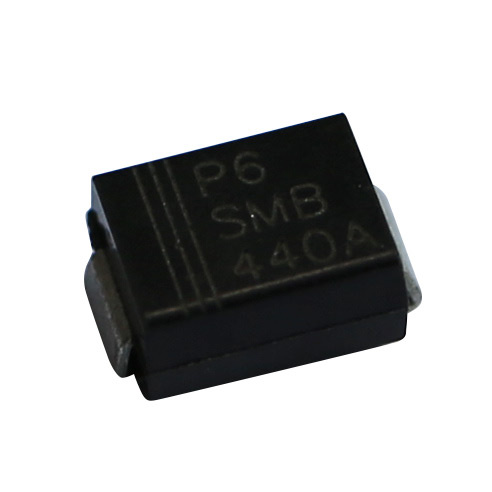

Product Description

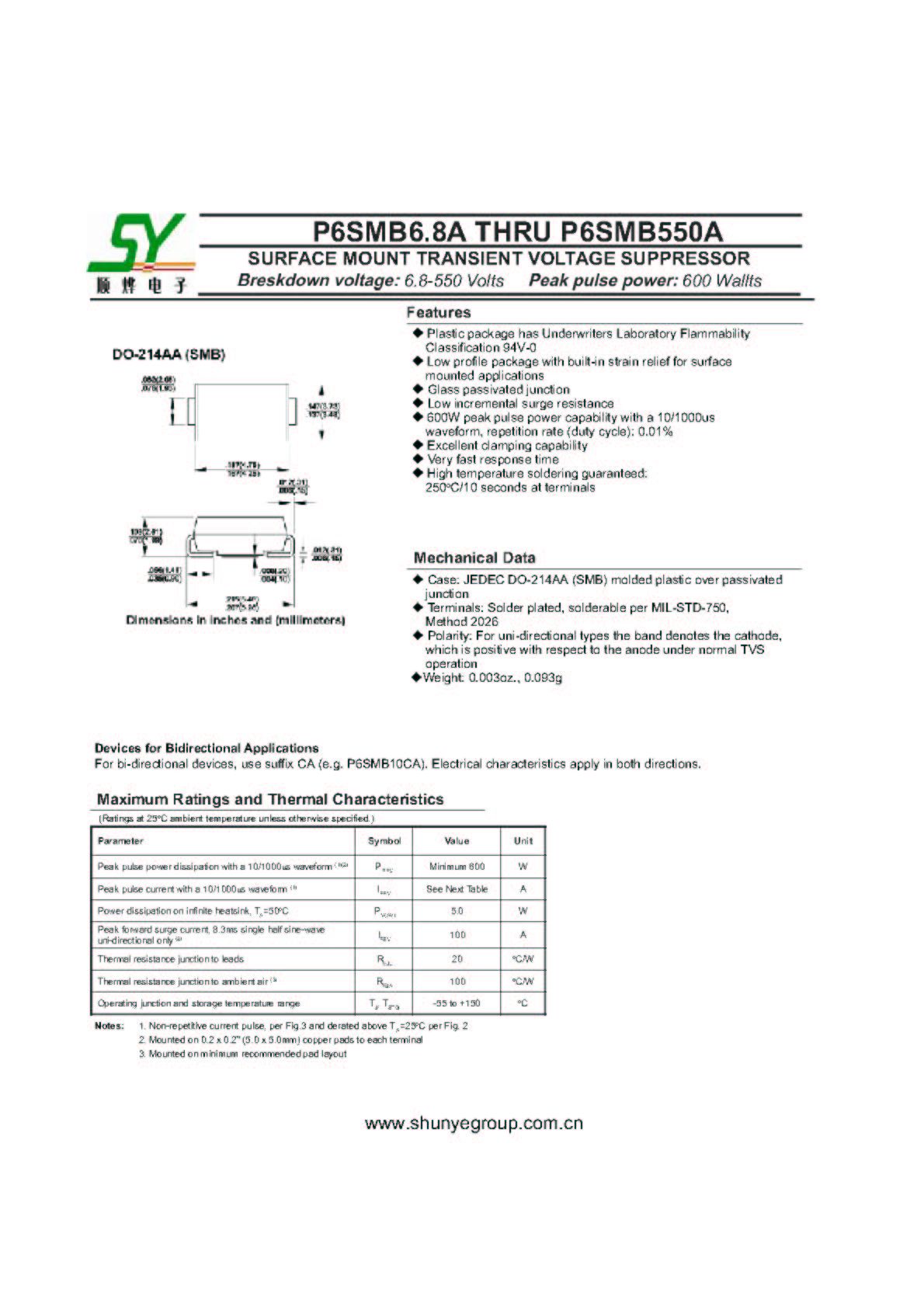

600W TVS P6SMB6.8CA TO P6SMB440A1.Datasheet:
2.Products list: | SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS |
| TYPE | Breakdown Voltage | Stand-off
Voltage | Maximum
Reverse Leakage
@VRWM | Maximum
Peak Pulse
Current | Maximum
Clamping
Voltage@IPPM | Maximum
Temperature
Coefficient
of V(BR) | Power
Dissipation | Package |
|
|
| VBR@IT | IT | VRWM | IR | IRSM | VRSM | Pd |
| Min | Max | mA | V | μA | A | V | %/ºC | W |
| P6SMB6.8A | 6.45 | 7.14 | 10 | 5.80 | 1000 | 57.0 | 10.5 | 0.057 | 600 | DO-214AA
(SMB) |
| P6SMB7.5A | 7.13 | 7.88 | 10 | 6.40 | 500 | 53.0 | 11.3 | 0.061 | 600 |
| P6SMB8.2A | 7.79 | 8.61 | 10 | 7.02 | 200 | 50.0 | 12.1 | 0.065 | 600 |
| P6SMB9.1A | 8.69 | 9.55 | 1.0 | 7.78 | 50 | 45.0 | 13.4 | 0.068 | 600 |
| P6SMB10A | 9.50 | 10.5 | 1.0 | 8.55 | 10 | 41.0 | 14.5 | 0.073 | 600 |
| P6SMB11A | 10.5 | 11.6 | 1.0 | 9.40 | 5.0 | 38.0 | 15.6 | 0.075 | 600 |
| P6SMB12A | 11.4 | 12.6 | 1.0 | 10.2 | 5.0 | 36.0 | 16.7 | 0.078 | 600 |
| P6SMB13A | 12.4 | 13.7 | 1.0 | 11.1 | 5.0 | 33.0 | 18.2 | 0.081 | 600 |
| P6SMB15A | 14.3 | 15.8 | 1.0 | 12.8 | 5.0 | 28.0 | 21.2 | 0.084 | 600 |
| P6SMB16A | 15.2 | 16.8 | 1.0 | 13.6 | 5.0 | 27.0 | 22.5 | 0.086 | 600 |
| P6SMB18A | 17.1 | 18.9 | 1.0 | 15.3 | 5.0 | 24.0 | 25.2 | 0.088 | 600 |
| P6SMB20A | 19.0 | 21.0 | 1.0 | 17.1 | 5.0 | 22.0 | 27.7 | 0.090 | 600 |
| P6SMB22A | 20.9 | 23.1 | 1.0 | 18.8 | 5.0 | 20.0 | 30.6 | 0.092 | 600 |
| P6SMB24A | 22.6 | 25.2 | 1.0 | 20.5 | 5.0 | 18.0 | 33.2 | 0.094 | 600 |
| P6SMB27A | 25.7 | 28.4 | 1.0 | 23.1 | 5.0 | 16.0 | 37.5 | 0.096 | 600 |
| P6SMB30A | 28.5 | 31.5 | 1.0 | 25.6 | 5.0 | 14.4 | 41.4 | 0.097 | 600 |
| P6SMB33A | 31.4 | 34.7 | 1.0 | 28.2 | 5.0 | 13.2 | 45.7 | 0.098 | 600 |
| P6SMB36A | 34.2 | 37.8 | 1.0 | 30.8 | 5.0 | 12.0 | 49.9 | 0.099 | 600 |
| P6SMB39A | 37.1 | 41.0 | 1.0 | 33.3 | 5.0 | 11.2 | 53.9 | 0.100 | 600 |
| P6SMB43A | 40.9 | 45.2 | 1.0 | 36.8 | 5.0 | 10.1 | 59.3 | 0.101 | 600 |
| P6SMB47A | 44.7 | 49.4 | 1.0 | 40.2 | 5.0 | 9.3 | 64.8 | 0.101 | 600 |
| P6SMB51A | 48.5 | 53.6 | 1.0 | 43.6 | 5.0 | 8.6 | 70.1 | 0.102 | 600 |
| P6SMB56A | 53.2 | 58.8 | 1.0 | 47.8 | 5.0 | 7.8 | 77.0 | 0.103 | 600 |
| P6SMB62A | 58.9 | 65.1 | 10 | 53.0 | 5.0 | 7.1 | 85.0 | 0.104 | 600 |
| P6SMB68A | 64.6 | 71.4 | 1.0 | 58.1 | 5.0 | 6.5 | 92.0 | 0.104 | 600 |
| P6SMB75A | 71.3 | 78.8 | 1.0 | 64.1 | 5.0 | 5.8 | 103 | 0.105 | 600 |
| P6SMB82A | 77.9 | 86.1 | 1.0 | 70.1 | 5.0 | 5.3 | 113 | 0.105 | 600 |
| P6SMB91A | 86.5 | 95.5 | 1.0 | 77.8 | 5.0 | 4.8 | 125 | 0.106 | 600 |
| P6SMB100A | 95.0 | 105 | 1.0 | 85.5 | 5.0 | 4.4 | 137 | 0.106 | 600 |
| P6SMB110A | 105 | 116 | 1.0 | 94.0 | 5.0 | 4.0 | 152 | 0.107 | 600 |
| P6SMB120A | 114 | 126 | 1.0 | 102 | 5.0 | 3.6 | 165 | 0.107 | 600 |
| P6SMB130A | 124 | 137 | 1.0 | 111 | 5.0 | 3.3 | 179 | 0.107 | 600 |
| P6SMB150A | 143 | 158 | 1.0 | 128 | 5.0 | 2.9 | 207 | 0.108 | 600 |
| P6SMB160A | 152 | 168 | 1.0 | 136 | 5.0 | 2.7 | 219 | 0.108 | 600 |
| P6SMB170A | 162 | 179 | 1.0 | 145 | 5.0 | 2.6 | 234 | 0.108 | 600 |
| P6SMB180A | 171 | 189 | 1.0 | 154 | 5.0 | 2.4 | 246 | 0.108 | 600 |
| P6SMB200A | 190 | 210 | 1.0 | 171 | 5.0 | 2.2 | 274 | 0.108 | 600 |
| Notes:suffix with "CA" means bi-directional(e.g,P6SMB6.8CA), electrical characteristics apply in both directions. | |
| | |
| | |
3.Package:

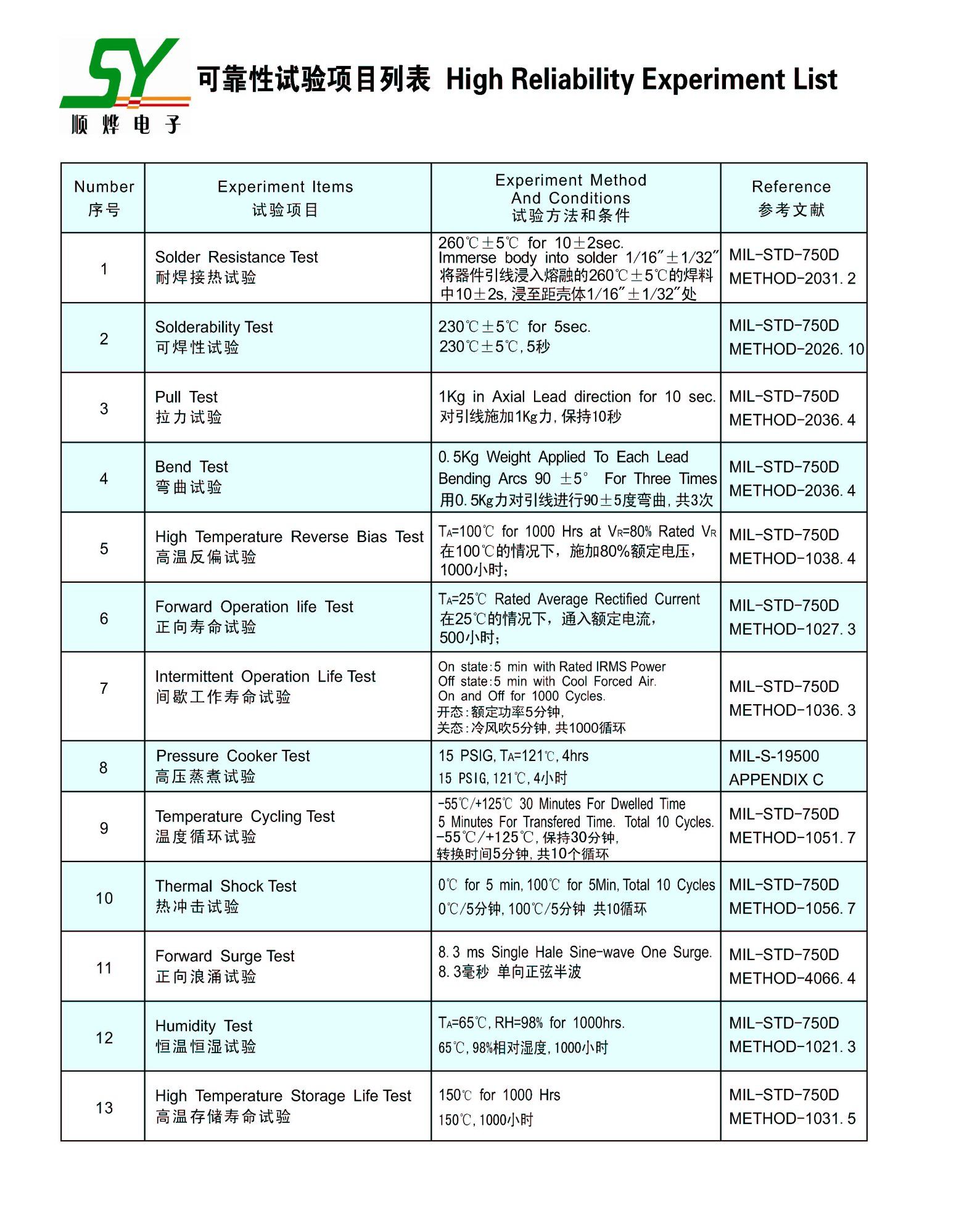

4.Reliability Test List:
