602/604 Fast Thermocouple Tips with S/B/R Type

Name: 602/604 Fast Thermocouple Tips with S/B/R Type
Brand: all-electronics-online.com
SKU: 799837025
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	US $ 0.48-0.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KS602/KS604
Type:	S/R/B
Item:	602/604
Installation Type:	Fast Thermocouple Tips
IP Rating:	Fast Thermocouple Tips

Product Description

Application: Temperature Sensors for Molten Metal

Wire:Pt-Rh/Wre

Tip:604/602

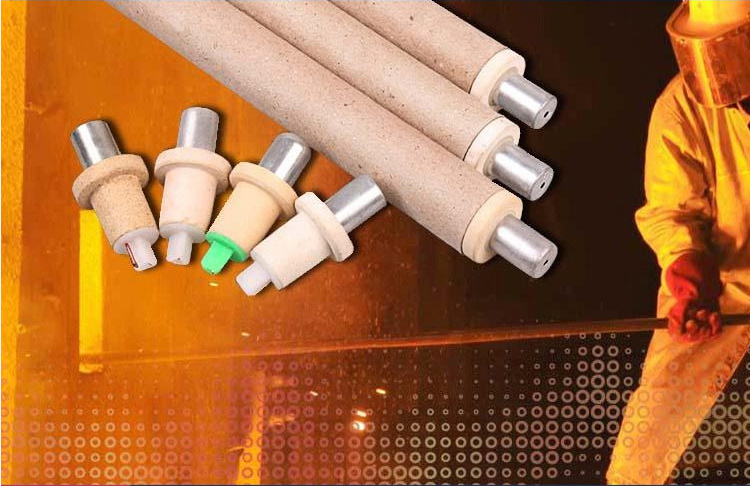

Rapid-response type expendable thermocouple is used for measuring the temperature of molten metal.It has advantage of high accuracy,rapid reaction,reliability and stability.

According the different thermocoupe wire,thermocouple has four type are S,R,B,C,D Type.

Designation	Type	Model	Using range recommended (°C)	Wire diameter(mm)
PtRh10%-Pt	S	KS	1760	0.05
PtRh13%-Pt	R	KR	1760	0.05
PtRh30%-PtRh6%	B	KB	1820	0.05
WRe5%-WRe26%	C	KC(KW5/26)	1820	0.08
WRe3%-WRe25%	D	KD(KW3/25)	1820	0.08

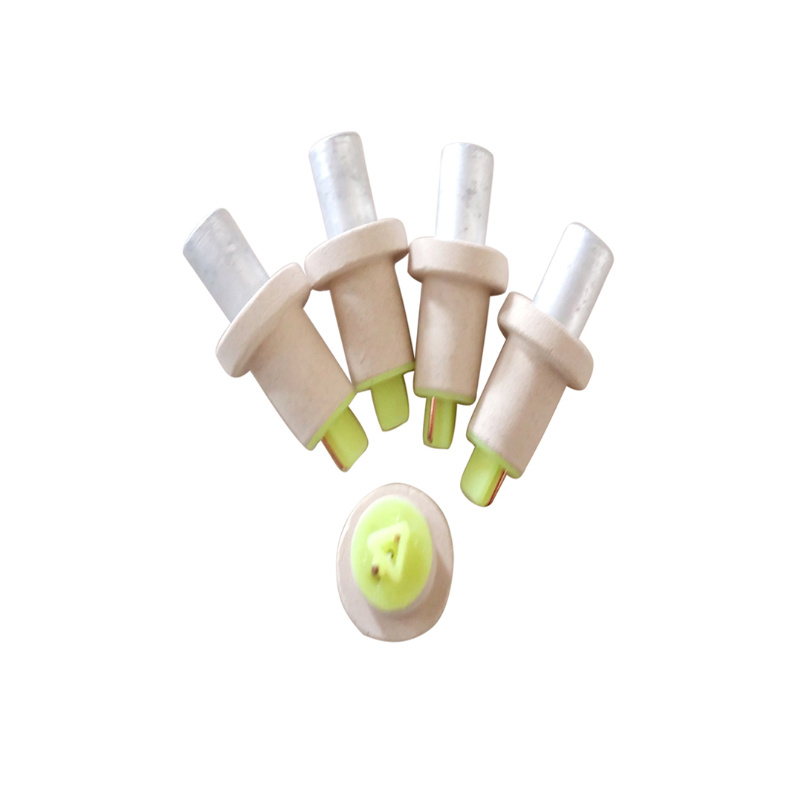

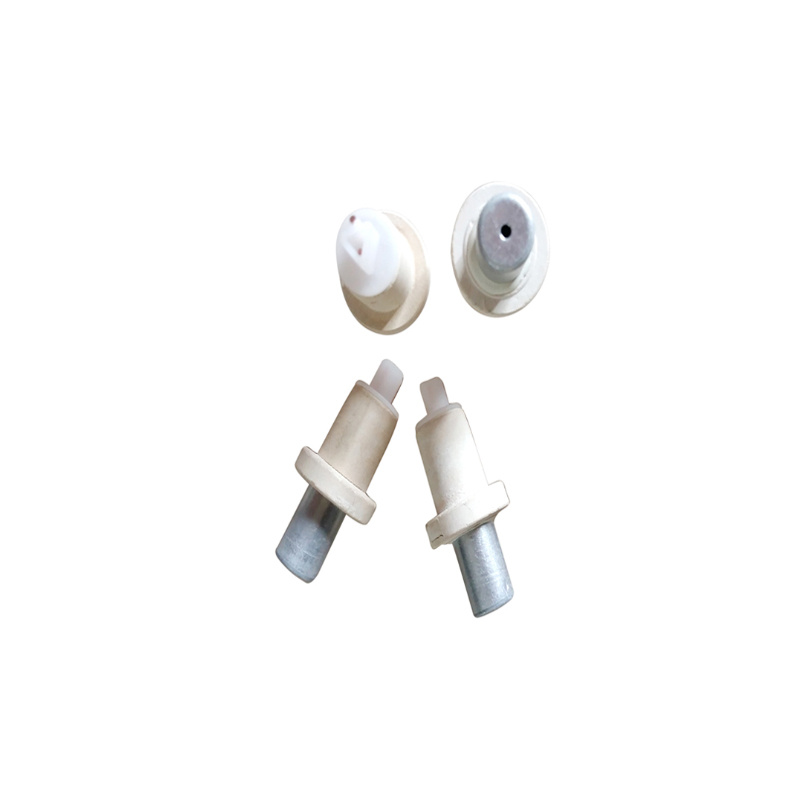

According the different thermocouple connector,thermocouple tip can be classified as 604 and 602 type.

Type	Model
602(Round bottom)	KR/S/B/C/D-602
604(Triangle bottom)	KR/S/B/C/D-604

Accroding the different thermocouple wire tolerance,thermocouple can be classified as common thermocouple wire(P) and precision thermocouple wire(J).

Type	Model	Accuracy
P(common wire)	KR/S/B/C/D-604/602P	±5°c
P(common wire)	KC/D-604/602P	±5°c
J (precisiont wire)	KR/S/B/C/D-604/602J	±2°c
J (precisiont wire)	KC/D-604/602J	---

Note:

1.Response time:less than 5 seconds.

2.Reproducibility:2°C at 1650°C

3.Probe Diameter :ID 18mm OD 30mm

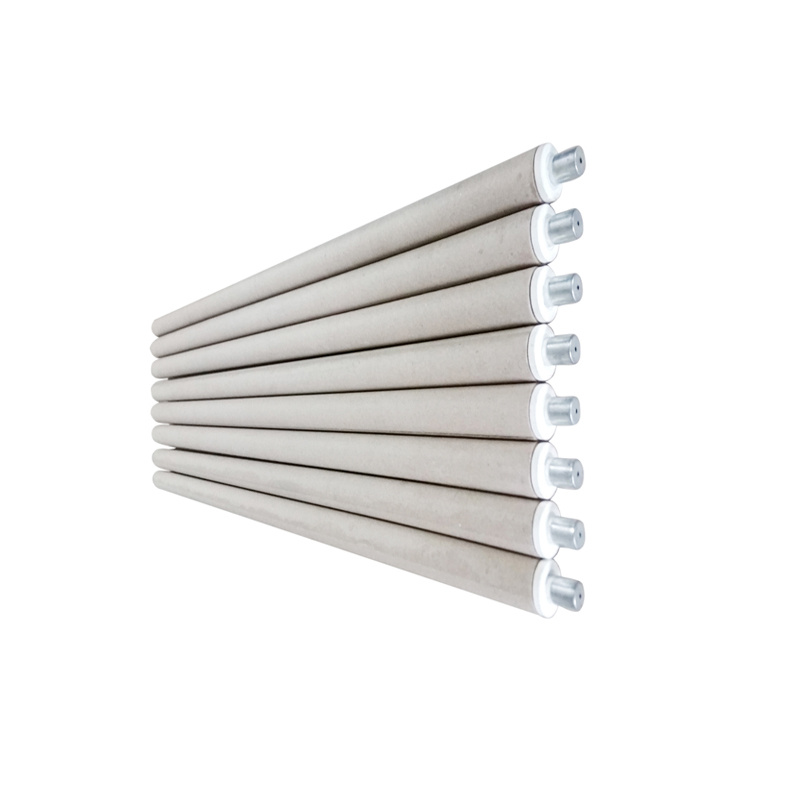

4.Length: L=300~1800mm; (Description: the probe structure size can be designed according to users' requirements.)
