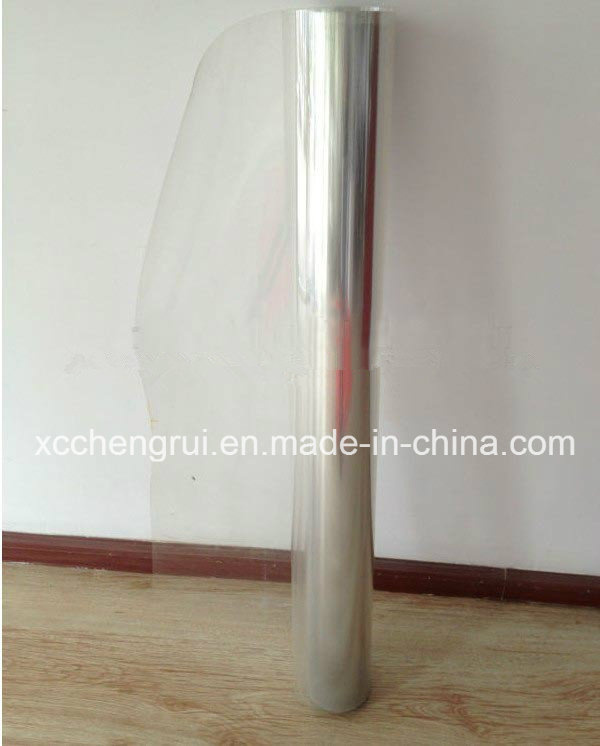

6020 Insulation Material Transparent Polyester Film

Name: 6020 Insulation Material Transparent Polyester Film
Brand: all-electronics-online.com
SKU: 702028782
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 2000/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	6020
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Thickness:	0.025mm-0.35mm
Width:	5mm-1000mm
Form:	in Rolls
Pacage:	Carton
Storage Life---1 Year:	1 Year
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Material:	Pet
Color:	Milk White
Brand:	Chr

Product Description

1. 6020 insulation transparent pet filmTechnical properties:

Heat-resistance:Eclass 120ºC

polyester film is biaxially oriented pet film. 6020 is a transparent film. 6021 is milky white film.
Property:With high dielectric and mechanical property,
Application: it is suitable for electrical insulation, such as slot insulation, ,interurn and liner insualtion ,wrapping insulation for coils and cables, as well as producing insulation laminate meterial.
Thickness(mm): 0.075mm, 0.1mm, 0.125mm, 0.188mm 0.25mm, 0.30mm, 0.35mm
Width:1m Form: in rolls
Package: Carton Storage life---1 year
Offers excellent physical, electrical, and mechanical properties over a wide variety of temperature ranges.

Properties		6020 PET film is biaxially oriented polyethelene terephthalate (PET) film
Properties		Units		Typical Value
Nominal Thickness		μm		15
Thickness Tolerance		μm		±1.5
width				1m,1.38m. width can be cut with special.
Tensile Strength			15		MPa	≥100
			25-100			≥150
			100-190			≥110
			>190			≥110
Elongation			15		%	≥35
			25-50			≥60
			50-250			≥80
Shrinkage			25-190		%	≤3.0
			>190			≤2.0
Line Frequently Electrical Intensity					V/μm	≥174
Volume Resistance Rate					Ω·m	≥1.0×1014
Relative dielectric Strength(50HZ)					/	2.9-3.4
Dielectric dissipation factor					/	≤5.0×10-3
Density					kg/m3	1390±10
Melting Point					°C	≥256
Surface Resistivity					Ω	≥1.0×1013
Electrolytic etching	Ocular Estimate				Grade	A1
	The tensile strength of plain conductor				%	≤2
Dimensional Stability at High temperatures	In Tension				°C	≥200
	Under Pressure					≥200
Long-term heat resistance	Temperature Index				°C	≥115
Storage Require					Store in dry and clean.

cheap 6020 PET film has been approved and the products have passed ROHS test .

2.cheap 6020 PET film is biaxially oriented polyethelene terephthalate (PET) film.

3.cheap 6020 PET film-transparent. 6021 of PET FILM- milky white.

4.cheap 6020 PET film Features and Applications:

- Class E insulation (120) - High mechanical strength and excellent dielectric property.

- As slot , interphase and liner insulation for coils and cables, as well as producing insulating flexible composite material.

5.Available of transparent cheap 6020 PET film: In rolls, in strips

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
