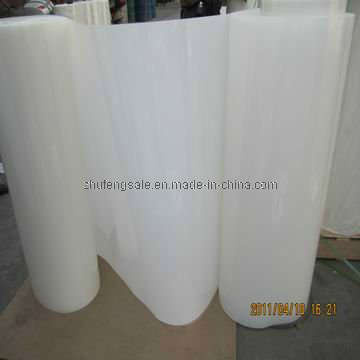

6021 Insulation Film/Polyester Film

Name: 6021 Insulation Film/Polyester Film
Brand: all-electronics-online.com
SKU: 673404152
Availability: InStock
Rating: 5 (43 reviews)

Price:	NegotiableKG
Trade Terms:	FOB,CFR,CIF
Min Order:	300KG
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6021
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Motor
Type:	Insulation Film
Chemistry:	Organic Insulation
Thermal Rating:	E 120
Material:	Insulation Film

Product Description

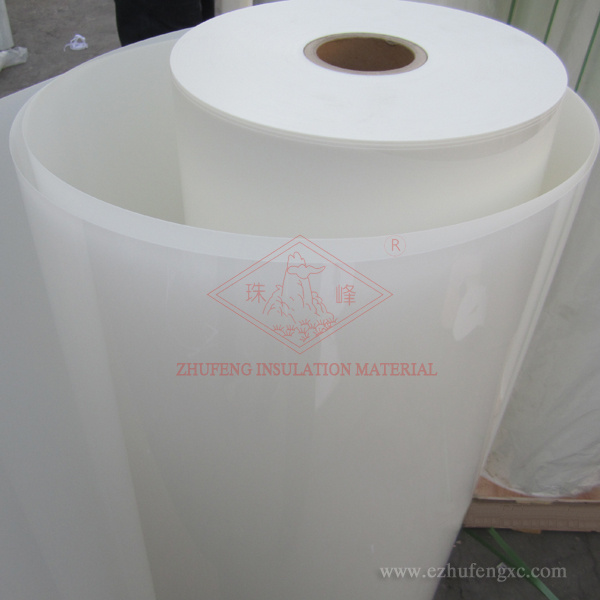

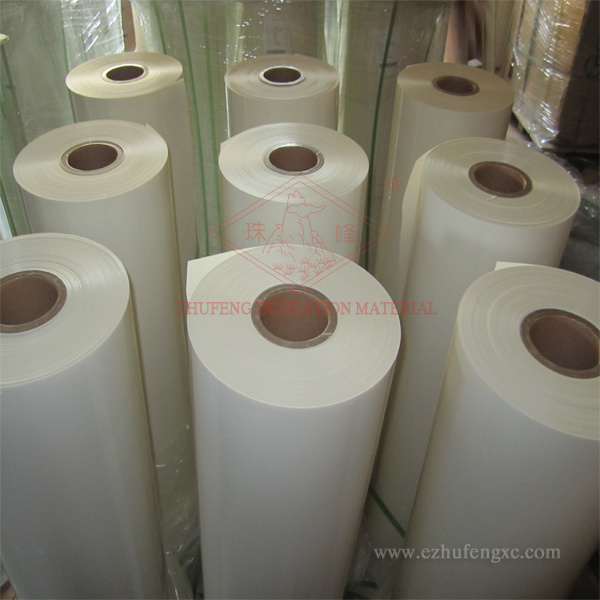

6020&6021 polyester film
It is biaxially oriented pet film. 6020 is a transparent film. 6021 is milky white film.
Property: With high dielectric and mechanical property,
Application: It is suitable for electrical insulation, such as slot insulation, , interurn and liner insualtion, wrapping insulation for coils and cables, as well as producing insulation laminate material.
The specification:
Thickness(mm): 0.075, 0.1, 0.125, 0.188 0.25, 0.030, 0.35mm
Width: 1m, 15mm 20mm 25mm 30mm 1000mm Form: In roll or tape
Color: Milky white, transparent
Pacage: Carton Storage life---1 year

XUCHANG ZHUFENG INSULATION MATERIAL CO., LTD
Technical Data
Product Name:6021 Polyester Film
Color: Milky white color

Item	Index		Unit	Value
1	Thickness		um	100	125	150	188	200	250	300	350
2	Tensile strength	MD	mpa	196	179	180	182	182	171	194	177
	Tensile strength	TD	mpa	200	190	205	193	195	177	146	150
3	Elongation at Break	MD	%	131	137	165	170	176	185	168	192
	Elongation at Break	TD	%	100	114	112	110	106	115	152	125
4	Heat Shringkage(150^OC,30min)	MD	%	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
	Heat Shringkage(150^OC,30min)	TD	%	0.5	0.5	0.5	0.6	0.7	0.5	0.6	0.4
5	Haze		%	25	28	42	45	46	55	59	62
6	Volume resistivity		Ω.m	1.3x10¹⁵
7	Dielectric loss tangent(50Hz)			2.5x10^-3
8	Relative dielectric constant(50Hz)			3.4

Xuchang Zhufeng Insulation Material Co. Ltd, Welcome inquiry our products.

We are manufacture in electrical insulation material which has established Since 1998, we are one of the largest insulation company In China, have exported Europe, Middle East, Aisa and South America. ISO9001, RoHS certification. High quality, excellent service!

Our main produts as below:

1. Felexible composite insulation paper: 6520 fish paper with film, DMD insulation paper, F- DMD insulation paper, NMN nomex insulation paper.

2. Polyester film products: Transparent film and Milky white polyesterfilm

3. Transformer insulation paper: Presspaper, Pressboard(Chipboard), Fish paper, Cable paper, Creap paper,

4. Insulation binding tape: Fiberglass tape, Pure cotton tape

5. Insulation Sleeve: 2715 PVC fiberglass sleeve, 2751 silicon rubber sleeve, 2753

Silicone Varnish sleeve,

6. Insulation Laminated sheet: 3240 Epoxy glass cloth laminated sheet, 3025 phenoli cotton cloth laminated sheet, 3021 phenolic paper laminated sheet.

7. Imprenating fiber cvarnish cloth/tape: 2432, 2450, 2310, 2210
