6021 Milky White Polyester Film

Prod Model:	6021
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East
Thickness:	0.10-0.35mm
Width:	1m
Form:	in Rolls
Heat - Resistance:	E Class 120
Storage Life:	1 Year
Delivery Time:	20days
Application:	Switch Baseplate
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Material:	Pet
Color:	Milky White
Brand:	Chr

Product Description

Product Description

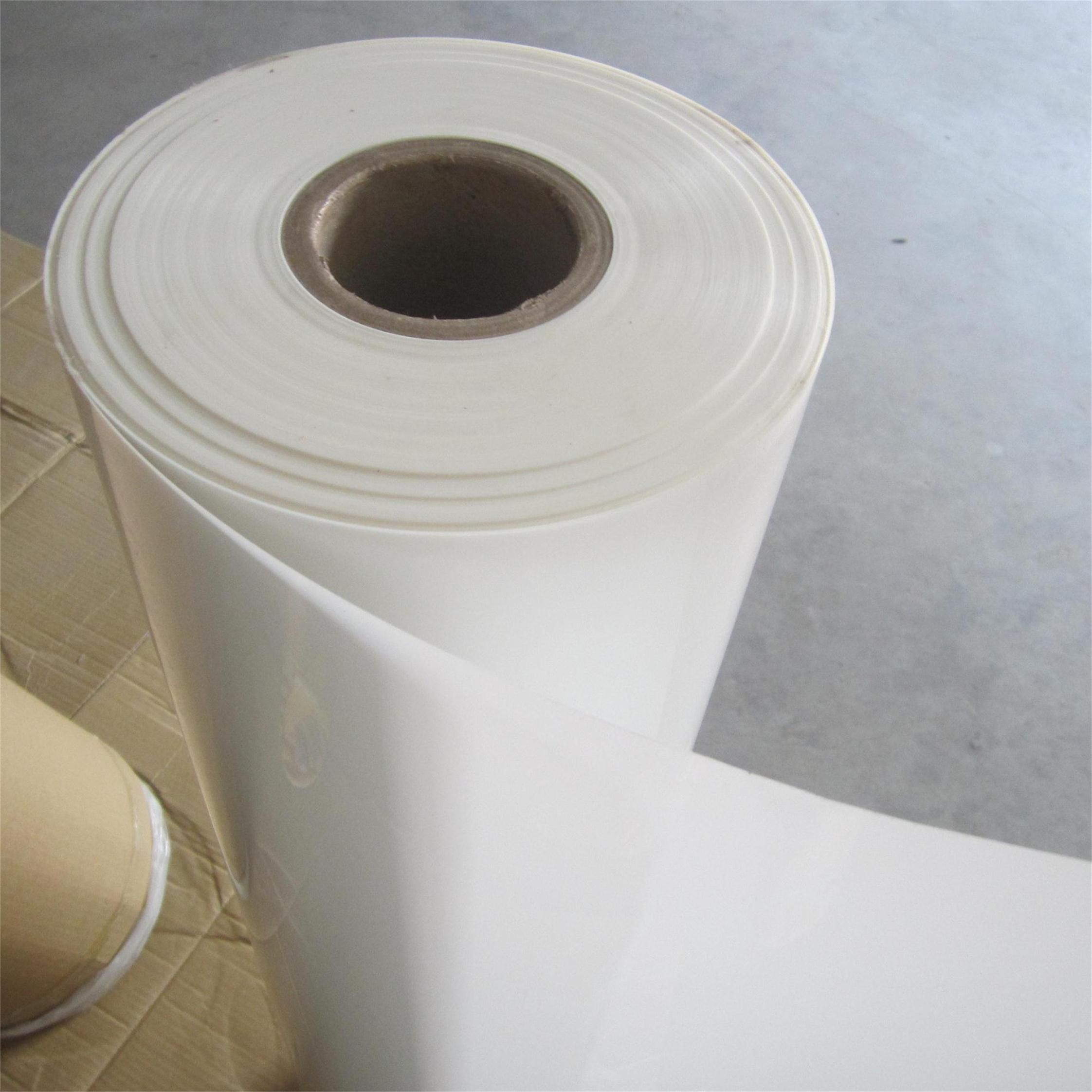

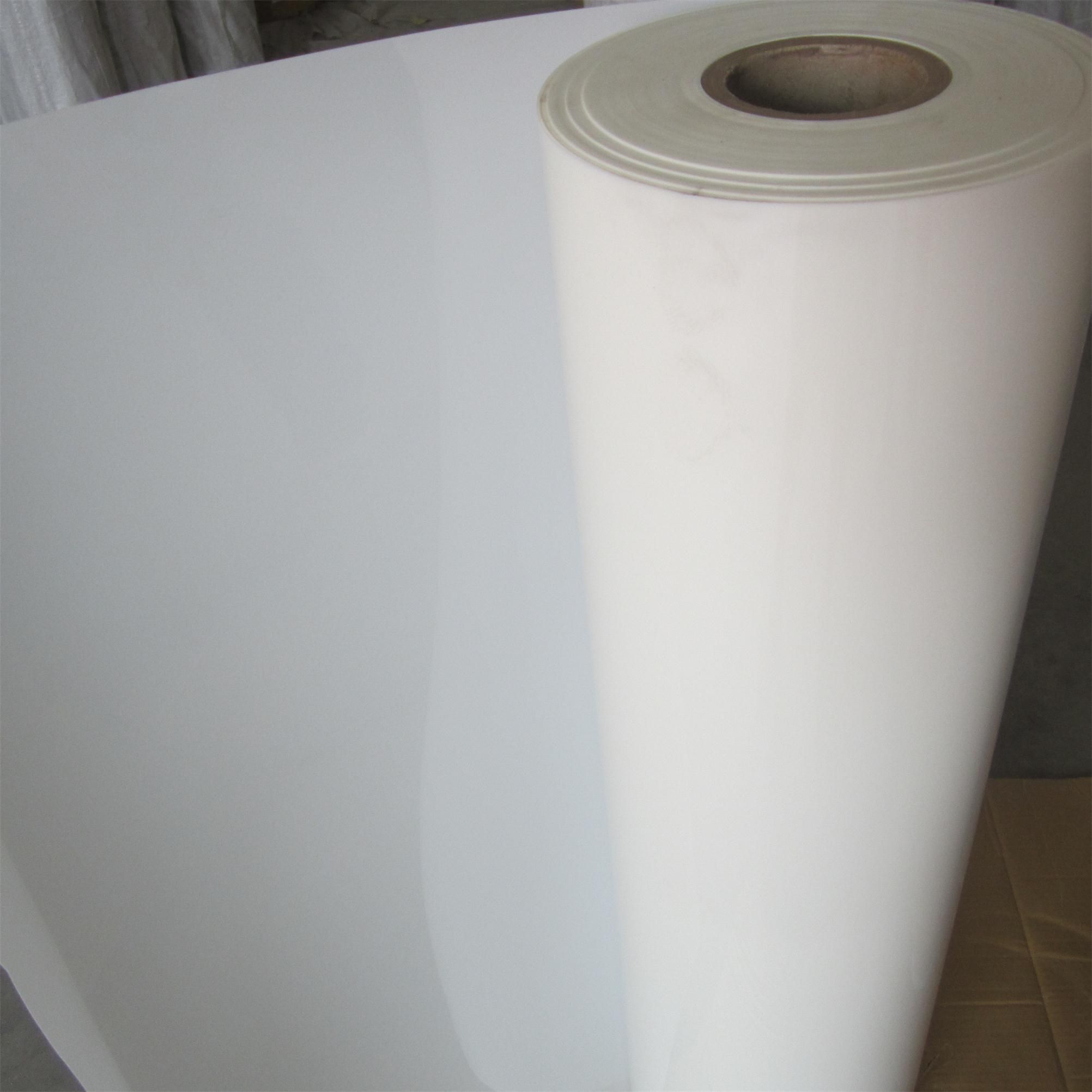

6021 Milky white film

1 .Description: 6021 milky white film  have excellent electrical insulation. UL listed, slot and coil insulation of motor, sparate insulating base material

2.Specifications:
1).0.10mm-0.35mm;
2). Excellent dielectric properties
3). good strength and toughness

3.color: milk white, transparent


4.Application:  film for electrical insulating is  used For magnetic recording, the photosensitive materials, electronics, electrical insulation, the field of industrial films, packaging, decoration.

Heat-resistance:E class  120 degree
it is biaxially oriented pet film. 6020 is a transparent film. 6021 is milky white film.
Property:With high dielectric and mechanical property,
Application: it is suitable for electrical insulation, such as slot insulation, ,interurn and liner insualtion ,wrapping insulation for coils and cables, as well as producing insulation laminate meterial.
5. technical data


6. Why you choose us?

1) High performance cost ratio with steady quality
2) OEM service and Prompt Delivery
3) The fast speed of reply your email and can make quotation sheet just for you.
4) Can provide free sample, only need you bear the sample fee.
5) Supply good after-sales service, we will follow-up the situation after using, if have problems, we will find out the reason and deal with positively.

7. Packing:

exporting cartons and pallet

8. Delivery time and payment terms:

1) 10-20 days usually, if quantity is large, the lead time is around 30 days.





Properties		6020 PET film is biaxially oriented polyethelene terephthalate (PET) film
Properties		Units		Typical Value
Nominal Thickness		μm		15
Thickness Tolerance		μm		±1.5
width				1m,1.38m. width  can be cut with special.
Tensile Strength			15		MPa	≥100
			25-100			≥150
			100-190			≥110
			>190			≥110
Elongation			15		%	≥35
			25-50			≥60
			50-250			≥80
Shrinkage			25-190		%	≤3.0
			>190			≤2.0
Line Frequently Electrical Intensity					V/μm	≥174
Volume Resistance Rate					Ω·m	≥1.0×1014
Relative dielectric Strength(50HZ)					/	2.9-3.4
Dielectric dissipation factor					/	≤5.0×10-3
Density					kg/m3	1390±10
Melting Point					°C	≥256
Surface Resistivity					Ω	≥1.0×1013
Electrolytic etching	Ocular Estimate				Grade	A1
	The tensile strength  of plain conductor				%	≤2
Dimensional Stability at  High temperatures	In Tension				°C	≥200
	Under Pressure					≥200
Long-term heat resistance	Temperature Index				°C	≥115
Storage Require					Store in dry and clean.  Keep from fire, heating, beating.
