60227 IEC 53 Rvv Electrical Wire Cable
| Price: |
US $ 0.02-19.8/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
building wires |
| Product Name: |
60227 IEC 53 Rvv Electrical Wire Cable |
| Type Of Comanpy: |
Manufacturer |
| Standard: |
GB 5023.1~7-1997 IEC 60227 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Product Model: |
BV, Blv, BVV, Blvv, BVVB, Blvvb, RV, Rvb, Rvs, Rvv |
| Rated Voltage: |
300/300V, 450/750V |
| Core Number: |
Single, 2, 3 or 4 Cores |
| Package: |
Packing in Rolls or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Payment: |
L/C, D/a, D/P, T/T, Western Union, Moneygram |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
None |
| Brand: |
Rmjt |
Product Description

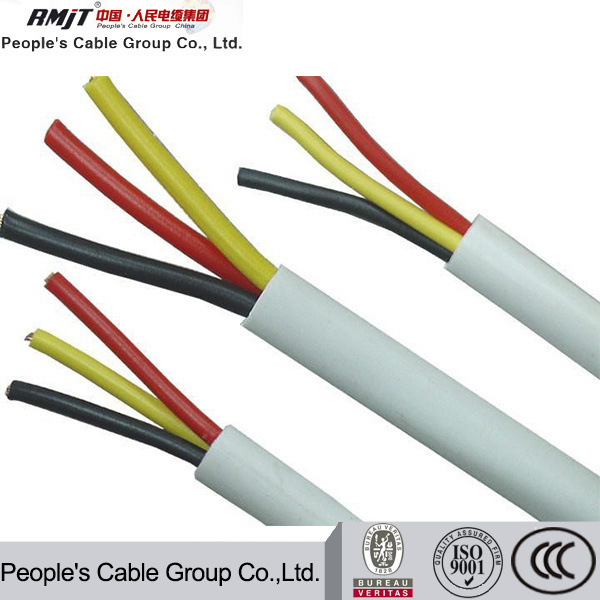

60227 IEC 53 RVV electrical wire cable
1.U0/U :300/300V 30/500V 450/750v
2.Standard Applied: IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734 .
3.Max.working temperature:70°C, can be 90°C and 110°C as per requirement
4.Conductor :Class 5 flexible pure annealed copper
5.Insulation:PVC
6.Cores:1-10 cores
7.Cross setion area:0.50~10mm2
8.Sheath:PVC sheath
9.Color:black or as per requirement
10.Flame retardent or Fire resistance or Low smoke and halogen free or other property can be available
11.100m per roll or as as per requirement
12.Certification:ISO9001, ISO14001,CE, CB, CCC,etc.
13.OEM can be available
People's Cable Group has very good sales over the world , enjoying a very good reputation based on top quality and most competitive price and service.
14.Technical data:| | SPEC. | Normal
area
mm2 | Conductor
Structure
mm | Min.insulation
resistance
at 700C
Mohm.km | Thickness of
insulation
mm | Thickness of
sheath
mm | Approx.
overall
diameter
mm |
| 300/300V | 227 IEC 52(RVV) | 2x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.1 |
| 227 IEC 52(RVV) | 2x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.6 |
| 227 IEC 52(RVV) | 3x0.5 | 28x0.15 | 0.012 | 0.5 | 0.6 | 5.4 |
| 227 IEC 52(RVV) | 3x0.75 | 24x0.20 | 0.010 | 0.5 | 0.6 | 5.9 |
| 227 IEC 53(RVV) | 2x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.4 |
| 300/500V | 227 IEC 53(RVV) | 2x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 6.7 |
| 227 IEC 53(RVV) | 2x1.5 | 48x0.20 | 0.010 | 0.7 | 0.8 | 7.7 |
| 227 IEC 53(RVV) | 2x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.3 |
| 227 IEC 53(RVV) | 3x0.75 | 24x0.20 | 0.011 | 0.6 | 0.8 | 6.8 |
| 227 IEC 53(RVV) | 3x1.0 | 32x0.20 | 0.010 | 0.6 | 0.8 | 7.1 |
| 227 IEC 53(RVV) | 3x1.5 | 48x0.20 | 0.010 | 0.7 | 0.9 | 8.3 |
| 227 IEC 53(RVV) | 3x2.5 | 77x0.20 | 0.009 | 0.8 | 1.0 | 9.8 |
| RVV | 3x4.0 | 56x0.30 | 0.007 | 0.8 | 1.1 | 10.9 |
| RVV | 3x6.0 | 84x0.30 | 0.006 | 0.8 | 1.2 | 12.4 |
| 227 IEC 53(RVV) | 4x1.0 | 32x0.20 | 0.010 | 0.6 | 0.9 | 7.9 |
| 227 IEC 53(RVV) | 4x1.5 | 48x0.20 | 0.010 | 0.7 | 1.0 | 9.3 |
| 227 IEC 53(RVV) | 4x2.5 | 77x0.20 | 0.009 | 0.8 | 1.1 | 11.0 |
| RVV | 4x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 12.2 |
| RVV | 4x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 13.8 |
| RVV | 4x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 18.6 |
| RVV | 4x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 21.4 |
| 227 IEC 53(RVV) | 5x1.5 | 48x0.20 | 0.010 | 0.7 | 1.1 | 10.3 |
| 227 IEC 53(RVV) | 5x2.5 | 77x0.20 | 0.009 | 0.8 | 1.2 | 12.2 |
| RVV | 5x4.0 | 56x0.30 | 0.007 | 0.8 | 1.2 | 13.4 |
| RVV | 5x6.0 | 84x0.30 | 0.006 | 0.8 | 1.3 | 15.2 |
| RVV | 5x10.0 | 84x0.40 | 0.0056 | 1.0 | 1.3 | 20.5 |
| RVV | 5x16.0 | 126x0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |
Packing and Shipping:

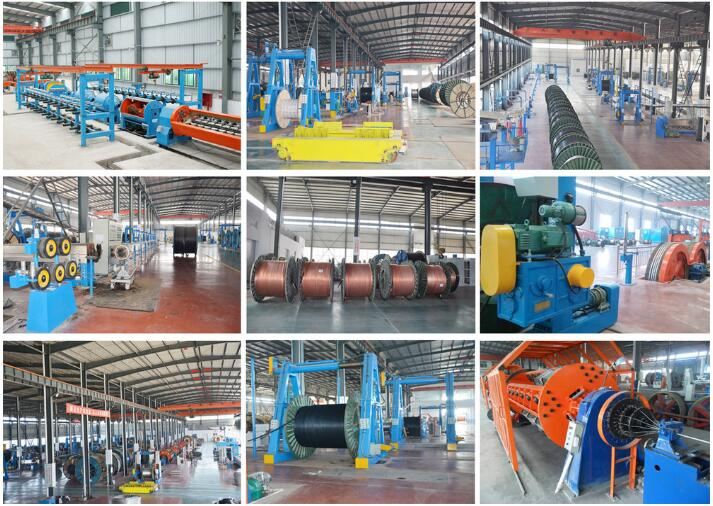

Production Line:

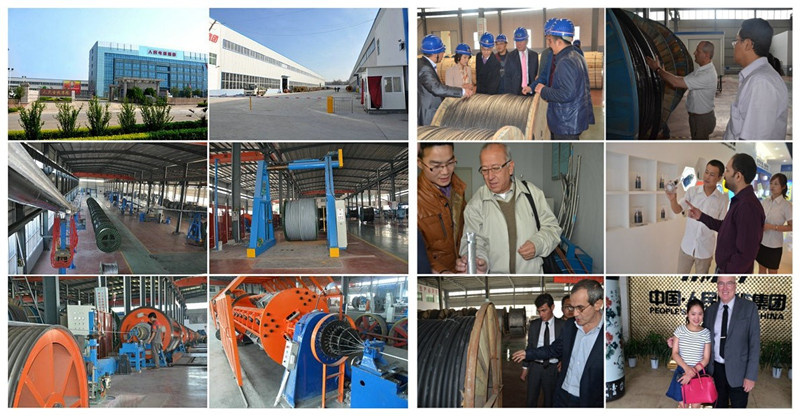

Our Company:People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our Advantages:
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
FAQ and Contect information:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjtcable.com
For more information, please kindly contact us freely!
Welcome your inquiry of Building wires and cables, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
