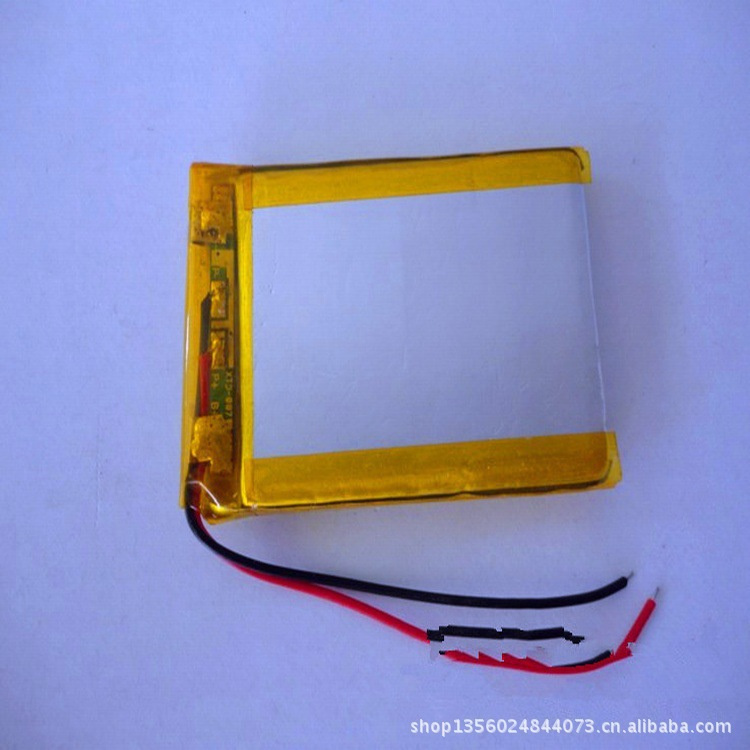

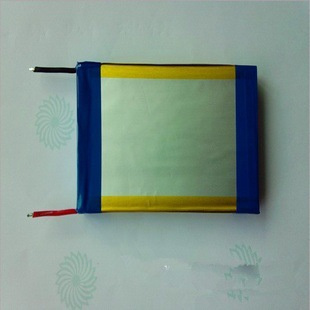

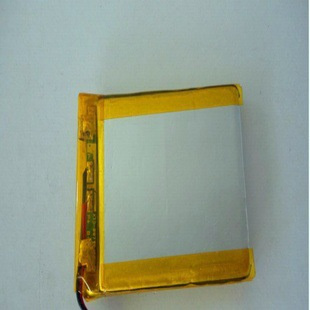

602535 602535pl 500 mAh 3.7 V Lithium Polymer Battery

Name: 602535 602535pl 500 mAh 3.7 V Lithium Polymer Battery
Brand: all-electronics-online.com
SKU: 798471225
Availability: InStock
Rating: 5 (31 reviews)

Price:	Negotiable/Piece
Min Order:	3000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	602535 500 mah +3.7 V
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Single
Rated Capacity:	500mAh
Standard Voltage:	3.7V
Usage:	Electronic Products, Digital Products, Tachograp

Product Description

Item specifics

Model Number:all
is_customized:Yes
Type:Li-polymer
Size:Prismatic
Custom processing:Be
Model:602535
Rated Capacity:500 (mah)
Standard voltage:3.7 (V)
Charging current:0.38 (A)
Dimensions:6 * 25 * 35 (mm)
For type:Tachograph
Product Certification:MSDS
Applicable Model:Electronic products, digital products, tachograph

Product Description

Items	Criteria	Remarks
Typical Capacity Typical capacity	500mAh	0.5Ccharge and discharge for cut-off voltage 0.5CDischarge to the termination voltage
Minimum Capacity Minimum capacity	500mAh
Nominal Voltage The nominal voltage	3.7V
Internal Impedance Resistance	Cell:210m?	AC 1KHz after standard charge After standard chargeAC 1KHzTest
Internal Impedance Resistance	Battery:210m?
Charge cut-off voltage Chargingcut-off voltage (V)	4.2V
Standard charge current Standard Charge Current	250mA	0.5C
Max. Charge current The maximum charging current	500Ma	1.0C
Standard dis-charge current Standard discharge current	250mA	0.5C
Max. Discharge current Maximum discharge current	500mA	1.0C
Discharge cut-off voltage Discharge cut-off voltage	2.8V
Operating Temperature Operating Temperature	0 ~ +45	Charging Charging
Operating Temperature Operating Temperature	-20~ +60

Shenzhen Wanhong Technology Co., Ltd is a lithium batteries high-tech enterprise, professional on R&D, producing. Our company obtained independent import & export rights and general taxpayer qualification. Front-end application is positioned as World Power development direction. Offering"Quality, Efficient, Safety, Eco-friendly" Li-ion battery products is our mission. Continued research and innovation, competitive cost and manufacturing advantages already help Wanhong been many well-known enterprises lithium battery supplier.

Shenzhen Wanhong own an excellent engineer team, engaged in lithium batteries for many years. Our team have a lots of experiences on hardware and software R & D, always pay attention to the latest development of lithium batteries and latest applications.

Wanhong operate strictly according to ISO9001-2008 Quality Management System. The workshop is equipped with advanced production equipment and world-class testing instruments. Also has professional manufacturing and quality controlling staff team. They make batteries strictly on each step, optimize and improve the manufacturing technologies to ensure providing the customers with world-class products.

Wanhong's focus and professional spirit is helping us to provide a world-class environmentally energy and create green, low-carbon and clean home through constant effort and technology innovation.
