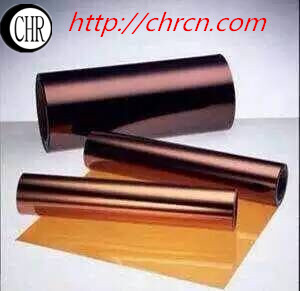

6051 Electrical Insulation Material Polyimide Film/Sheet
| Price: |
US $ 28kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50kg |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6051 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Width: |
10mm-1050mm |
| Thickness: |
0.0125mm-0.25mm |
| Rated Voltage: |
4kv-15kv |
| Temperature: |
H Grade |
| Tensile Strength: |
135MPa |
| Application: |
Insulating Varnish |
| Type: |
Solid |
| Chemistry: |
Inorganic Insulation |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
<10KV |
| Material: |
Polyimide |
| Color: |
Yellow, Golden |
| Brand: |
Chr |
Product Description
Polyimide film is a good H grade insulating material. It is widely used for insulation purpose in electrical
appliances which are used in special environment. To use the polyimide film means reducing volume and
weight of the electrical appliances while retaining the same output or increase the capacity without
increasing in frame size. It can also prolong the service life of the electrical appliances and increase
their reliability. Its longterm working temperature is under 200 °C.The following properties of Polyimide
Film ensure its good performance under extreme temperature or other conditions.
1.Good property of insulation and mechanism.
2.Good temperatur resistant property, wide performance temperature range. It can be used under
temperature from -60 °C to +250 °C for a long period and -269 °C to +400 °C for a short period without changing its electrical and mechanic properties.
3.Good chemical stability. It resists most organic solvents.
4.Excellent flame retardant property
5.Good radian-resistant property
6.Can be combined with many other materials. When combined with fluorine resin, its
characters of wet and corrosion resistance are greatly improved.
Applications
Flexible Printed Circuits;Insulation;Automotive;Bar Code Labels;Aerospace;Safety;Transportation
Specifications
Measure tolerance.
Film Type | Thickness | Thickness Tolerance | Available Width | Weight (g/m2) | (m2/kg) |
Min. (micron) | Max. (micron) | Min. (mm) | Max. (mm) |
SLP250 | 25(1mil) | 23 | 28 | 8 | 1000 | 35.7 | 28 |
SLP300 | 30 | 27 | 33 | 8 | 1000 | 43 | 23.3 |
SLP400 | 40 | 37 | 43 | 8 | 1000 | 57 | 17.5 |
SLP500 | 50(2mil) | 47 | 53 | 8 | 1000 | 71.4 | 14 |
SLP750 | 75(3mil) | 72 | 78 | 8 | 1000 | 107.5 | 9.3 |
SLP1000 | 100(4mil) | 96 | 104 | 8 | 1000 | 143 | 7 |
SLP1250 | 125(5mil) | 120 | 130 | 8 | 1000 | 178.5 | 5.6 |
SLP1500 | 150(6mil) | 145 | 155 | 8 | 1000 | 212.8 | 4.7 |
SLP1750 | 175(7mil) | 168 | 182 | 8 | 1000 | 250 | 4 |
* Special thickness is also available upon request |
Mechanical and Electrical Properties
Item | Unit | Value for each thickness | Method |
25 micron | 50 micron | 75 micron | 100 micron | 125 micron | |
Tensile Strength, Min | MD | MPa (kg/in) | 139 (9) | 139 (18) | 139 (27) | 139 (36) | 139 (45) | JB2726-96 |
TD | 120 (7.8) | 120 (15.6) | 120 (23.4) | 120 (31.2) | 120 (39) |
Elongation, Min | % | 40 | 40 | 40 | 40 | 40 | JB2726-96 |
Dielectric Strength at 50 Hz, Min | Average | KV/mm | 150 | 150 | 150 | 150 | 150 | JB2726-96 |
Individual | 100 | 100 | 100 | 100 | 100 |
Volume Resistance at 200 °C, Min | Ohm.m | 1x 1010 | 1x 1010 | 1x 1010 | 1x 1010 | 1x 1010 | JB2726-96 |
Dielectric Constant at 50Hz | | 3.1-3.9 | 3.1-3.9 | 3.1-3.9 | 3.1-3.9 | 3.1-3.9 | JB2726-96 |
Dielectric Dissipation Factor 50Hz, Max | | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | JB2726-96 |
Package and Supply
The film is packed in rolls.
Thickness | 25 micron | 50 micron | 75 micron | 100 micron | 125 micron |
Length* | 2000 m (max) | 750 m | 500 m | 330 m | 300 m |
* Special Length available upon request
Width | Core Type | Core Size |
7-20mm | Plastic | 3 inch (76 mm) |
20-1000mm | Paper | 3 inch (76 mm) |
Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd
If any question, pls contact our sales
Our main products are as follows:
Film Products: 6020/6021 Polyester film, 6051 polymide film
Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper
Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,
Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.
Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210
Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper
Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar
The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
