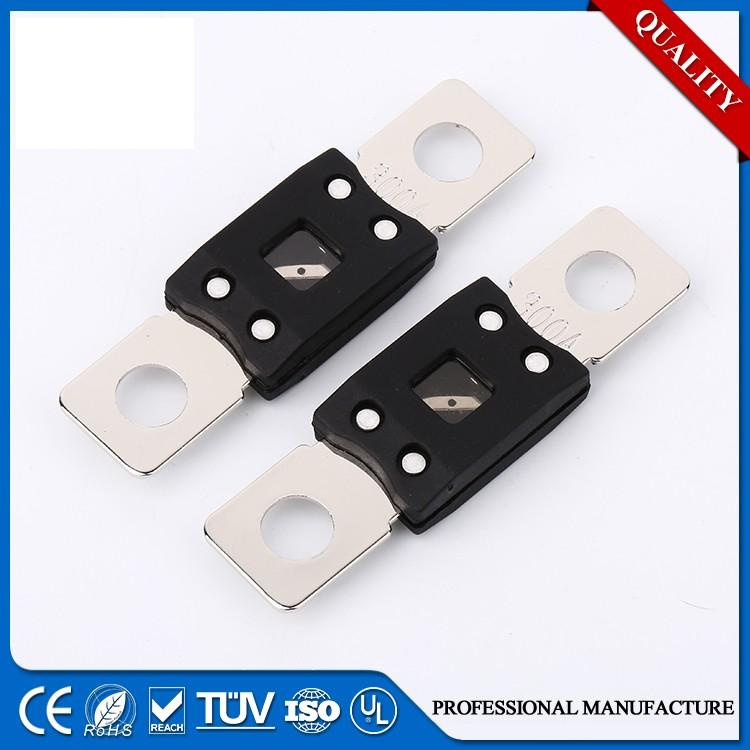

60A-100AMPS Anl Bolt-on Fuse

60A-100AMPS Anl Bolt-on Fuse
Price: Negotiable/Piece
Min Order: 300/Piece
Pay Type: L/C,T/T,Western Union
Breaking Capacity: High
Type: Current Fuse
Usaga: High Voltage

Product Description

HousingOut of thermoplastic (UL 94-V0, heat-resistant) Visible melting element
TerminalCopper alloy, gal. Sn 2 x M8 bolts, Distance 60 mm
Mounting Torque12.0 Nm +/- 1Nm
Breaking Capacity1000A, 32V DC
Voltageaccording to the different needs of customized 12V-1500V range DC
Complies with ISO 8820-5 UL 248 Special Purpose Fuses
Medium Current50A 60A 80A 100A 125A 150A 175A 200A 250A 300A 350A

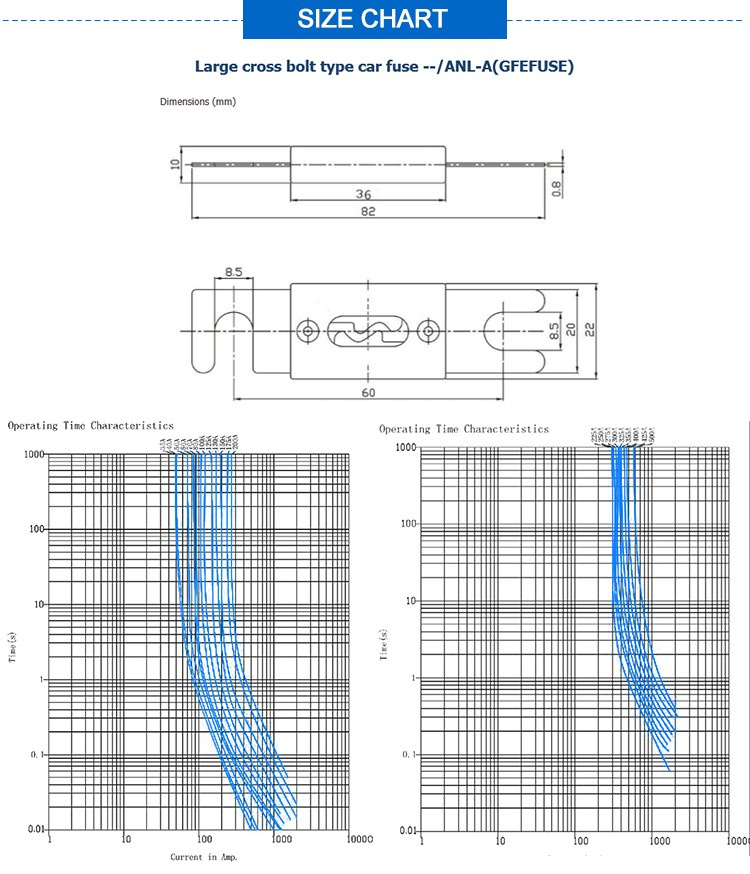

 Time-Current Characteristics

 Opening Time Min / Max (s)
% of Rating
  100A - 250A  300A-500A
 75 - / - - / -
 100 4 h / - 4 h / -
 135 120 s / 1,800 s  - / -
 220 1 s / 60 s  1 s / 60s
 350 0.300 s / 5 s 0.500 s / 5 s
 600 0.100 s / 1 s 0.100 s / 1 s


Current Models

TYPERating Current(A) Typ  Voltage drop  TYPERating Current(A) Typ Voltage drop
 ANL-A30 30A ≤150Mv ANL-A175 175A ≤100mV
 ANL-A40 40A ≤150Mv ANL-A200 200A  ≤100mV
 ANL-A50 50A ≤150Mv ANL-A225 225A    ≤90mV
 ANL-A60 60A  ≤130mV  ANL-A250 250A  ≤90mV
 ANL-A80 80A  ≤130mV  ANL-A275 275A  ≤90mV
 ANL-A100 100A  ≤110mV  ANL-A300 300A  ≤90mV
 ANL-A125 125A  ≤110mV  ANL-A350 350A  ≤90mV
 ANL-A130 130A  ≤110mV  ANL-A400 400A  ≤90mV
 ANL-A150 150A  ≤100mV  ANL-A500 500A  ≤90mV





Shinningpc Technology Co., Ltd is a professional automotive safety systems supplier. We have our own factory and cooperated factories for producing different auto equips products. As a traditional security products manufacturer, we have a clear target that to provide the most competitive products not only in quality but also at price to clients with those mature auto equips. We would like to supply those equips to our clients exactly meet their requirements and surely we adjust our products design according to end user useful advise. And our innovation will make our enterprises as a leading company in the auto security field.

Our products mainly include vehicle mobile safety system, reversing camera system, backup systems, car security monitor, automobile stand-alone monitor, overhead mouting DVD player, headrest DVD monitor, CMOS/CCD night vision waterproof surveillance cameras, vehicle Side Camera, vehicle DVR, mobile DVRs and other auto equips...These products are widely used on cars, vehicles, buses, trucks, trailers, board etc to assure safety while driving/operating.

We concentrate on providing you with reliable equips, every product were strictly tested and inspected. For example, vibration test, waterproof test, vandal-proof test, and aging test are processed to evaluate the product performance. All of our security products come with a 12 month warranty. Also with MOQ and lead-time, we can response quickly and make it finished within 10 working days.

We are sincerely looking for long-term and mutual benefit relationship with stable partners, please don't hesitate to contact with us for further detail.

CE, LVD, RoHS certificate already.
