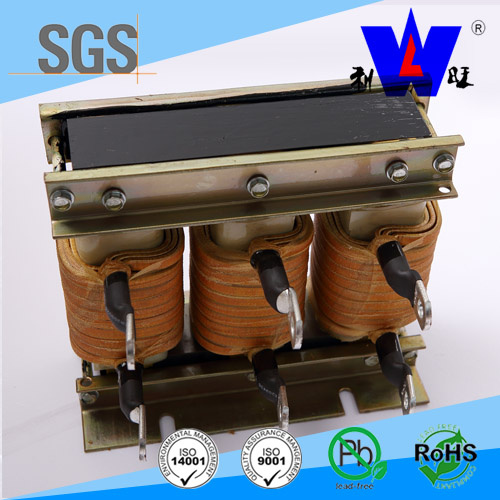

60A 500V AC Three Phase Reactor

Prod Model:	60A
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008

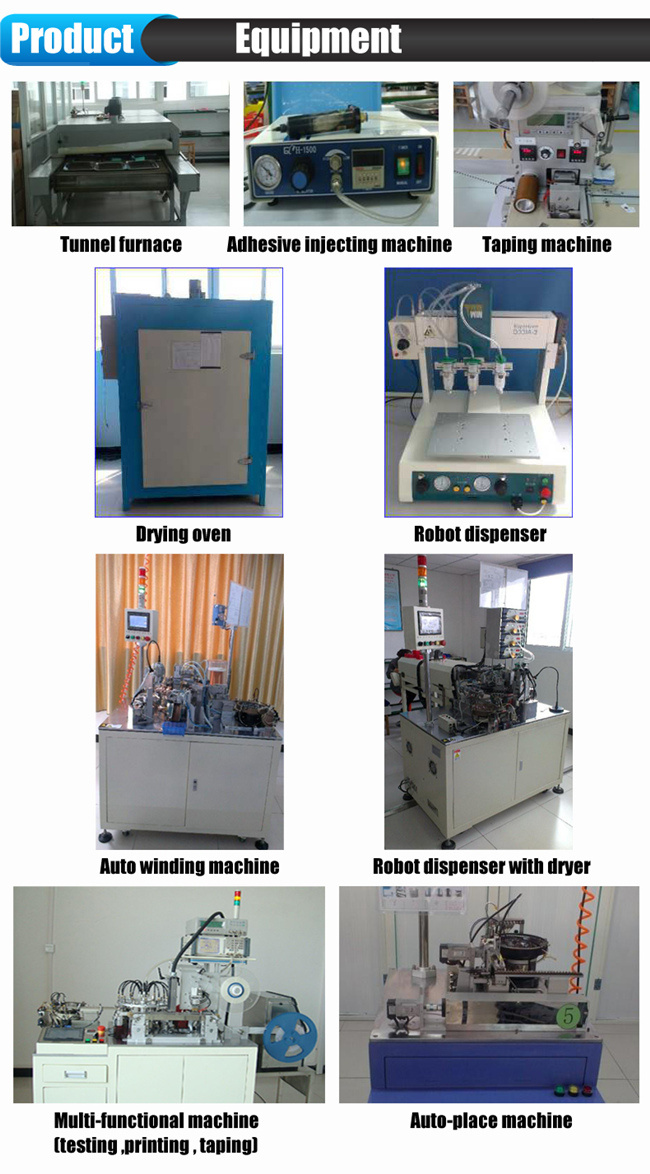

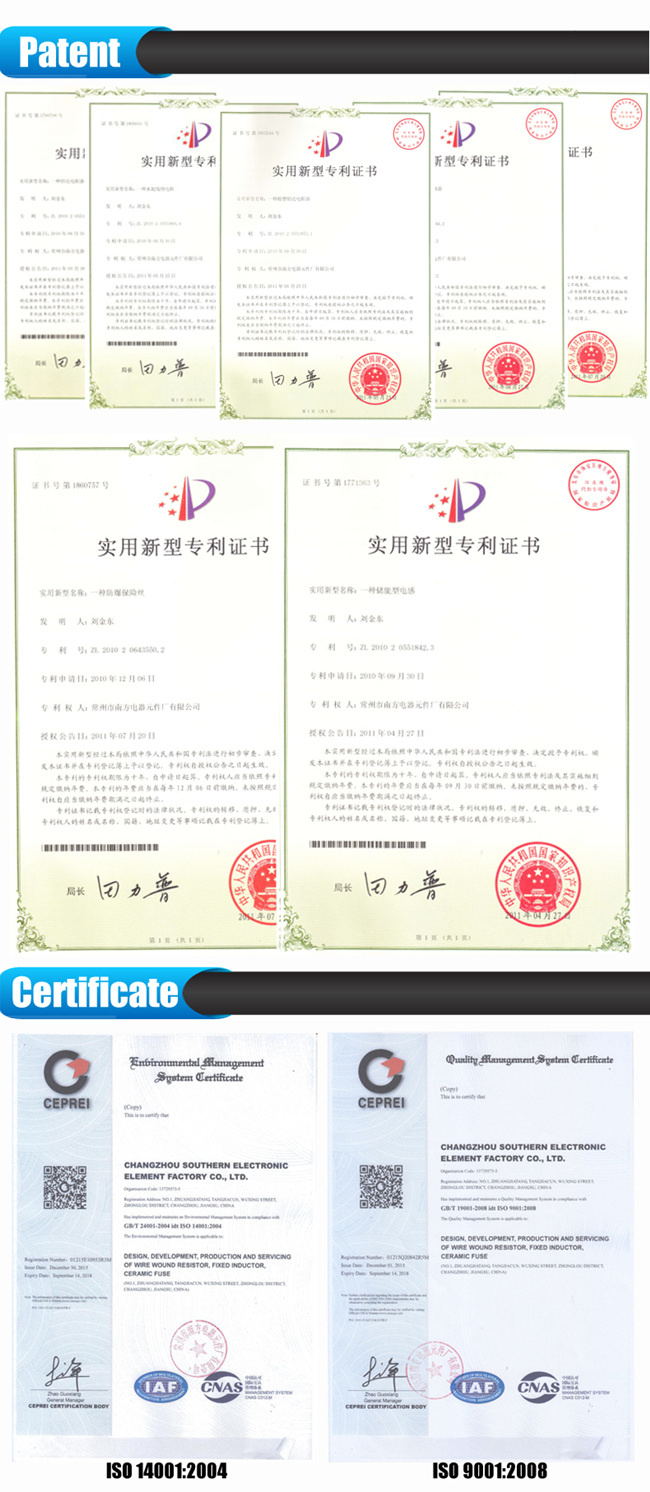

Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Coil Number:	Autotransformer
Coil Structure:	Toroidal
Application:	Electronic
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer

Product Description

1. EE/EI/EFD transformer have various types
2. High permeability
3. High saturation flux density
4. RoHS certification


1)Output AC reactor, reactor, AC reactor
2)Output AC reactor 1%
3)Decrease the noise of motor and the losses of eddy current

Benefits
Decrease the noise of motor and the losses of eddy current
Decrease the leakage current caused by high order harmonic
Filter harmonic fluently and reduce transient voltage DV/dt to lengthen the lifetime of motor
Protect the power switch components of inverter

Technical Data
Rated Voltage: φ 3/380V/50Hz or 660V/50Hz
Rated operating current: 3A to 2000A@40° C
Reactive Strength: Core- Winding 3000VAC/50Hz/10mA/10S Free of arcing breakage (tested in factory)
Insulation Resistance: 1000VDC, insulation resistance≥ 100MΩ
Reactor's noise is less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)
Protection class: IP00
Insulation class: Above F
Standard: IEC289: 1987 Reactor
GB10229-88 Reactor (equivalent to IEC289: 1987)
JB9644-1999 Reactor for semi-conductor transmission

Improved middle-level inductance meter
Easy operation and reasonable integration
Of strong functions
Good reliability of reading
High test speed of 16 times/s
Keyboard locking function
30Ω, 100Ω two output impedances
Providing RS-232C interface
Sorting and optional HANDLER interfac


Features for shunt reactor

 1 TO ADD LINE IMPENDENCE.
 2 TO PROVIDE SOME LIGHT BUFFERING AGAINST LOW MAGNITUDE LINE SPIKES.
 3 TO REDUCING HARMONICS.
 4 TO COMPENSATING FOR A LOW INDUCTANCE MOTOR.
 5 ONLY AS PART OF A FILTER FOR REFLECTED WAVE REDUCTION


Custormer benifit:
1.HIGH HARMONIC STRESS RESISTANCE
2.VERY LOW LOSSES
3. LOW NOISE
4.LONG OPERATING LIFE EXPECTANCY

Basic order data:
Rated current:100-5000A
Rated voltage;6KV/10KV
Rated reactance rate:3-12%
Produt executive standard:IEC289

The basic program of testing for shunt reactor:
1.Routine Tests
2.Impulse Tests
3.Thermal Current Calculation
4.Mechanical Strength Test
5.Impedance and Loss Test
6.emperature Rise Test
7.Sound Level Test
8.Seismic Analysis
