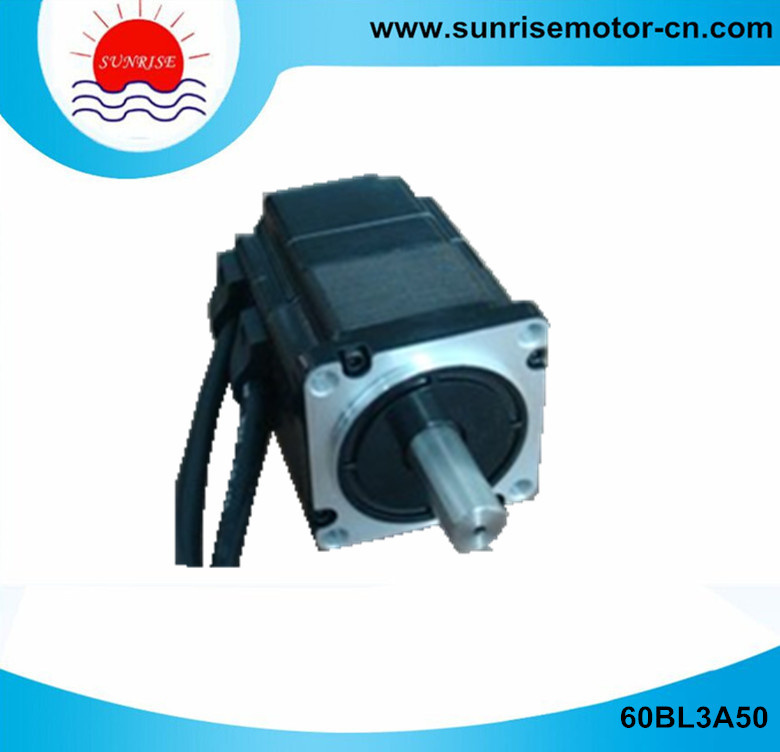

60bl3a50 BLDC Motor Brushless DC Motor

Name: 60bl3a50 BLDC Motor Brushless DC Motor
Brand: all-electronics-online.com
SKU: 787360055
Availability: InStock
Rating: 4.3 (88 reviews)

Price:	US $ 30.97-38.71/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60bl3a50 BLDC Motor
Voltage:	24VDC
Speed:	3000
Application:	Household Appliances
Operating Speed:	Adjust Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Type:	BLDC
Brand:	Sunrise Motor

Product Description

			60BL3A50	60BL3A70	60BL3A90	60BL3A110
Specification		Unit
Rated voltage	U	V	+24	+48	+48	+48
Rated out power	P out	W	78	156	235	315
Rated speed	n N	rpm	3000
Rated current	I N	A	4.4	4.4	6.6	8.8
Rated torque	T N	N.m	0.25	0.5	0.75	1
Peak current	I P	A	13.2	13.2	20	27
Peak torque	T p	N.m	0.75	1.5	2.25	3
Voltage constant	K E	V/ Krpm	6	12	12	12
Torque constant	K T	N.m/A	0.057	0.115	0.115	0.115
Rotor inertia	J	Kg.cm 2	0.24	0.48	0.72	0.96
Number of poles	N P		8
Winding class			B

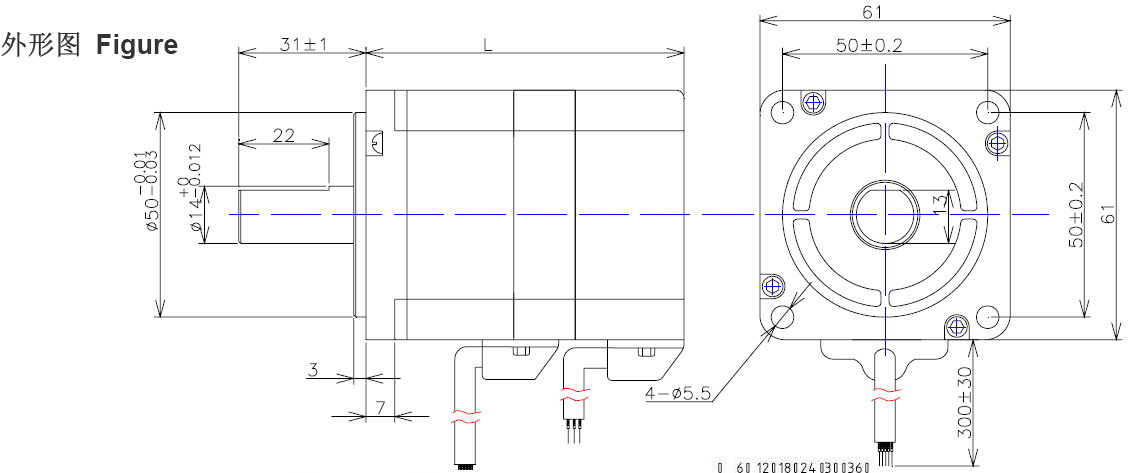

Motor Length	L	mm	78	99	120	142
Motor weight		Kg	0.9	1.25	1.6	1.95

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
