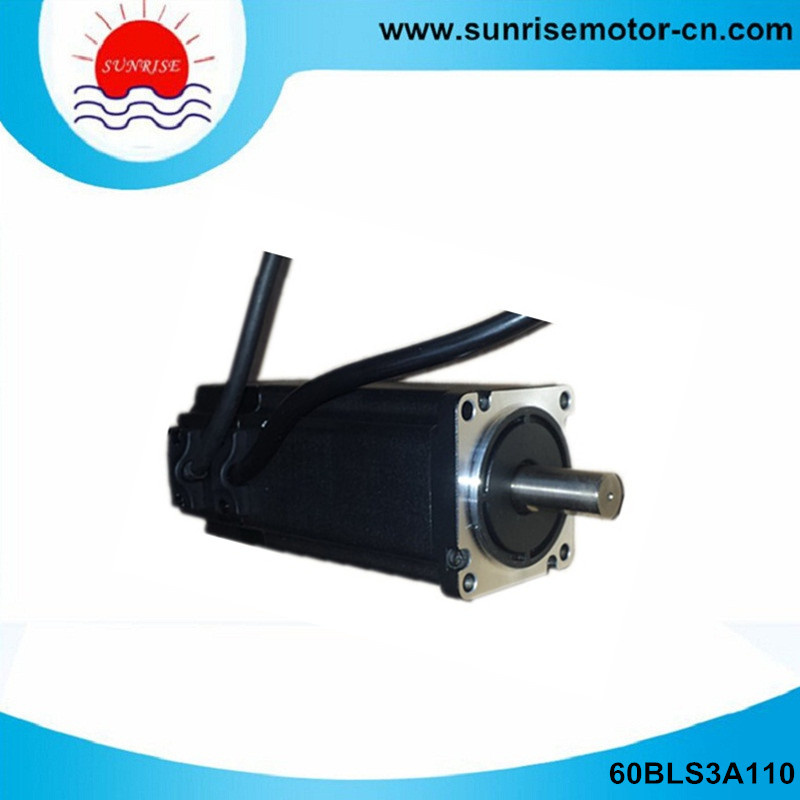

60bls3a110 48VDC 315W 1n. M 3000rpm Brushless (BLDC) DC Servo Motor

Name: 60bls3a110 48VDC 315W 1n. M 3000rpm Brushless (BLDC) DC Servo Motor
Brand: all-electronics-online.com
SKU: 726010135
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 106.72-112.36/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	60BLA3S110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	60bls3a110
Voltage:	48VDC
Current:	8.8A
Power:	315W
Rated Speed:	3000rpm
Rated Torque:	1n.M
Encoder:	1000CPR
Winding Class:	B
Length:	142mm
Weight:	1.95kg
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC
Certification:	SGS

Product Description

60BLS BRUSHLESS (BLDC ) DC SERVO MOTOR

MODEL: 60BLS3A110
VOLTAGE: 48VDC
POWER: 315W
SPEED: 3000RPM
CURRENT: 8.8A
PEAK CURRENT: 27A
TORQUE: 1N. M
NUMBER OF POLES: 8NP
ENCODER: 1000CPR
WINDING CLASS: B

REMARK:
Motor are avaible with different winding and mechanical modification to meet specific applications.

			60BLS3A50	60BLS3A70	60BLS3A90	60BLS3A110
Specification		Unit
Rated voltage	U	V	+24	+48	+48	+48
Rated out power	P out	W	78	156	235	315
Rated speed	n N	rpm	3000
Rated current	I N	A	4.4	4.4	6.6	8.8
Rated torque	T N	N.m	0.25	0.5	0.75	1
Peak current	I P	A	13.2	13.2	20	27
Peak torque	T p	N.m	0.75	1.5	2.25	3
Voltage constant	K E	V/ Krpm	6	12	12	12
Torque constant	K T	N.m/A	0.057	0.115	0.115	0.115
Rotor inertia	J	Kg.cm 2	0.24	0.48	0.72	0.96
Number of poles	N P		8
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	78	99	120	142
Motor weight		Kg	0.9	1.25	1.6	1.95

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
