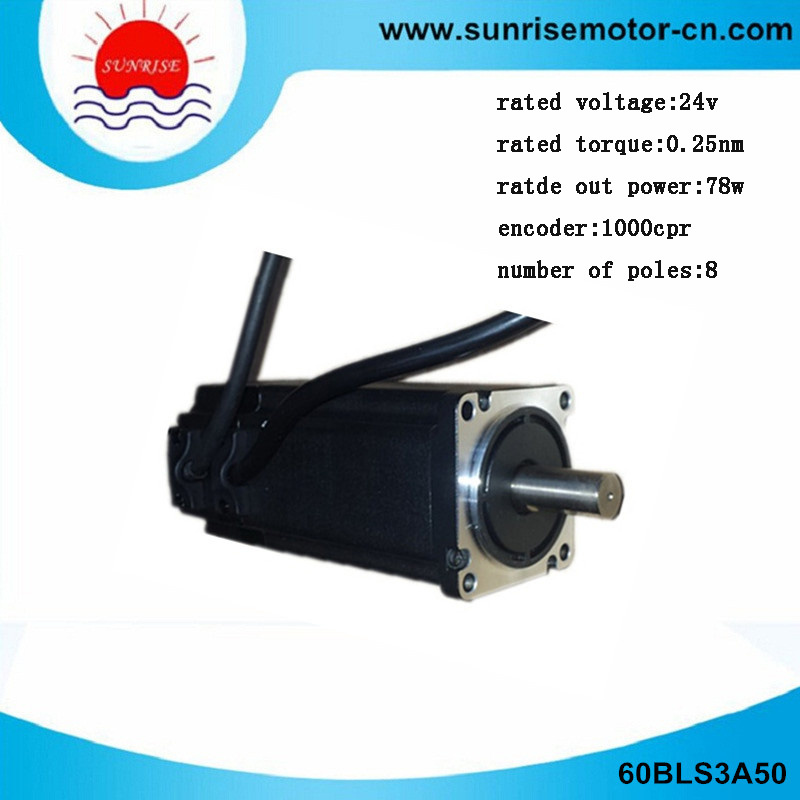

60bls3a50 24VDC 0.25n. M Brushless (BLDC) DC Servo Motor

Name: 60bls3a50 24VDC 0.25n. M Brushless (BLDC) DC Servo Motor
Brand: all-electronics-online.com
SKU: 752706135
Availability: InStock
Rating: 4.5 (45 reviews)

Price:	US $ 75.8-80.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60bls3a50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24VDC
Rated Out Power:	78W
Rated Speed:	3000rpm
Rated Torque:	0.25nm
Encoder CPR:	1000
Application:	Household Appliances
Operating Speed:	Adjust Speed
Brand:	Sunrise Motor

Product Description

Customer First Service Foremost Quality Guarantee

			60BLS3A50	60BLS3A70	60BLS3A90	60BLS3A110
Specification		Unit
Rated voltage	U	V	+24	+48	+48	+48
Rated out power	P out	W	78	156	235	315
Rated speed	n N	rpm	3000
Rated current	I N	A	4.4	4.4	6.6	8.8
Rated torque	T N	N.m	0.25	0.5	0.75	1
Peak current	I P	A	13.2	13.2	20	27
Peak torque	T p	N.m	0.75	1.5	2.25	3
Voltage constant	K E	V/ Krpm	6	12	12	12
Torque constant	K T	N.m/A	0.057	0.115	0.115	0.115
Rotor inertia	J	Kg.cm 2	0.24	0.48	0.72	0.96
Number of poles	N P		8
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	78	99	120	142
Motor weight		Kg	0.9	1.25	1.6	1.95

Remark:
1. Motor are available with different winding and mechanical modification to meet specific applications.

About Sunrise Motor

Sunrise Motor  was founded in 2003 and specialised on development, production and sales of  electric motor products to answer to the growing demand for these commodities on the intl' markets.
Sunrise Motor was and is set to meet this demand in a more flexible and efficient way. Consequently, the company concentrated on products of the most urgent demand on domestic and foreign markets, whilst preparing our production for the introduction of other products being interesting in future.
Owing to hard and devoted work of  Sunrise Motor management and of its team, we have, in the meantime, gained an interesting batch of ground on this very competitive field of technology. We have achieved extensive knowledge on manufacturing and thus raised quality and output of our products.

If you need more information,please contact with us.
Our contact information:Changzhou Sunrise Electric Motor Co.,Ltd

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
