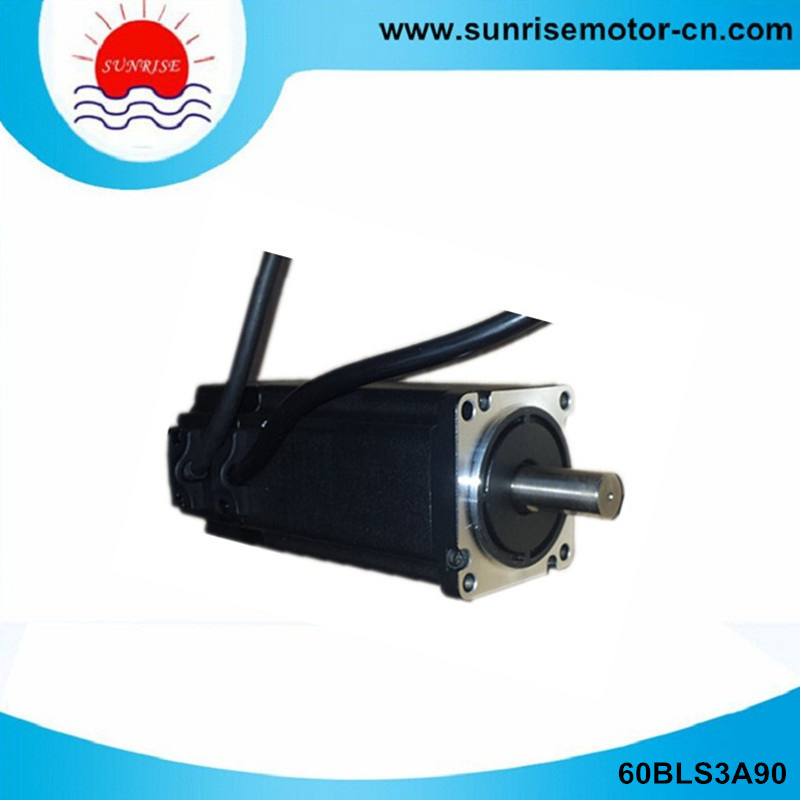

60bls3a90 48VDC 235W 3000rpm 0.75n. M Brushless (BLDC) DC Motor with Encoder

Name: 60bls3a90 48VDC 235W 3000rpm 0.75n. M Brushless (BLDC) DC Motor with Encoder
Brand: all-electronics-online.com
SKU: 726009935
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 82.5-88.35/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	60BLS3A90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	60bls3a90
Voltage:	48VDC
Current:	6.6A
Power:	235W
Rated Speed:	3000rpm
Rated Torque:	0.75n.M
Encoder:	1000CPR
Application:	Car
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	SGS
Brand:	Sunrise Motor

Product Description

BRUSHLESS(BLDC) DC SERVO MOTOR

MODEL: 60BLS3A90
VOLTAGE: 48V
POWER: 235W
SPEED: 3000RPM
CURRENT: 6.6A
PEAK CURRENT: 20A
TORQUE: 0.75N. M
NUMBER OF POLES: 8NP
ENCODER: 1000CPR
WINDING CLASS: B

REMARK:
Motor are avaible with different winding and mechanical modification to meet specific applications.

Motor specifications:

			60BLS3A50	60BLS3A70	60BLS3A90	60BLS3A110
Specification		Unit
Rated voltage	U	V	+24	+48	+48	+48
Rated out power	P out	W	78	156	235	315
Rated speed	n N	rpm	3000
Rated current	I N	A	4.4	4.4	6.6	8.8
Rated torque	T N	N.m	0.25	0.5	0.75	1
Peak current	I P	A	13.2	13.2	20	27
Peak torque	T p	N.m	0.75	1.5	2.25	3
Voltage constant	K E	V/ Krpm	6	12	12	12
Torque constant	K T	N.m/A	0.057	0.115	0.115	0.115
Rotor inertia	J	Kg.cm 2	0.24	0.48	0.72	0.96
Number of poles	N P		8
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	78	99	120	142
Motor weight		Kg	0.9	1.25	1.6	1.95

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
