60m HDMI Extender by Single Cat5e/6 (EDID, IR)

Name: 60m HDMI Extender by Single Cat5e/6 (EDID, IR)
Brand: all-electronics-online.com
SKU: 773289035
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLE-60R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avalibale
Usage:	Mobile phone
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

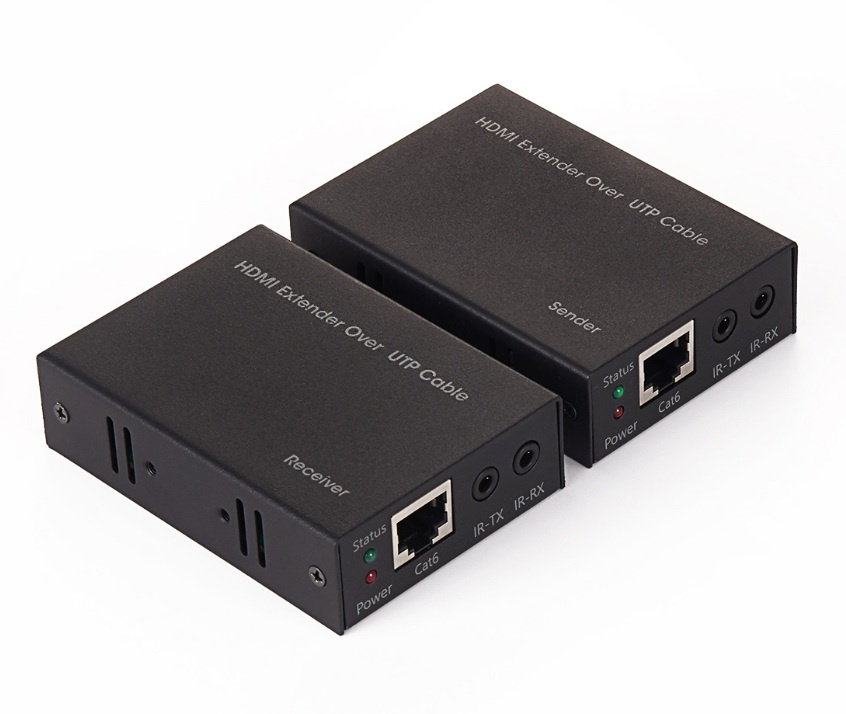

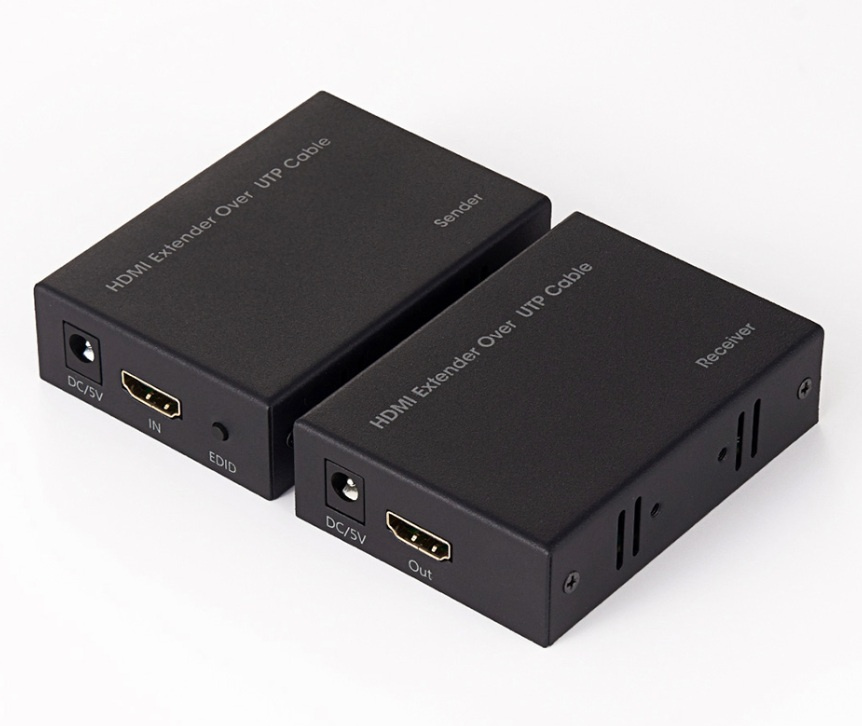

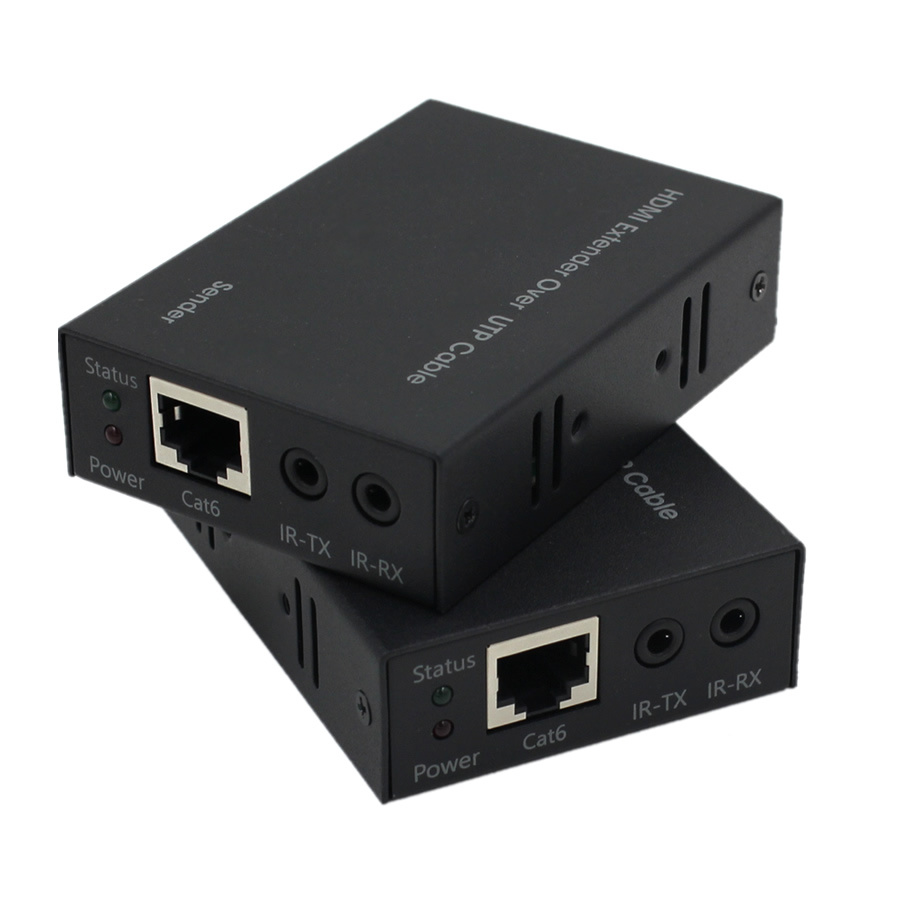

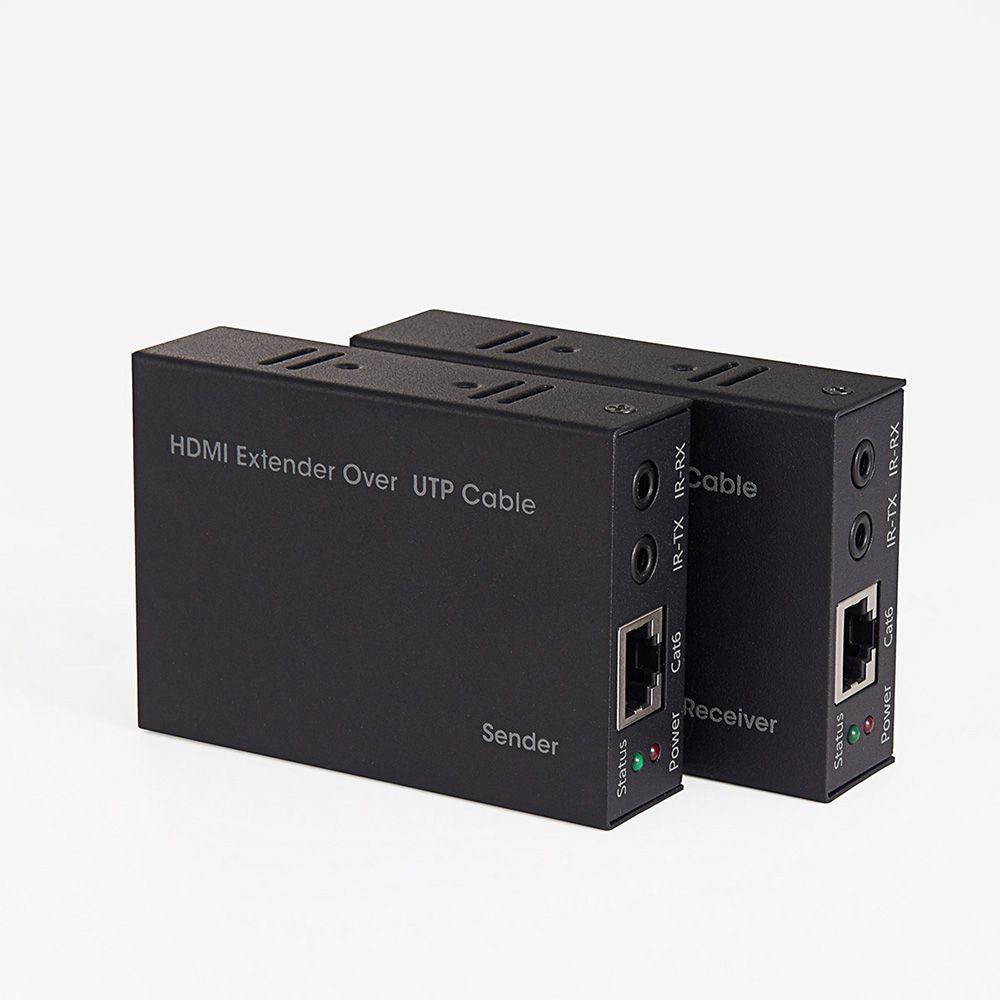

60m HDMI Extender by single Cat5e/6(EDID,IR)

Features:
1.Each set includes one Sender and one Receiver.
2.Use single UTP LAN cable(Cat 6)to substitute HDMI cable to achieve long transmission distance, the 3.UTP Cable follows the standard of IEEE-568B.
4.Transmission distance extends up to 50 meters under 1080P.
5.Supports lossless compressed digital audio: Dolby True-HD, DTS-HD Master Audio.
6.Transmit Digital Audio and Video over the CAT6 cable with zero signal loss.
7.Data transfer speed 6.75 Gbps.
8.DC 5V power supply.

Specifications:

Operating Temperature Range	-5 to +35ºC(+23 to +95ºF)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video Signal	0.5-1.0 Volts P-P
Input DDC Signal	5 volts p-p(TTL)
Support Video Format	DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/3D video/Bi-directional IR
Video Output	HDMI ,HDCP
Support Audio Format	DTS-HD Master Audio,Dolby true-HD etc.
Transmission Distance	1080P 8-bit 50m(Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption	5watts(Maximum)
Dimension (L×W×H)	81.5x43.5x23mm
Net Weight	250g(Pair)

Note1: Specifications are subject to change without notice. Mass and dimensions are approximate.

Sink must support 3D video when sources is 3D device
When in 36Bits deep color mode, we suggest set the HDMI source device to output 1080i or 720p.

Package Contents:
1) Main Unit: Sender & Receiver
2) DC 5V 1A x2PCS
3) Operating Instructions
NOTICE
Our company reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.

Connecting and Operating:
1) Connect the HDMI signal sources (Such as PS3, STB etc) to HDMI Sender.
2) Connect CAT 6 cables to both the outputs of the Sender and inputs of the Receiver. (The cables must follow the standard of EIA-TIA 568B).
3) Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver.
Attention: Insert/Extract cables carefully.
