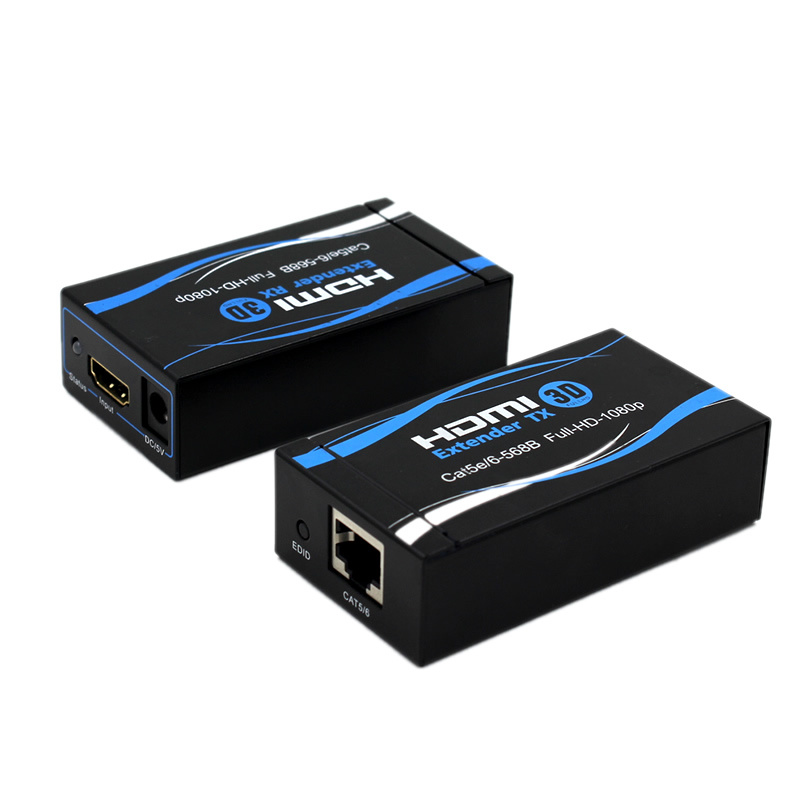

60m HDMI Extender Over Single Cat5e/6 (3D)

Name: 60m HDMI Extender Over Single Cat5e/6 (3D)
Brand: all-electronics-online.com
SKU: 731830975
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL-S60M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

The 60m Single Cat5e/6 Cable HDMI Extender use single CAT6 or cat6e(recommended) cables up to 60 metres instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
Support HDMI 1.2 protocol
Support full 3D
HDCP 1.2 protocol compliant
Support video input: 24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Signal transmission: Single cat-5e or cat-6(recommended) cables up to 60 metres instead Of HDMI calbes are connected between TX and RX Extender.
Support video output: 24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Support CEC
Audio format support: DTS-HD/-trueHD/LPCM7.1/DTS/AC3/DSD
LED indication: When power is supplied or device is working, LED relative to is light.
Support up to 20metres AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/2A power supply

SPECIFICATION
60mHDMICAT6_0101A & HDMICAT6_0101B
HDMI version	HDMI1.3 for CAT6/CAT5E/CAT7.
HDCP version	HDCP1.2
Support HDMI resolution 1080p24fs/1080P/1080i/720P/576P/576i/480P/480i
Support video color format 24bit(CAT6), 36bit deep color (CAT7)
Support audio format	DTS-HD/dobby-true-HD/LPCM7.1/AC3/DTS/DSD
Data transfer speed	5.1Gbps(CAT6/CAT5E), 10.2Gbps(CAT7)
Input Video signal	5.0Volts P-P
CAT6 cable distance	≤ 60m for Full-HD 1080p HDMI transmit support
≤ 100m for 720p/1080i HDMI transmit support
Max working current	1200mA
Power adapter supply	5v DC
Power adapter format	Input AC 100-240v; Output DC 5v.
Operating Temperature range	(-15 to +55)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension(LXWXH)	83x46x23(mm)
Weight	150gx2
