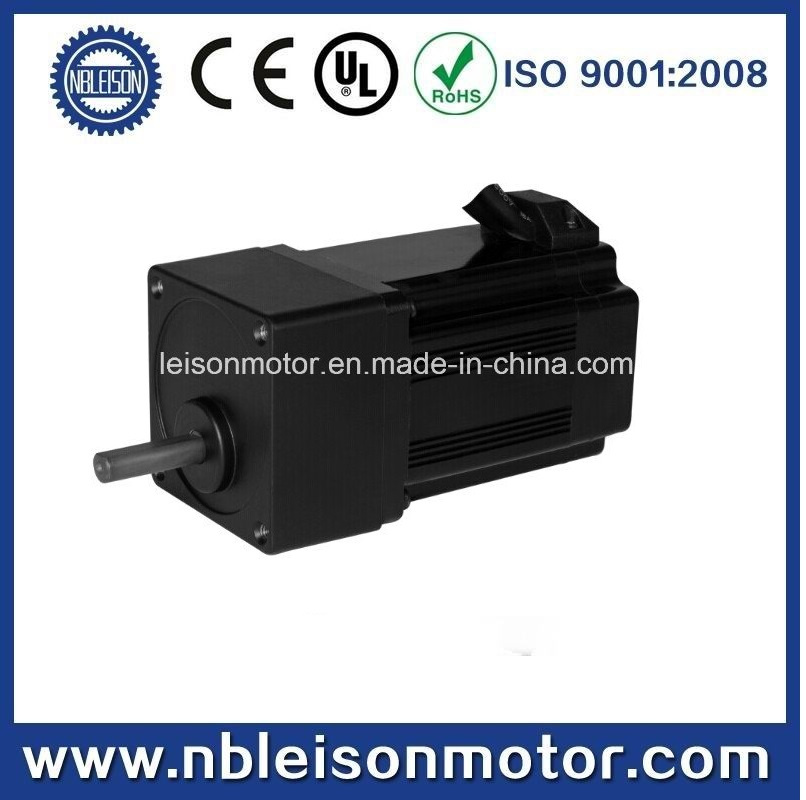

60mm 24V DC Brushless Gear Motor

Name: 60mm 24V DC Brushless Gear Motor
Brand: all-electronics-online.com
SKU: 743249075
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 40-65/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	24BL-BG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Diameter:	60mm
Voltage:	12V,24V
Speed:	10-1500rpm
Power:	40W,80W,120W
Structure And Working Principle:	Brushless
Operating Speed:	Constant Speed
Application:	Universal
Brand:	Leison Motor

Product Description

Dc brushless gear motor:

We have brushless DC gear motor with following information

1) Voltage: 12V, 24V(36V, 48V, 110V, 310V)
2) Output power: 1W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 60W, 100W, 150W, 200W, 250W, 300W, 500W, 600W, 1000W)
3) Speed: 10-1500rpm
4) Rated torque: 0.1-60 N. M
5) Motor Dia: 28mm, 33mm, 36mm, 42mm, 57mm, 60mm, 80mm, 86m, 110mm, 130mm
6) Lenth: 26mm-165mm
7) Can with driver

8) Note: Technical datasheet and Price range are only for reference, It's decide by the motor's torque, Body length and so on, Please contact with me ask for the excat price

Weclome your inquiry about more details!

Motor Model	24BL20201230	24BL40202530	24BL60203730
Rated Voltage(VDC)	24	24	24
Rated Speed(Rpm)	3000	3000	3000
Rated Torque(N.m)	0.125	0.25	0.375
Rated Power(W)	39	78	117
L1 Length(mm)	75.5	95.5	115.5

*Note: We can manufacture products according to customer's requirements.
Gearbox Electrical Specifications

Reduction Ratio	2.5	5	10	12.5	15	20	30	50
Reducer Series	2	2	2	2	2	3	3	3
L2 Length(mm)	32	32	32	32	32	42	42	42

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
