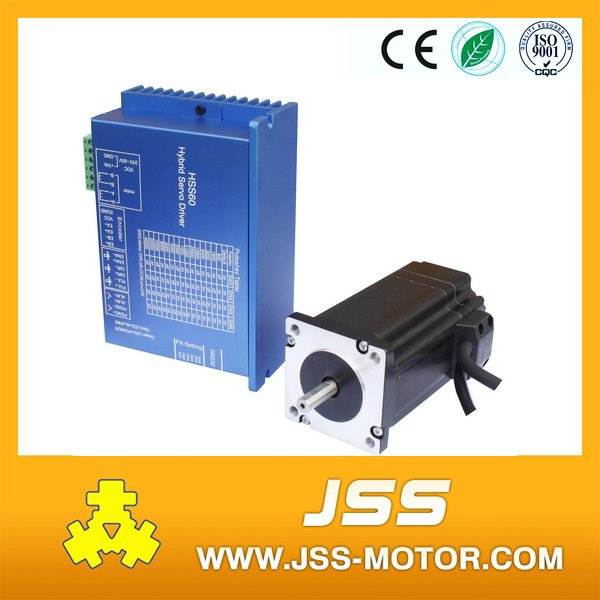

60mm Easy Servo Closed Loop Stepper Motor

Name: 60mm Easy Servo Closed Loop Stepper Motor
Brand: all-electronics-online.com
SKU: 811552615
Availability: InStock
Rating: 4.5 (87 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60HSE3N-D25
Step Angle:	1.8
Frame Size:	60*88
Current:	5.0A
Resistance:	0.45Ω
Inductance:	1.8mh
Holding Torque:	3.0 N.M
Motor Body Length:	88mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Driver
Certification:	Ce
Brand:	Jss

Product Description

Nema 24 closed loop stepper motor:
Features:
1. Higher speed than open loop stepper motor
2. Higher torque at high speed than open loop stepper motor.
3. More accuracy than open loop stepper motor, avoid the problem losing steps.
4. Low cost, better performance.

Description:

Step Angle  Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength:  500VAC for one minute
Shaft Radial Play:  0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)
Encoder lines: 1000 lines

All kinds closed loop stepper motor

Model	Step angle	Current	Resistance	Inductance	Holding torque	Motor length	Total length	Suitable driver	Encoder resolution
42HSE05N-D24	1.8	1.5A	2.8±10%Ω	5.5±20%mH	0.55N.m	48mm	63mm	HSS42	2500ppr
57HSE2N-D25	1.8°	4.2A	0.5±10%Ω	1.8±20%mH	2.0N.m	76mm	97mm	HSS57	1000ppr
60HSE3N-D25	1.8°	5.0A	0.45±10%Ω	1.8±20%mH	3.0N.m	88mm	109mm	HSS60	1000ppr
86HSE4N-BC38	1.8°	6.0A	0.45±10%Ω	3.7±20%mH	4.5 N.m	82mm	103mm	HSS86	1000ppr
86HSE8N-BC38	1.8°	6.0A	0.44±10%Ω	3.7±20%mH	8.0 N.m	118mm	139mm	HSS86	1000ppr
86HSE12N-BC38	1.8°	6.0A	0.45±10%Ω	5.2±20%mH	12.0 N.m	156mm	177mm	HSS86	1000ppr

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

PHOTOS FOR OUR PRODUCTS:

Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
