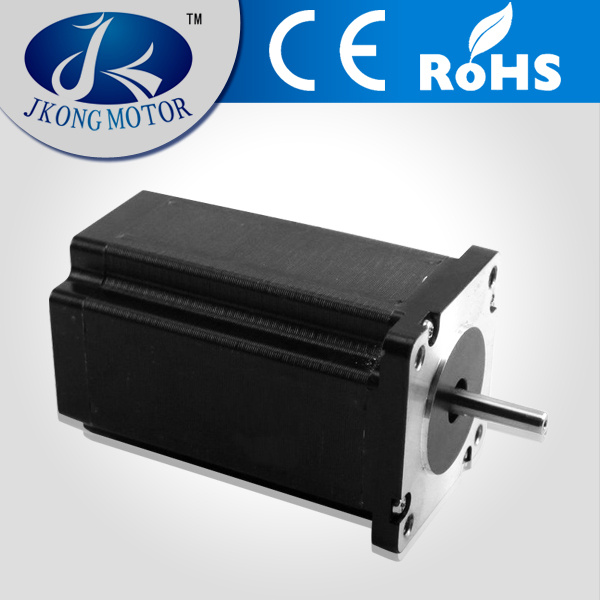

60mm NEMA 24 Stepper Motor for CNC Router Machine

Name: 60mm NEMA 24 Stepper Motor for CNC Router Machine
Brand: all-electronics-online.com
SKU: 693798725
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	US $ 10-30/Piece
Trade Terms:	CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8degree
Phase:	2 Phase
Shape:	Square
Colour:	Black
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Other
Operate Mode:	Other
Certification:	CE and RoHS

Product Description

1.8° 60mm Hybrid Stepper Motor-NEMA24
Genaral Specification:
Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 75N (20mm from the flange)
Max. Axial force------------------- 15N

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Mass
Model No.	( ° )	(L)mm	A	Ω	mH	Kg. cm	No.	g. cm	Kg
JK60H45-1408	1.8	45	1.4	3.0	8	11	8	275	0.60
JK60H56-1408	1.8	56	1.4	3.6	14.4	16.5	8	300	0.77
JK60H65-1408	1.8	65	1.4	4.8	16.5	21	8	570	1.20
JK60H88-1408	1.8	88	1.4	6.0	27.2	31	8	840	1.50

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
