| Prod Model: |
60BYGCSeries |
| Motor Series: |
60 BYGC |
| Step Angle: |
1.2 Degree |
| Shaft End Length: |
23mm (0.91 in) |
| Shaft: |
D-Cut Shaft |
| Connectors: |
Plug-in or Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Magnetic-Electric |
| Brand: |
Shengyang |
Product Description

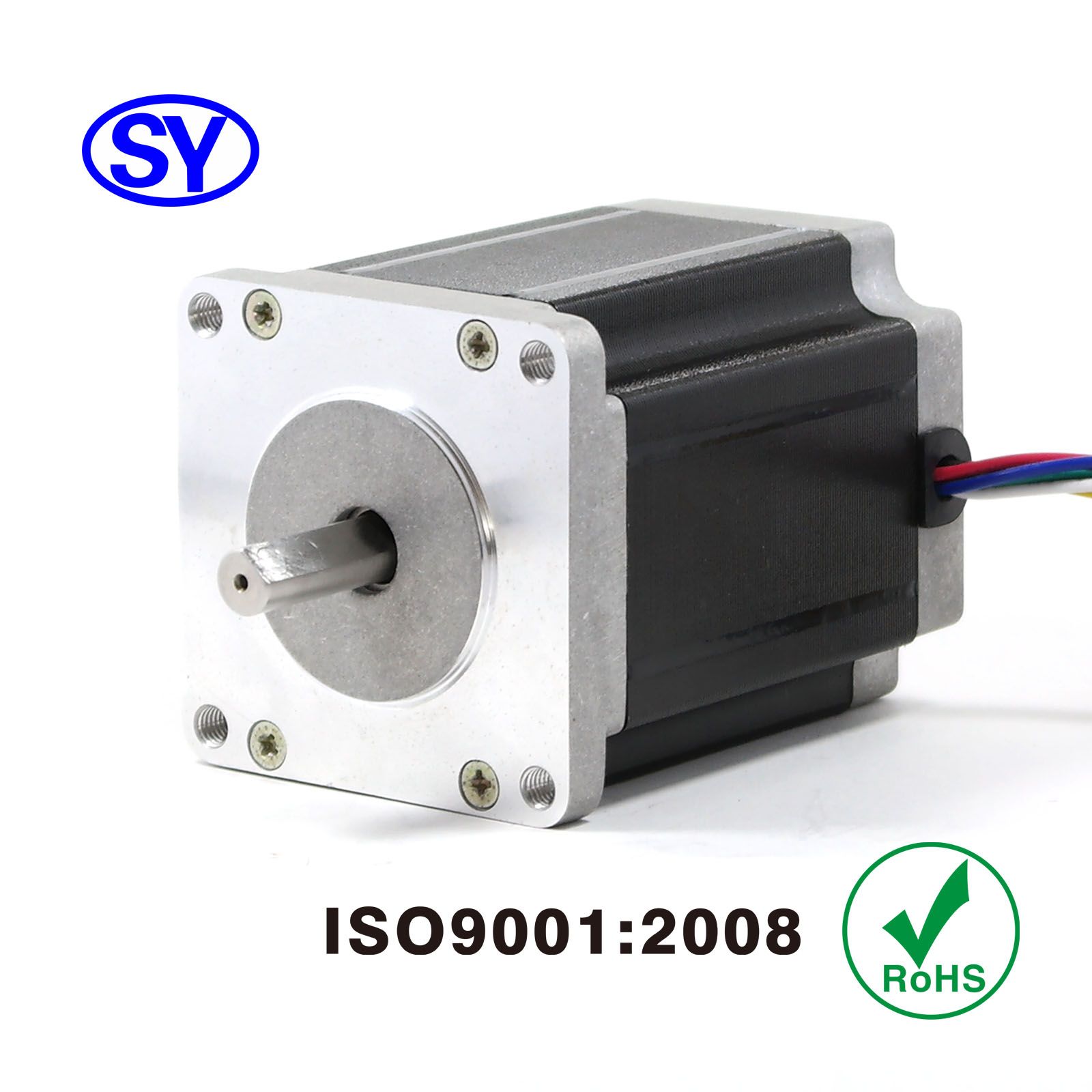

60mm Stepper Electrical Motor for 3D Printer, CNC Machine
Features
Ultra-low noise
Ultra-smooth movement
Low Vibration
Products Description
1. Specifications:
Motor Model: 60BYGC601-B-23
Shaft: D-Cut Shaft
Shaft End Length: 23mm (0.91in)
Connectors: Plug-in or Lead Wires
Step Angle: 1.2°± 5% full step, no load.
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA;
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all products can be customized, welcome to contact us for more details.
Contacts: Ms Land MO
Mobile: 0086 13425768350
Homepage: http://shengyangmotor.en.made-in-china.com
Motor Series
&
Length | Motor
Model | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | mH |
60BYGC0
30 mm
(1.18 in) | 60BYGC001 | 450 63.72 | 1.5 | 5.5 | 6 |
60BYGC1
54 mm
(2.13 in) | 60BYGC901 | 620 87.89 | 1.2 | 5.5 | 9 |
60BYGC2
54 mm
(2.13 in) | 60BYGC201 | 800 113.28 | 1.5 | 6 | 12 |
60BYG1
54 mm
(2.13 in) | 60BYG103 | 900 127.44 | 1.5 | 6.8 | 11 |
60BYGC3
58 mm
(2.28 in) | 60BYGC301 | 1080 152.93 | 1.5 | 6.4 | 14 |
60BYGC4
49 mm
(1.93 in) | 60BYGC404 | 780 110.45 | 1.5 | 5 | 9 |
60BYGC5
76 mm
(2.99 in) | 60BYGC501 | 1550 219.48 | 1.5 | 5.5 | 10.7 |
60BYGC6
79mm
(3.11 in) | 60BYGC601 | 1500 212.40 | 5.8\3.0 | 1.05\2.1 | 2.4\6.8 |
60BYGC7
30 mm
(1.18 in) | 60BYGC701 | 530 75.05 | 2 | 4.3 | 6
|
More details or any new inquiry, welcome to contact us.
